F679571 Hydraulic Hose Specifications

Forestry Machine · John Deere · 1510G Forwarder

Total length1,100 mm

Hose drawing

Hose assembly drawing

Check the total length and both fitting codes before fabrication.

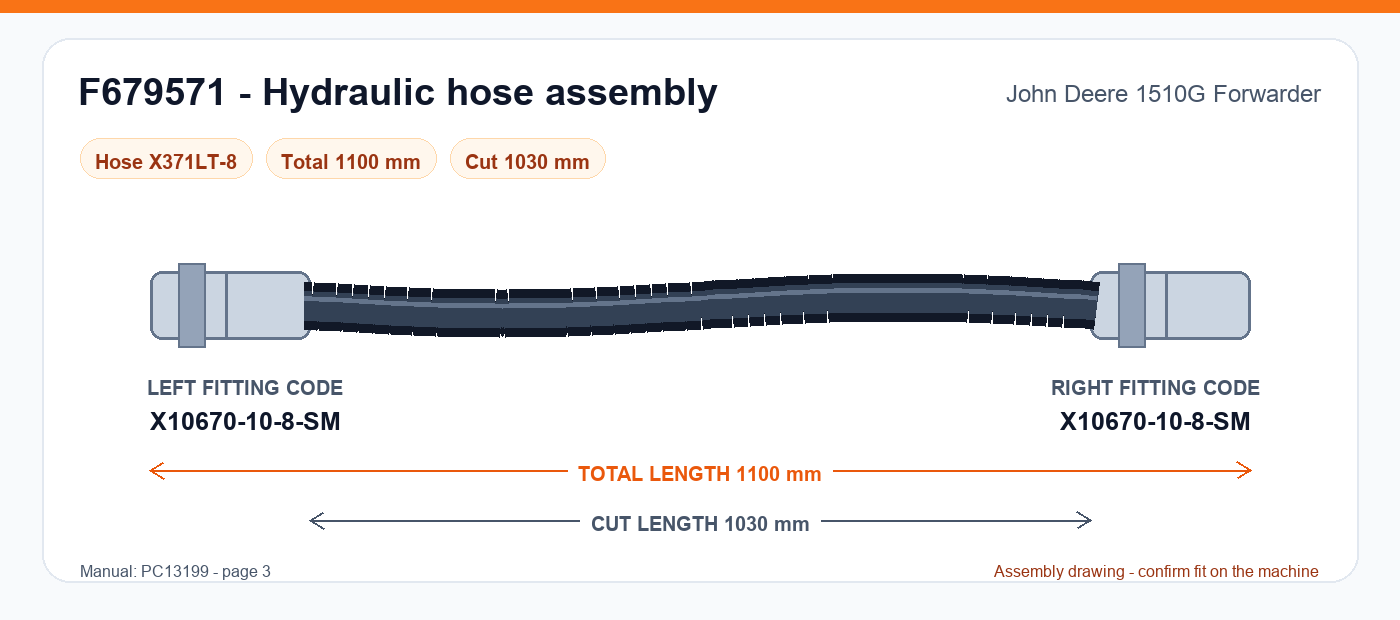

F679571 hydraulic hose assembly drawing for John Deere 1510G Forwarder - 1,100 mm total length, left fitting X10670-10-8-SM, right fitting X10670-10-8-SM — F679571 - 1,100 mm total length. Select the drawing to open it full size.

Repair measurements

These text values can be translated and copied. Confirm them against the machine before fabrication.

Machine: John Deere 1510G Forwarder
Part number: F679571
Hose type: X371LT-8
Total length: 1,100 mm
Cut length: 1,030 mm
Left-end hydraulic fitting code: X10670-10-8-SMJIC 37° female swivel straight · 7/8-14 UNF · 1/2 inch / DN12 hoseSee fitting details
Right-end hydraulic fitting code: X10670-10-8-SMJIC 37° female swivel straight · 7/8-14 UNF · 1/2 inch / DN12 hoseSee fitting details
Manual reference: PC13199, page 3

Hose assembly details

Part number: F679571
Hose type: X371LT-8
Total length: 1,100 mm
Cut length: 1,030 mm
Left fitting code: X10670-10-8-SM
Right fitting code: X10670-10-8-SM
Application: 1510G Forwarder: Final Tier 4, Fixed Cabin
Manual page: 3

Download manual

Same machine

More hoses for this machine

Manual page 4

F730113

Application: 1510G Forwarder: Final Tier 4, Fixed Cabin

Length: 1,195 mm
Cut length: 1,114 mm
Specification: X462TC-6
Left fitting: X13V48-8-6
Right fitting: X10648-8-6

View hose specifications

Manual page 2

F070368

Application: 1510G Forwarder: Final Tier 4, Fixed Cabin

Length: 870 mm
Cut length: 796 mm
Specification: X461LT-6
Left fitting: X13V46-8-6
Right fitting: X10646-6-6

View hose specifications

Manual page 2

F065973

Application: 1510G Forwarder: Final Tier 4, Fixed Cabin

Length: 550 mm
Cut length: 492 mm
Specification: X461LT-6
Left fitting: X13946-6-6
Right fitting: X10646-6-6

View hose specifications

Manual page 1

F056626

Application: 1510G Forwarder: Final Tier 4, Fixed Cabin

Length: 1,230 mm
Cut length: 1,135 mm
Specification: X461LT-12
Left fitting: X13946-12-12
Right fitting: X10646-12-12

View hose specifications

Manual page 3

F716834

Application: 1510G Forwarder: Final Tier 4, Fixed Cabin

Length: 3,250 mm
Cut length: 3,171 mm
Specification: X787TC-12
Left fitting: X10377-12-12
Right fitting: X10677-10-12

View hose specifications

Manual page 3

F688553

Application: 1510G Forwarder: Final Tier 4, Fixed Cabin

Length: 4,000 mm
Cut length: 3,920 mm
Specification: X2040N-04V04-P
Left fitting: X10655-4-4
Right fitting: X10655-4-4

View hose specifications

Manual page 3

F729221

Application: 1510G Forwarder: Final Tier 4, Fixed Cabin

Length: 830 mm
Cut length: 663 mm
Specification: X462TC-8
Left fitting: X13948-8-8
Right fitting: X10648-8-8

View hose specifications

Manual page 2

F076428

Application: 1510G Forwarder: Final Tier 4, Fixed Cabin

Length: 510 mm
Cut length: 449 mm
Specification: X461LT-6
Left fitting: X13946-6-6
Right fitting: X16846-8-6

View hose specifications

For reference only. Confirm the actual hose before fabrication.
