Individual hose record
5W-4905 Hose Repair Specifications
Excavator · Caterpillar · CAT®205 · Swivel Joint
Finished length740 mm
Locate this hose

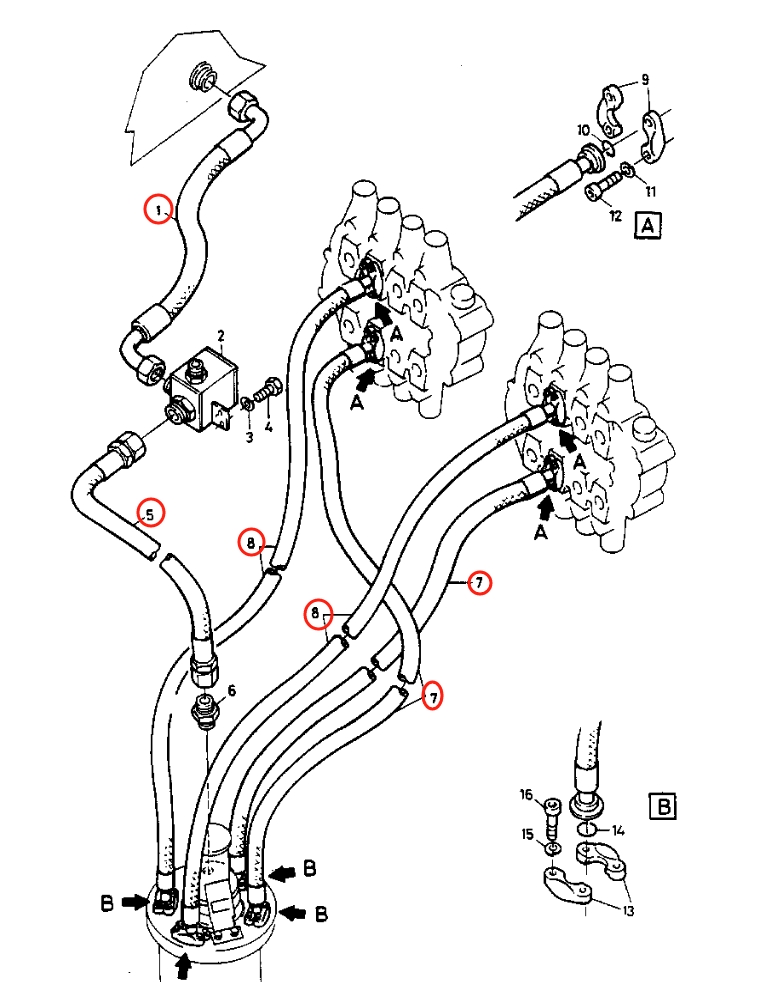

Installation diagram — Pipe No. 7
Locate Pipe No. 7 in the diagram, then confirm part number 5W-4905 before removing the hose.
Repair specifications
- Part number
- 5W-4905
- Diagram pipe number
- 7
- Installation route
- 回转接头~左分配阀
- Hose specification
- DN16;6SH-10;42Mpa
- Finished length
- 740 mm
- Working pressure
- 42 MPa
- Left fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Right fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Quantity
- 1
Same system
Related Hoses
- Length
- 740 mm
- Specification
- DN16;6SH-10;42Mpa
- Left fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Right fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Length
- 840 mm
- Specification
- DN16;6SH-10;42Mpa
- Left fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
- Right fitting
- Heavy-series flangeOriginal Chinese: 法兰-重型
Workshop guide
Finding the correct hydraulic hose for Caterpillar CAT®205 Swivel Joint
Start with the machine and route
For Caterpillar CAT®205 Swivel Joint, identify the exact model and hydraulic system on the machine first. A part number or diagram pipe number is the fastest way to narrow a replacement hose; if neither is visible, compare the installation route and the existing hose.
Read the dimensions before cutting
Check whether a listed dimension is finished assembly length, hose-only length, or cut length. These are not interchangeable. Confirm hose specification and pressure rating, then compare both ends separately: thread, sealing seat, size, angle, and orientation.
Records to compare
- 5W-4905740 mm · DN16;6SH-10;42Mpa · 回转接头~左分配阀
Use the drawing as a location check
Where an installation drawing or manual figure is available, match its callout to the part number and physical route. A hydraulic circuit diagram explains connections but does not show the exact routing of a hose on the machine. Take the old hose or clear end-fitting photographs to the workshop if any dimension is missing.
For reference only. Confirm the actual hose before fabrication.
