Individual hose record

7I-8252 Hose Repair Specifications

Excavator · Caterpillar · CAT®316F · Control Lever

Finished length2,350 mm

Locate this hose

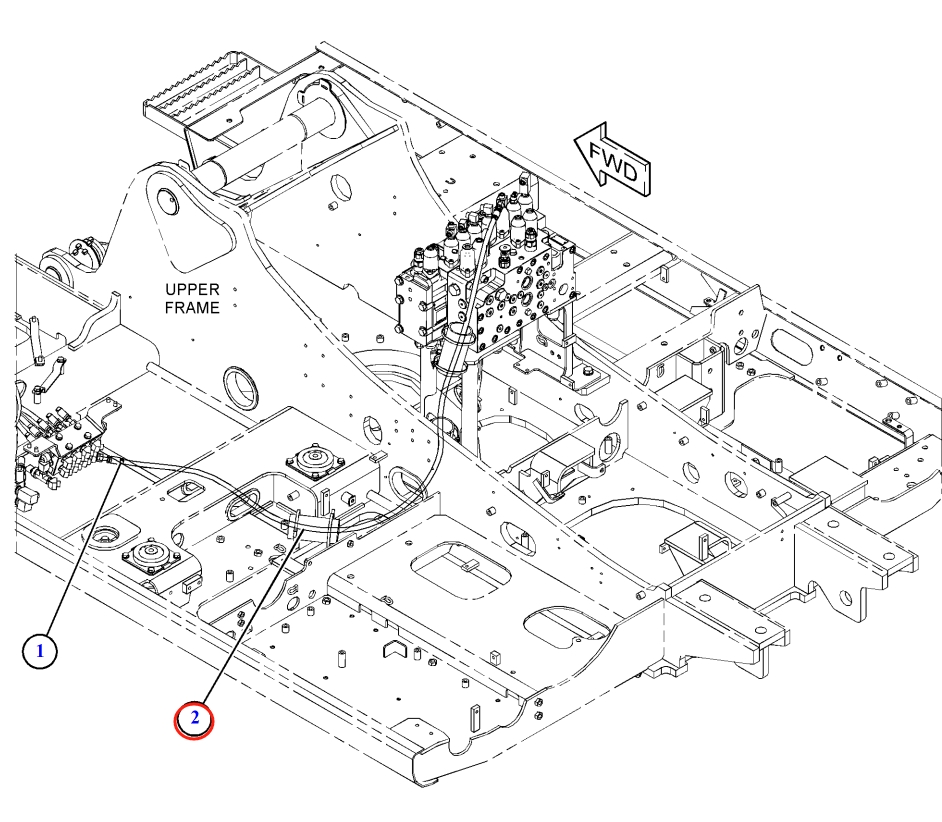

Installation diagram — Pipe No. 2

Locate Pipe No. 2 in the diagram, then confirm part number 7I-8252 before removing the hose.

Caterpillar CAT®316F installation diagram showing hydraulic hose 7I-8252 at Pipe No. 2
Caterpillar CAT®316FPart 7I-8252 · Pipe No. 2Open full-size diagram

Repair specifications

Part number
7I-8252
Diagram pipe number
2
Installation route
Intermediate adapter → control valveOriginal Chinese: 中转接头~分配阀
Hose specification
DN10;-6;10.3Mpa
Finished length
2,350 mm
Working pressure
10.3 MPa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity
1

Same system

Related Hoses

Diagram Pipe No. 12

104-8771

Installation route: 中转接头~分配阀上

Length
2,430 mm
Specification
DN10;1SN-6;10.4Mpa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
View full repair specifications

Diagram Pipe No. 2

319-9976

Installation route: Intermediate adapter → control valveOriginal Chinese: 中转接头~分配阀

Length
2,000 mm
Specification
DN10;-6;10.3Mpa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
View full repair specifications

Optional cross-check

Ask an AI search tool to check this repair data

The question is already written for this machine or hose. Use a tool with web search enabled; treat its answer as a starting point and verify on the machine.

ChatGPT Perplexity Claude Google AI Mode
See the exact question being sent
I am checking hydraulic hose repair information for "7I-8252 Hose Repair Specifications". Use web search and cite a source for every factual point. Compare this HoseSeek page with manufacturer manuals and reliable parts documentation: https://www.hoseseek.com/hoses/hose_61a5428770f505bd75036dd8/
HoseSeek currently shows: part number: 7I-8252; diagram pipe number: 2; installation route: Intermediate adapter → control valve; hose specification: DN10;-6;10.3Mpa; finished length in millimetres: 2350; left fitting: American female thread, flat-face seal; right fitting: American female thread, flat-face seal.

Verify, where applicable:
1. Exact machine model and any serial-number range.
2. Hydraulic system and installation route.
3. Hose part number and diagram pipe number.
4. Finished length, hose specification, and pressure rating.
5. Both end fittings, including thread, sealing seat, size, and angle.
6. Installation-diagram position and routing.

State explicitly what you could not verify. Do not infer a missing dimension or fitting. End with a short on-machine checklist for a hose repair technician.

For reference only. Confirm the actual hose before fabrication.
