Individual hose record

319-9976 Hose Repair Specifications

Excavator · Caterpillar · CAT®316F · Control Lever

Finished length2,000 mm

Locate this hose

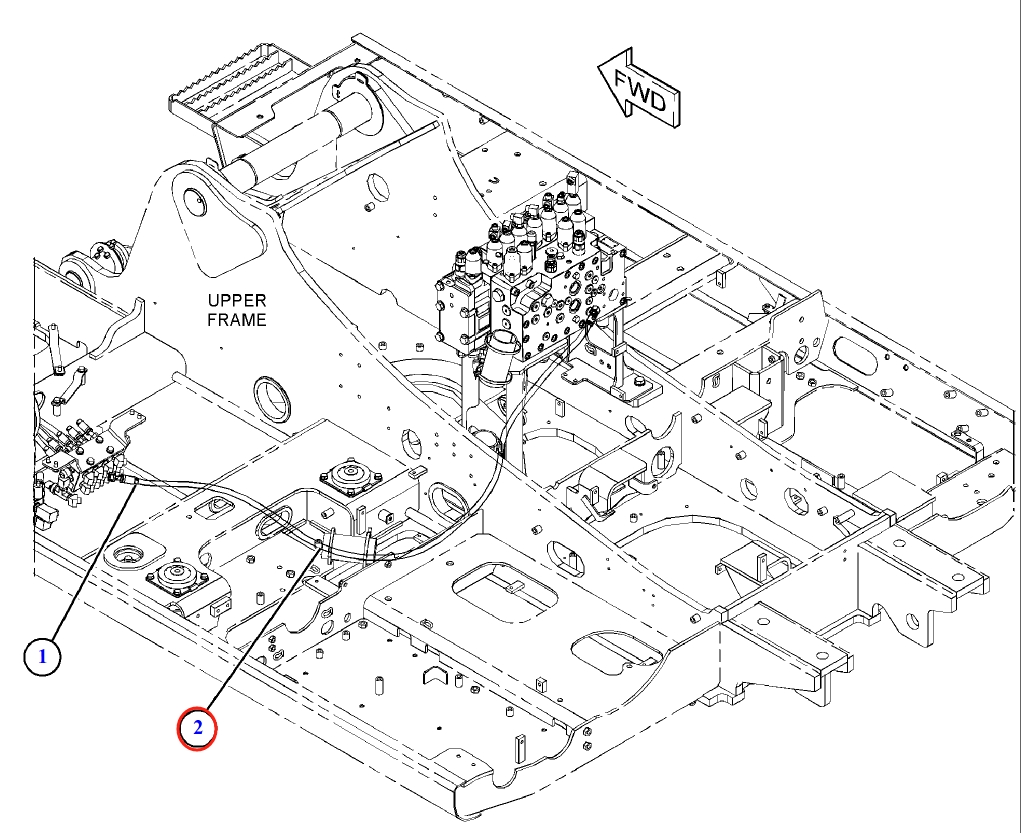

Installation diagram — Pipe No. 2

Locate Pipe No. 2 in the diagram, then confirm part number 319-9976 before removing the hose.

Caterpillar CAT®316F installation diagram showing hydraulic hose 319-9976 at Pipe No. 2
Caterpillar CAT®316FPart 319-9976 · Pipe No. 2Open full-size diagram

Repair specifications

Part number
319-9976
Diagram pipe number
2
Installation route
Intermediate adapter → control valveOriginal Chinese: 中转接头~分配阀
Hose specification
DN10;-6;10.3Mpa
Finished length
2,000 mm
Working pressure
10.3 MPa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity
1
