Individual hose record
4262277 Hose Repair Specifications
Excavator · Hitachi · EX700 · Attachments – Breaker
Finished length1,700 mm
Locate this hose

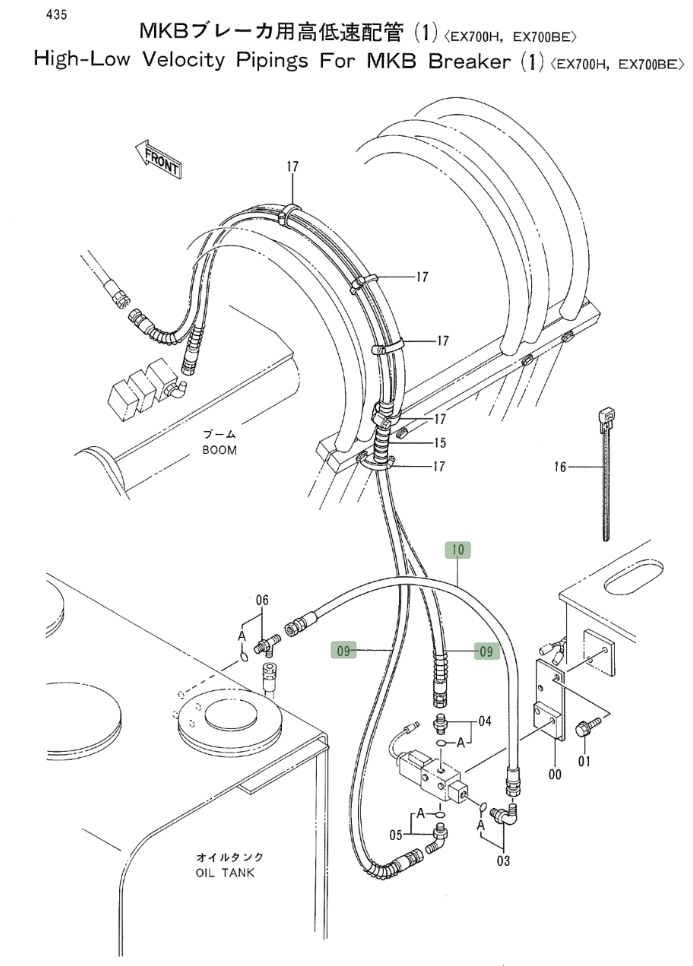

Installation diagram — Pipe No. 10
Locate Pipe No. 10 in the diagram, then confirm part number 4262277 before removing the hose.
Repair specifications
- Part number
- 4262277
- Diagram pipe number
- 10
- Installation route
- 液压油箱~电磁阀(破碎器)
- Hose specification
- DN6;1SN-04;7MPa
- Finished length
- 1,700 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 美制内螺纹37°内锥
- Quantity
- 1
Same system
Related Hoses
- Length
- 1,900 mm
- Specification
- DN6;2层纤维-4;14MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
- Length
- 2,400 mm
- Specification
- DN10;1SN-6;7MPa
- Left fitting
- 90°美制内螺纹37°内锥
- Right fitting
- 美制外螺纹37°外锥
- Length
- 1,200 mm
- Specification
- DN10;1层纤维-6;14MPa
- Left fitting
- 美制内螺纹37°内锥
- Right fitting
- 90°美制内螺纹37°内锥
For reference only. Confirm the actual hose before fabrication.
