Individual hose record

4210341 Hose Repair Specifications

Excavator · Hitachi · EX700 · Attachments – Breaker

Finished length1,200 mm

Locate this hose

Installation diagram — Pipe No. 1

Locate Pipe No. 1 in the diagram, then confirm part number 4210341 before removing the hose.

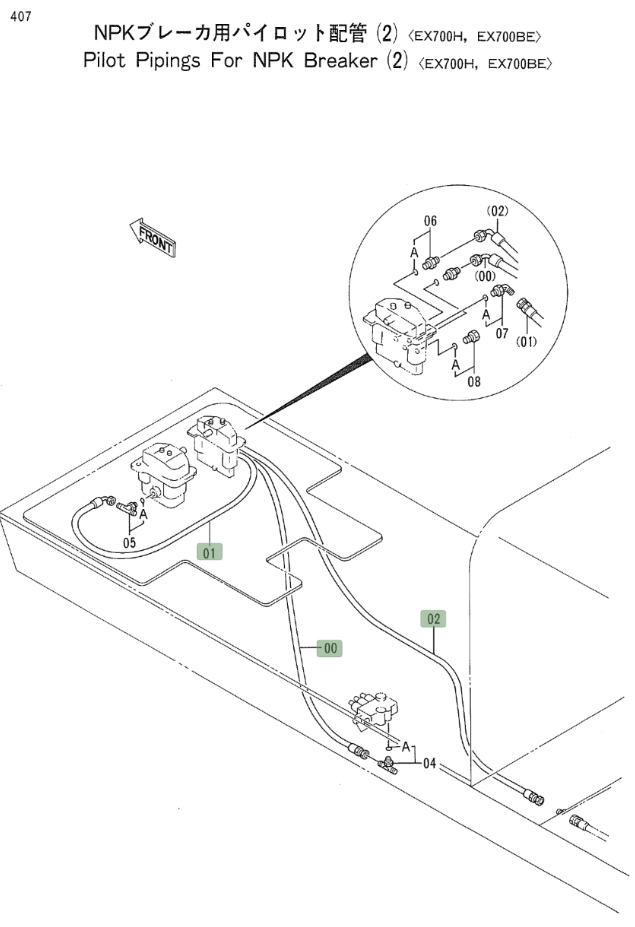

Hitachi EX700 installation diagram showing hydraulic hose 4210341 at Pipe No. 1 — Hitachi EX700Part 4210341 · Pipe No. 1Open full-size diagram

Repair specifications

Part number: 4210341
Diagram pipe number: 1
Installation route: 破碎器踏板~行走踏板
Hose specification: DN10;1层纤维-6;14MPa
Finished length: 1,200 mm
Working pressure: 14 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 0

4210340

Installation route: 破碎器踏板~进回油阀

Length: 1,350 mm
Specification: DN10;1层纤维-6;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 20

4295301

Installation route: 液压油箱~过渡阀块(隔板)

Length: 1,900 mm
Specification: DN6;2层纤维-4;14MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 90°美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 10

4262277

Installation route: 液压油箱~电磁阀(破碎器)

Length: 1,700 mm
Specification: DN6;1SN-04;7MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 16

4367363

Installation route: 过渡阀块(隔板)~过渡阀块(破碎器)

Length: 2,400 mm
Specification: DN10;1SN-6;7MPa
Left fitting: 90°美制内螺纹37°内锥
Right fitting: 美制外螺纹37°外锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
