Hose assembly specifications

F024346 Hydraulic Hose Specifications

Forestry Machine · John Deere · 1170G Wheeled Harvester 8W

Total length550 mm

Hose drawing

Hose assembly drawing

Check the total length and both fitting codes before fabrication.

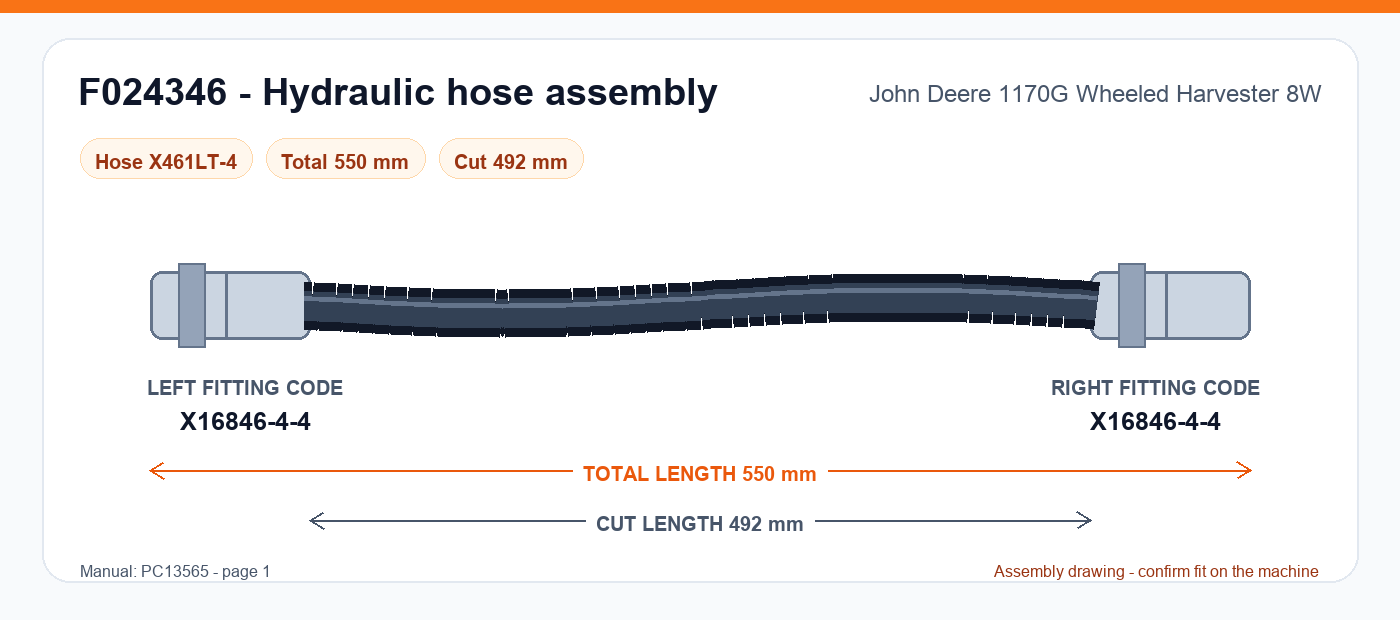

F024346 hydraulic hose assembly drawing for John Deere 1170G Wheeled Harvester 8W - 550 mm total length, left fitting X16846-4-4, right fitting X16846-4-4 — F024346 - 550 mm total length. Select the drawing to open it full size.

Repair measurements

These text values can be translated and copied. Confirm them against the machine before fabrication.

Machine: John Deere 1170G Wheeled Harvester 8W
Part number: F024346
Hose type: X461LT-4
Total length: 550 mm
Cut length: 492 mm
Left-end hydraulic fitting code: X16846-4-4Look up this code
Right-end hydraulic fitting code: X16846-4-4Look up this code
Manual reference: PC13565, page 1

Hose assembly details

Part number: F024346
Hose type: X461LT-4
Total length: 550 mm
Cut length: 492 mm
Left fitting code: X16846-4-4
Right fitting code: X16846-4-4
Application: 1170G Wheeled Harvester: 8W, Stage V / Tier 4, Rotating and Leveling Cabin Gen II
Manual page: 1

Download manual
