Hose assembly specifications

F044885 Hydraulic Hose Specifications

Forestry Machine · John Deere · 1170G Wheeled Harvester 8W

Total length400 mm

Hose drawing

Hose assembly drawing

Check the total length and both fitting codes before fabrication.

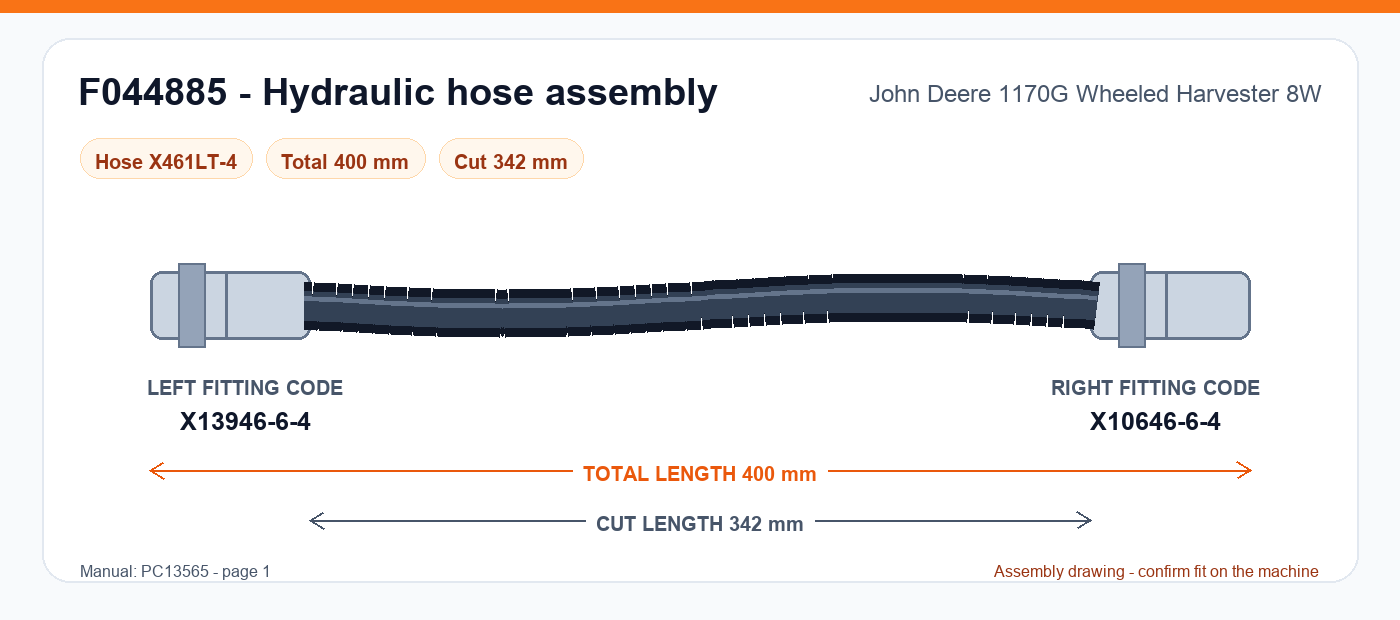

F044885 hydraulic hose assembly drawing for John Deere 1170G Wheeled Harvester 8W - 400 mm total length, left fitting X13946-6-4, right fitting X10646-6-4 — F044885 - 400 mm total length. Select the drawing to open it full size.

Repair measurements

These text values can be translated and copied. Confirm them against the machine before fabrication.

Machine: John Deere 1170G Wheeled Harvester 8W
Part number: F044885
Hose type: X461LT-4
Total length: 400 mm
Cut length: 342 mm
Left-end hydraulic fitting code: X13946-6-4Look up this code
Right-end hydraulic fitting code: X10646-6-4Look up this code
Manual reference: PC13565, page 1

Hose assembly details

Part number: F044885
Hose type: X461LT-4
Total length: 400 mm
Cut length: 342 mm
Left fitting code: X13946-6-4
Right fitting code: X10646-6-4
Application: 1170G Wheeled Harvester: 8W, Stage V / Tier 4, Rotating and Leveling Cabin Gen II
Manual page: 1

Download manual

Same machine

More hoses for this machine

Manual page 2

F072202

Application: 1170G Wheeled Harvester: 8W, Stage V / Tier 4, Rotating and Leveling Cabin Gen II

Length: 3,400 mm
Cut length: 3,340 mm
Specification: X461LT-6
Left fitting: X10646-6-6
Right fitting: X10646-6-6

View hose specifications

Manual page 3

F695545

Application: 1170G Wheeled Harvester: 8W, Stage V / Tier 4, Rotating and Leveling Cabin Gen II

Length: 2,000 mm
Cut length: 1,928 mm
Specification: X371LT-8
Left fitting: X13970-10-8-SM
Right fitting: X10670-10-8-SM

View hose specifications

Manual page 2

F066786

Application: 1170G Wheeled Harvester: 8W, Stage V / Tier 4, Rotating and Leveling Cabin Gen II

Length: 1,800 mm
Cut length: 1,702 mm
Specification: X461LT-12
Left fitting: X13746-12-12
Right fitting: X10646-12-12

View hose specifications

Manual page 1

F029262

Application: 1170G Wheeled Harvester: 8W, Stage V / Tier 4, Rotating and Leveling Cabin Gen II

Length: 3,200 mm
Cut length: 3,138 mm
Specification: X461LT-4
Left fitting: X10646-6-4
Right fitting: X10646-6-4

View hose specifications

Manual page 1

F024606

Application: 1170G Wheeled Harvester: 8W, Stage V / Tier 4, Rotating and Leveling Cabin Gen II

Length: 600 mm
Cut length: 530 mm
Specification: X371LT-8
Left fitting: X10670-10-8-SM
Right fitting: X10670-10-8-SM

View hose specifications

Manual page 1

F047947

Application: 1170G Wheeled Harvester: 8W, Stage V / Tier 4, Rotating and Leveling Cabin Gen II

Length: 450 mm
Cut length: 392 mm
Specification: X461LT-6
Left fitting: X13946-6-6
Right fitting: X10646-6-6

View hose specifications

Manual page 3

F712570

Application: 1170G Wheeled Harvester: 8W, Stage V / Tier 4, Rotating and Leveling Cabin Gen II

Length: 1,800 mm
Cut length: 1,737 mm
Specification: X461LT-6
Left fitting: X10646-6-6
Right fitting: X16846-8-6

View hose specifications

Manual page 1

F048009

Application: 1170G Wheeled Harvester: 8W, Stage V / Tier 4, Rotating and Leveling Cabin Gen II

Length: 850 mm
Cut length: 792 mm
Specification: X461LT-4
Left fitting: X13946-6-4
Right fitting: X10646-6-4

View hose specifications
