Individual hose record
449-7094 Hose Repair Specifications
Excavator · Caterpillar · CAT®312F GC · Control Valve
Finished length395 mm
Locate this hose

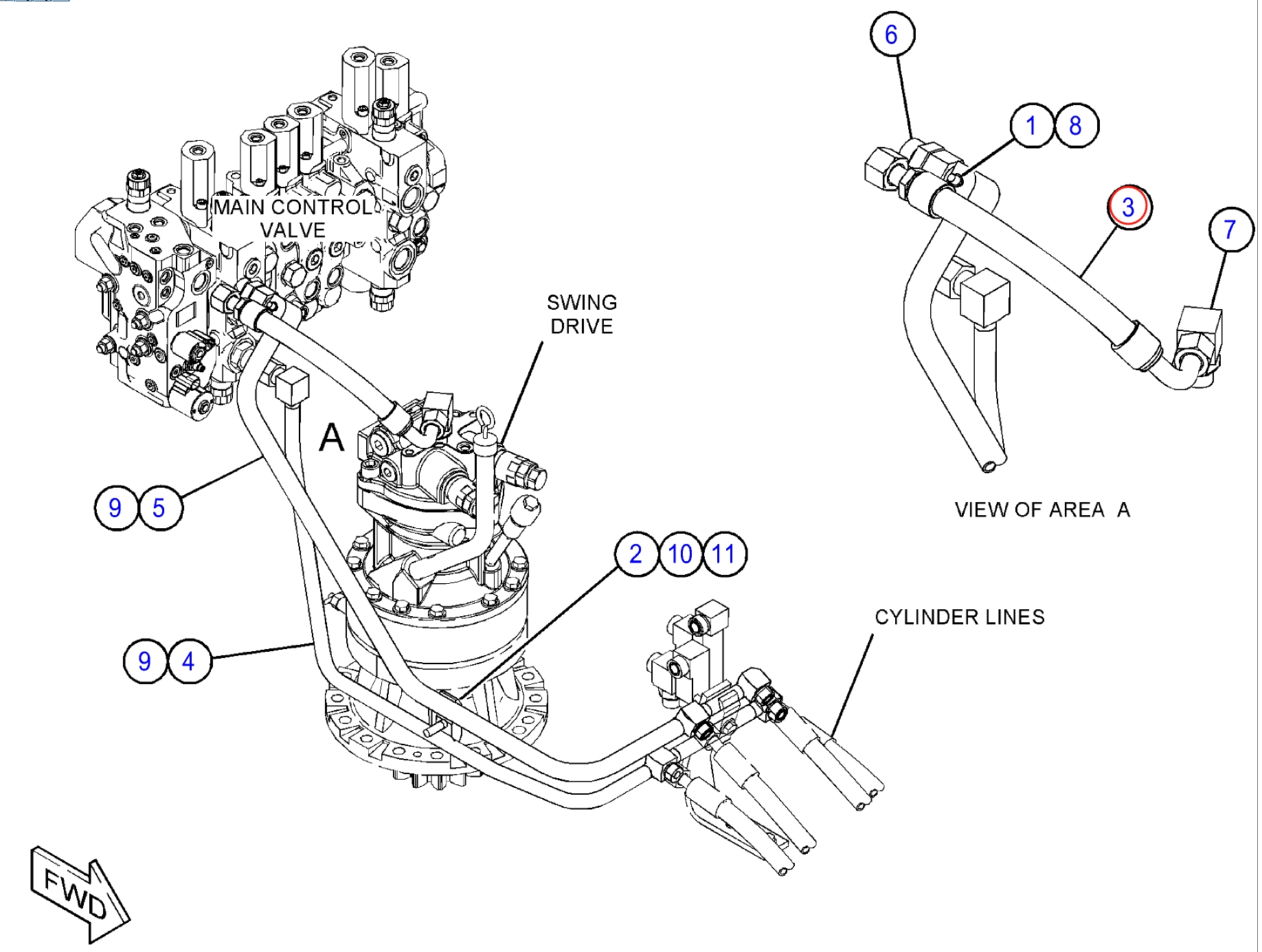

Installation diagram — Pipe No. 3
Locate Pipe No. 3 in the diagram, then confirm part number 449-7094 before removing the hose.
Repair specifications
- Part number
- 449-7094
- Diagram pipe number
- 3
- Installation route
- 分配阀前右~回转马达
- Hose specification
- DN19;1SN-12;8.7Mpa
- Finished length
- 395 mm
- Working pressure
- 8.7 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Quantity
- 1
Same system
Related Hoses
For reference only. Confirm the actual hose before fabrication.
