Individual hose record
4I-5933 Hose Repair Specifications
Excavator · Caterpillar · CAT®312F GC · Control Valve
Finished length1,600 mm
Locate this hose

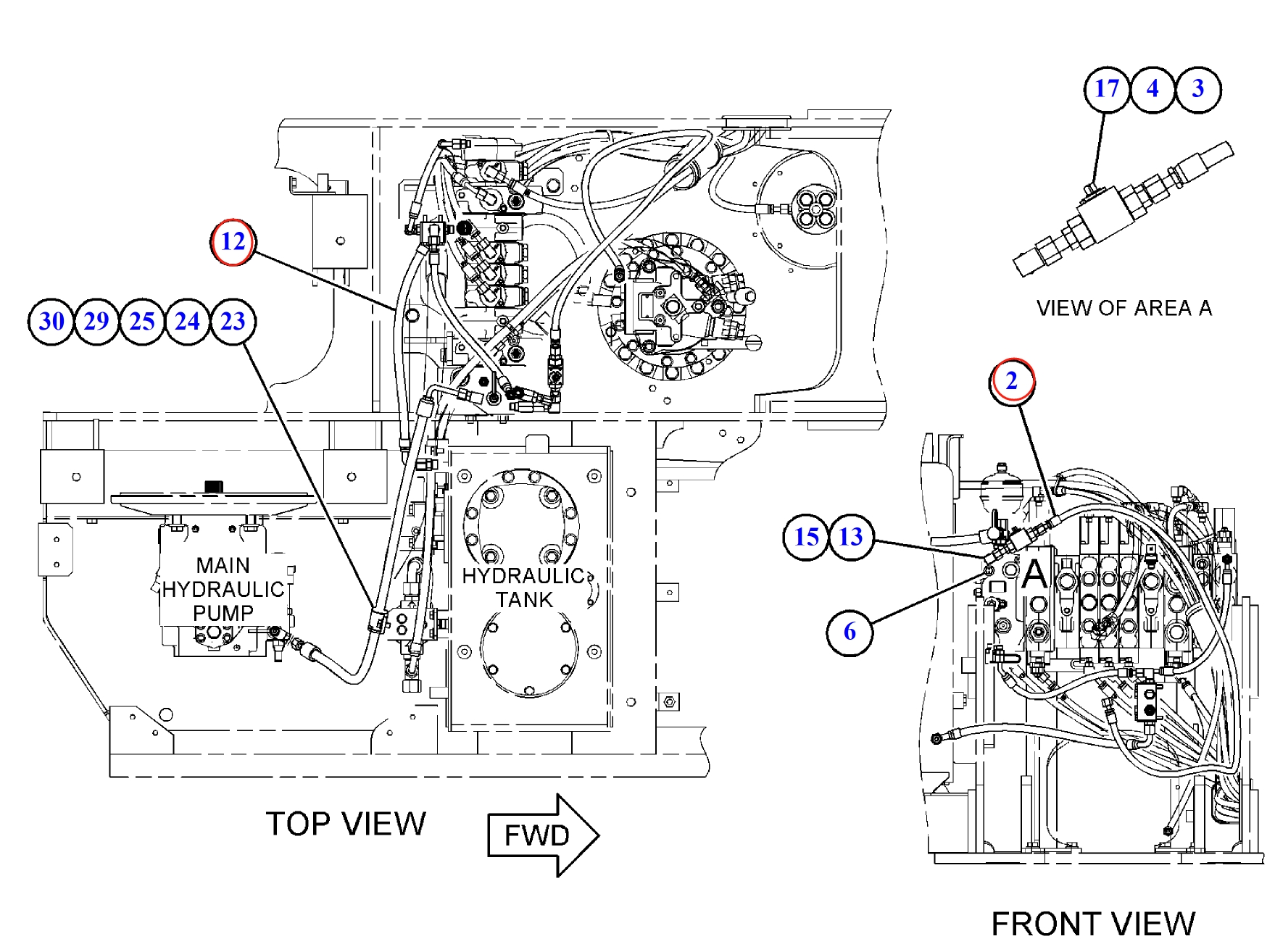

Installation diagram — Pipe No. 2
Locate Pipe No. 2 in the diagram, then confirm part number 4I-5933 before removing the hose.
Repair specifications
- Part number
- 4I-5933
- Diagram pipe number
- 2
- Installation route
- 分配阀前右~回转马达
- Hose specification
- DN10;-6;10.3Mpa
- Finished length
- 1,600 mm
- Working pressure
- 10.3 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
