Individual hose record
5W-7098 Hose Repair Specifications
Excavator · Caterpillar · CAT®205 · Attachments – Breaker
Finished length2,350 mm
Locate this hose

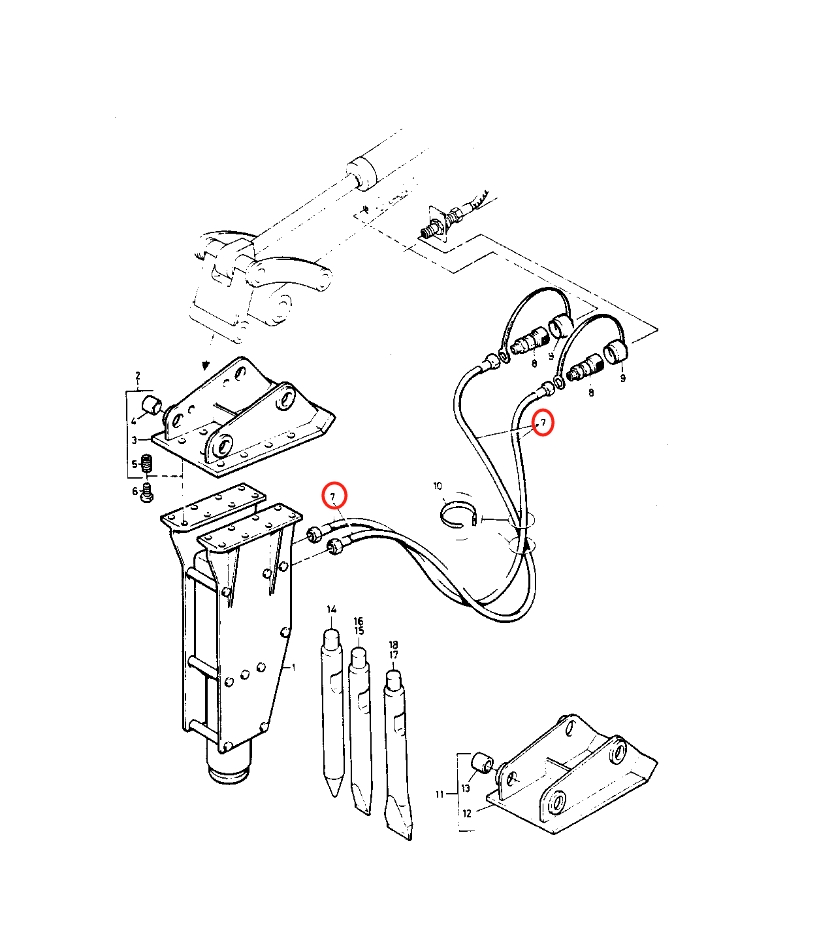

Installation diagram — Pipe No. 7
Locate Pipe No. 7 in the diagram, then confirm part number 5W-7098 before removing the hose.
Repair specifications
- Part number
- 5W-7098
- Diagram pipe number
- 7
- Installation route
- 大臂(破碎器)~破碎器
- Hose specification
- DN19;4SP-12;35Mpa
- Finished length
- 2,350 mm
- Working pressure
- 35 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-重型
- Right fitting
- 公制内螺纹24°锥带O形圈-重型
- Quantity
- 2
Same system
Related Hoses
- Length
- 2,350 mm
- Specification
- DN25;4SP-16;28Mpa
- Left fitting
- 公制内螺纹24°锥带O形圈-重型
- Right fitting
- 公制内螺纹24°锥带O形圈-重型
- Length
- 2,310 mm
- Specification
- DN32;2SN-20;12.5Mpa
- Left fitting
- 公制内螺纹24°锥带O形圈-重型
- Right fitting
- 公制内螺纹24°锥带O形圈-轻型
Workshop guide
Finding the correct hydraulic hose for Caterpillar CAT®205 Attachments – Breaker
Start with the machine and route
For Caterpillar CAT®205 Attachments – Breaker, identify the exact model and hydraulic system on the machine first. A part number or diagram pipe number is the fastest way to narrow a replacement hose; if neither is visible, compare the installation route and the existing hose.
Read the dimensions before cutting
Check whether a listed dimension is finished assembly length, hose-only length, or cut length. These are not interchangeable. Confirm hose specification and pressure rating, then compare both ends separately: thread, sealing seat, size, angle, and orientation.
Records to compare
- 5W-70982,350 mm · DN19;4SP-12;35Mpa · 大臂(破碎器)~破碎器
Use the drawing as a location check
Where an installation drawing or manual figure is available, match its callout to the part number and physical route. A hydraulic circuit diagram explains connections but does not show the exact routing of a hose on the machine. Take the old hose or clear end-fitting photographs to the workshop if any dimension is missing.
For reference only. Confirm the actual hose before fabrication.
