8V-8128 Hose Repair Specifications

Excavator · Caterpillar · CAT®245B · Attachments – Lock Valve

Finished length1,290 mm

Locate this hose

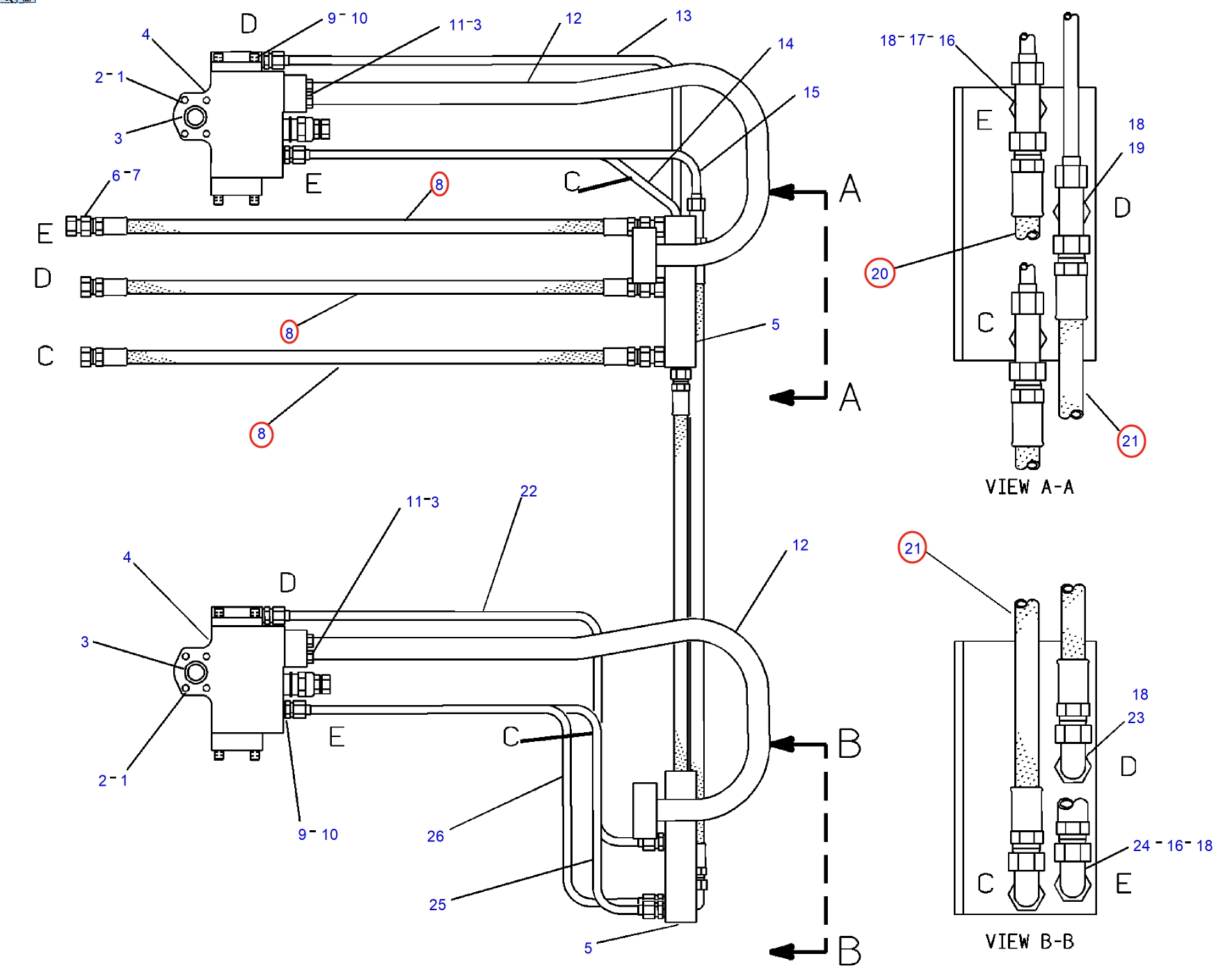

Installation diagram — Pipe No. 8

Locate Pipe No. 8 in the diagram, then confirm part number 8V-8128 before removing the hose.

Caterpillar CAT®245B installation diagram showing hydraulic hose 8V-8128 at Pipe No. 8 — Caterpillar CAT®245BPart 8V-8128 · Pipe No. 8Open full-size diagram

Repair specifications

Part number: 8V-8128
Diagram pipe number: 8
Installation route: 小臂油缸锁止阀
Hose specification: DN10;2SN-6;33Mpa
Finished length: 1,290 mm
Working pressure: 33 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 3

Same system

Related Hoses

Diagram Pipe No. 13

8V-8233

Installation route: 过渡阀块(分配阀前下)~过渡阀块(大臂下)

Length: 2,210 mm
Specification: DN10;2SN-6;33Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 8

8V-8128

Installation route: 大臂油缸锁止阀~接线板(大臂下)

Length: 1,290 mm
Specification: DN10;2SN-6;33Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 8

6S-4825

Installation route: 过渡阀块(分配阀前左)~过渡阀块(大臂下)

Length: 655 mm
Specification: DN13;4SP-8;28Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
