Individual hose record

6S-4825 Hose Repair Specifications

Excavator · Caterpillar · CAT®245B · Attachments – Lock Valve

Finished length655 mm

Locate this hose

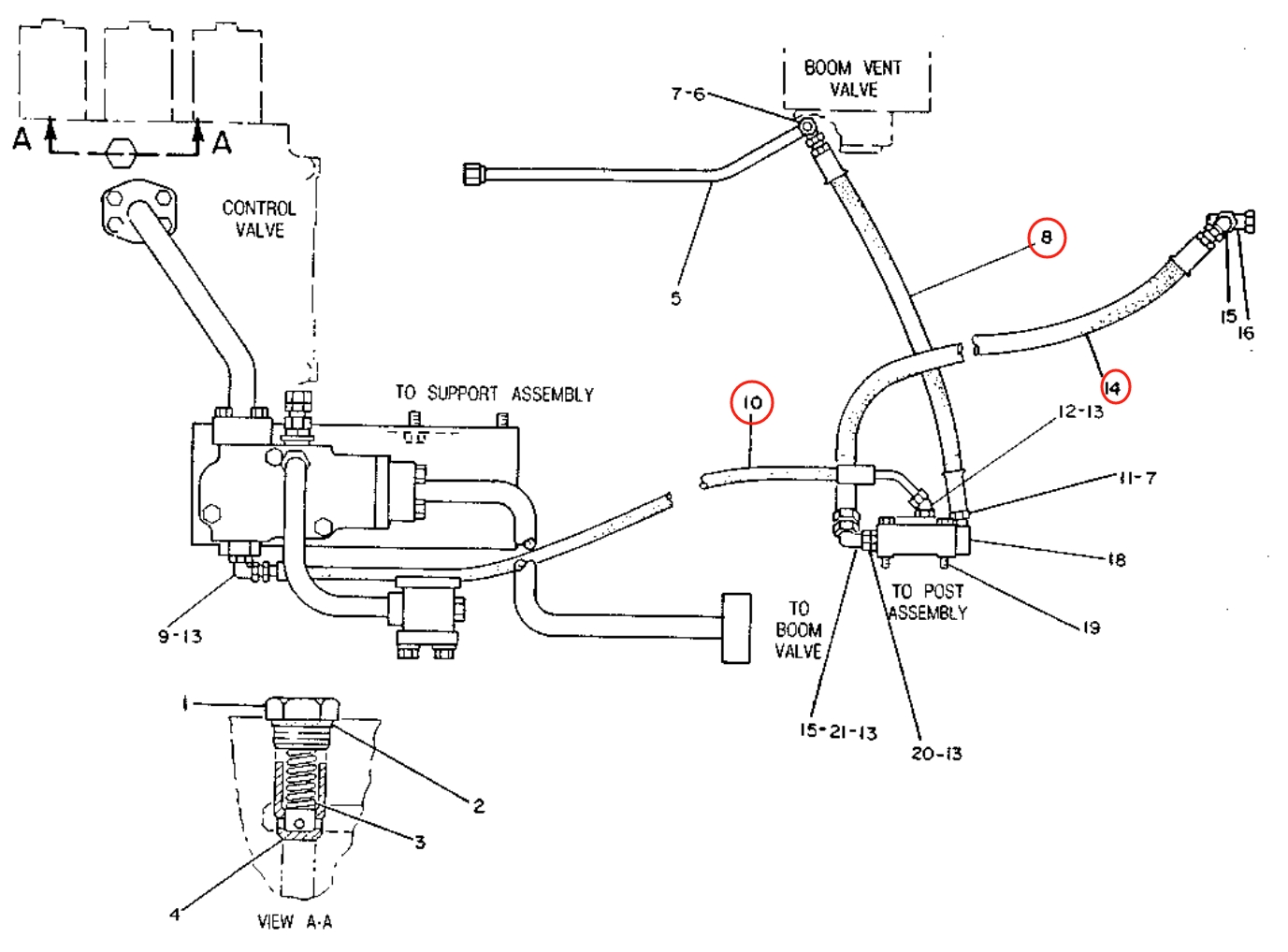

Installation diagram — Pipe No. 8

Locate Pipe No. 8 in the diagram, then confirm part number 6S-4825 before removing the hose.

Caterpillar CAT®245B installation diagram showing hydraulic hose 6S-4825 at Pipe No. 8 — Caterpillar CAT®245BPart 6S-4825 · Pipe No. 8Open full-size diagram

Repair specifications

Part number: 6S-4825
Diagram pipe number: 8
Installation route: 过渡阀块(分配阀前左)~过渡阀块(大臂下)
Hose specification: DN13;4SP-8;28Mpa
Finished length: 655 mm
Working pressure: 28 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 8

8V-8128

Installation route: 小臂油缸锁止阀

Length: 1,290 mm
Specification: DN10;2SN-6;33Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 13

8V-8233

Installation route: 过渡阀块(分配阀前下)~过渡阀块(大臂下)

Length: 2,210 mm
Specification: DN10;2SN-6;33Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 8

8V-8128

Installation route: 大臂油缸锁止阀~接线板(大臂下)

Length: 1,290 mm
Specification: DN10;2SN-6;33Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
