F039942 Hydraulic Hose Specifications

Forestry Machine · John Deere · 1270G Wheeled Harvester

Total length800 mm

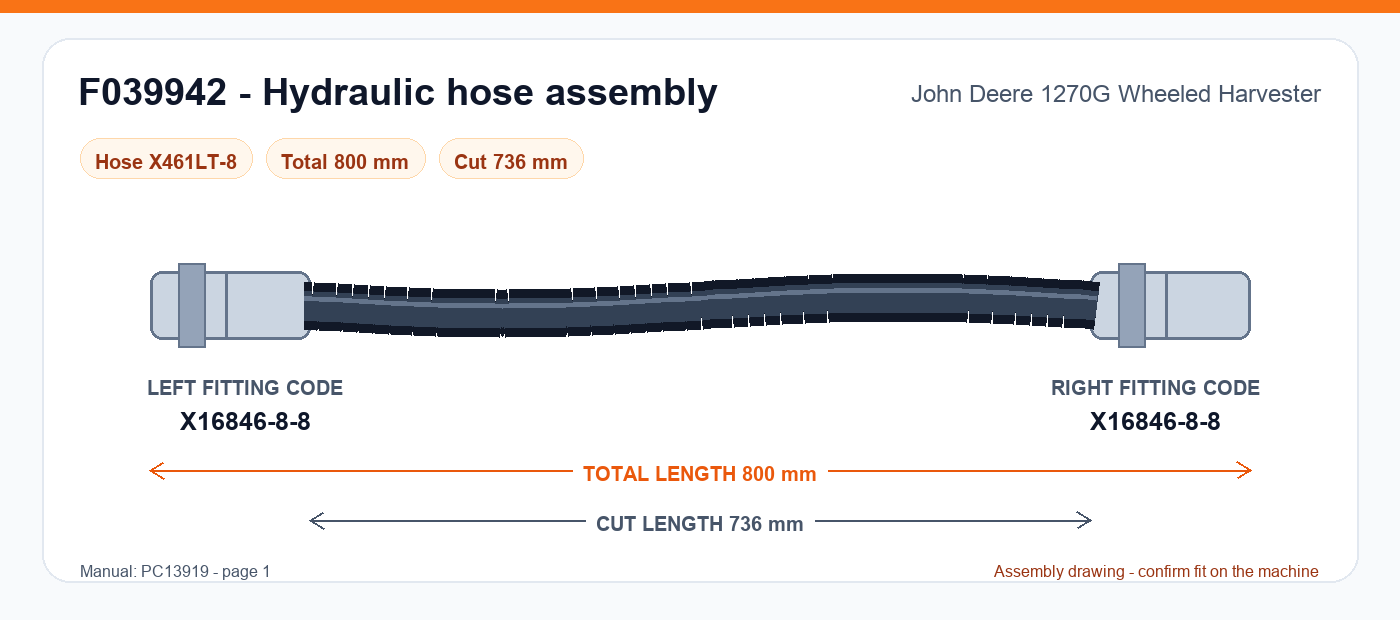

Hose drawing

Hose assembly drawing

Check the total length and both fitting codes before fabrication.

F039942 hydraulic hose assembly drawing for John Deere 1270G Wheeled Harvester - 800 mm total length, left fitting X16846-8-8, right fitting X16846-8-8 — F039942 - 800 mm total length. Select the drawing to open it full size.

Repair measurements

These text values can be translated and copied. Confirm them against the machine before fabrication.

Machine: John Deere 1270G Wheeled Harvester
Part number: F039942
Hose type: X461LT-8
Total length: 800 mm
Cut length: 736 mm
Left-end hydraulic fitting code: X16846-8-8Look up this code
Right-end hydraulic fitting code: X16846-8-8Look up this code
Manual reference: PC13919, page 1

Hose assembly details

Part number: F039942
Hose type: X461LT-8
Total length: 800 mm
Cut length: 736 mm
Left fitting code: X16846-8-8
Right fitting code: X16846-8-8
Application: 1270G Wheeled Harvester: 6W, Stage V / Tier 4, Rotating and Leveling Cabin, Gen II, Grey
Manual page: 1

Download manual

Same machine

More hoses for this machine

Manual page 3

F686922

Application: 1270G Wheeled Harvester: 6W, Stage V / Tier 4, Rotating and Leveling Cabin, Gen II, Grey

Length: 1,000 mm
Cut length: 933 mm
Specification: X461LT-6
Left fitting: X13746-6-6
Right fitting: X10646-6-6

View hose specifications

Manual page 2

F069086

Application: 1270G Wheeled Harvester: 6W, Stage V / Tier 4, Rotating and Leveling Cabin, Gen II, Grey

Length: 1,250 mm
Cut length: 1,192 mm
Specification: X461LT-6
Left fitting: X10646-6-6
Right fitting: X13946-6-6-MC

View hose specifications

Manual page 2

F072634

Application: 1270G Wheeled Harvester: 6W, Stage V / Tier 4, Rotating and Leveling Cabin, Gen II, Grey

Length: 1,100 mm
Cut length: 1,030 mm
Specification: X461LT-8
Left fitting: X16846-10-8
Right fitting: X16846-8-8

View hose specifications

Manual page 1

F043530

Application: 1270G Wheeled Harvester: 6W, Stage V / Tier 4, Rotating and Leveling Cabin, Gen II, Grey

Length: 500 mm
Cut length: 442 mm
Specification: X461LT-4
Left fitting: X13946-6-4
Right fitting: X10646-6-4

View hose specifications

Manual page 2

F072752

Application: 1270G Wheeled Harvester: 6W, Stage V / Tier 4, Rotating and Leveling Cabin, Gen II, Grey

Length: 4,150 mm
Cut length: 4,057 mm
Specification: X371LT-12
Left fitting: X10670-12-12-SM
Right fitting: X13770-12-12

View hose specifications

Manual page 3

F075477

Application: 1270G Wheeled Harvester: 6W, Stage V / Tier 4, Rotating and Leveling Cabin, Gen II, Grey

Length: 3,820 mm
Cut length: 3,714 mm
Specification: X371LT-16
Left fitting: X11570-20-16-1P
Right fitting: X13770-16-16-SM

View hose specifications

Manual page 2

F064074

Application: 1270G Wheeled Harvester: 6W, Stage V / Tier 4, Rotating and Leveling Cabin, Gen II, Grey

Length: 1,700 mm
Cut length: 1,638 mm
Specification: X461LT-4
Left fitting: X10646-6-4
Right fitting: X10646-6-4

View hose specifications

Manual page 4

F702582

Application: 1270G Wheeled Harvester: 6W, Stage V / Tier 4, Rotating and Leveling Cabin, Gen II, Grey

Length: 1,900 mm
Cut length: 1,832 mm
Specification: X371LT-8
Left fitting: X10670-10-8-SM
Right fitting: X13970-10-8-SM

View hose specifications
