Hose assembly specifications

F702582 Hydraulic Hose Specifications

Forestry Machine · John Deere · 1270G Wheeled Harvester

Total length1,900 mm

Hose drawing

Hose assembly drawing

Check the total length and both fitting codes before fabrication.

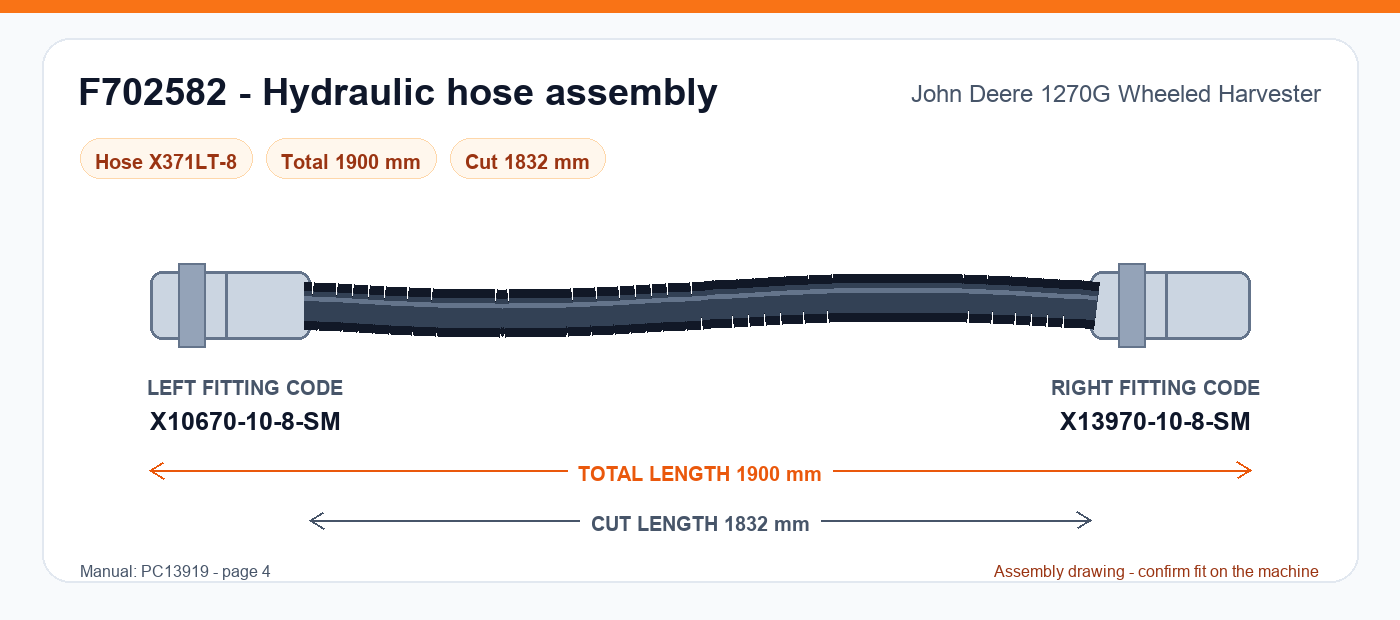

F702582 hydraulic hose assembly drawing for John Deere 1270G Wheeled Harvester - 1,900 mm total length, left fitting X10670-10-8-SM, right fitting X13970-10-8-SM — F702582 - 1,900 mm total length. Select the drawing to open it full size.

Repair measurements

These text values can be translated and copied. Confirm them against the machine before fabrication.

Machine: John Deere 1270G Wheeled Harvester
Part number: F702582
Hose type: X371LT-8
Total length: 1,900 mm
Cut length: 1,832 mm
Left-end hydraulic fitting code: X10670-10-8-SMJIC 37° female swivel straight · 7/8-14 UNF · 1/2 inch / DN12 hoseSee fitting details
Right-end hydraulic fitting code: X13970-10-8-SMLook up this code
Manual reference: PC13919, page 4

Hose assembly details

Part number: F702582
Hose type: X371LT-8
Total length: 1,900 mm
Cut length: 1,832 mm
Left fitting code: X10670-10-8-SM
Right fitting code: X13970-10-8-SM
Application: 1270G Wheeled Harvester: 6W, Stage V / Tier 4, Rotating and Leveling Cabin, Gen II, Grey
Manual page: 4

Download manual
