KHJ2174 Hose Repair Specifications

Excavator · Case · CX240E NHD · Grease Lines

Finished length3,100 mm

Locate this hose

Installation diagram — Pipe No. 10

Locate Pipe No. 10 in the diagram, then confirm part number KHJ2174 before removing the hose.

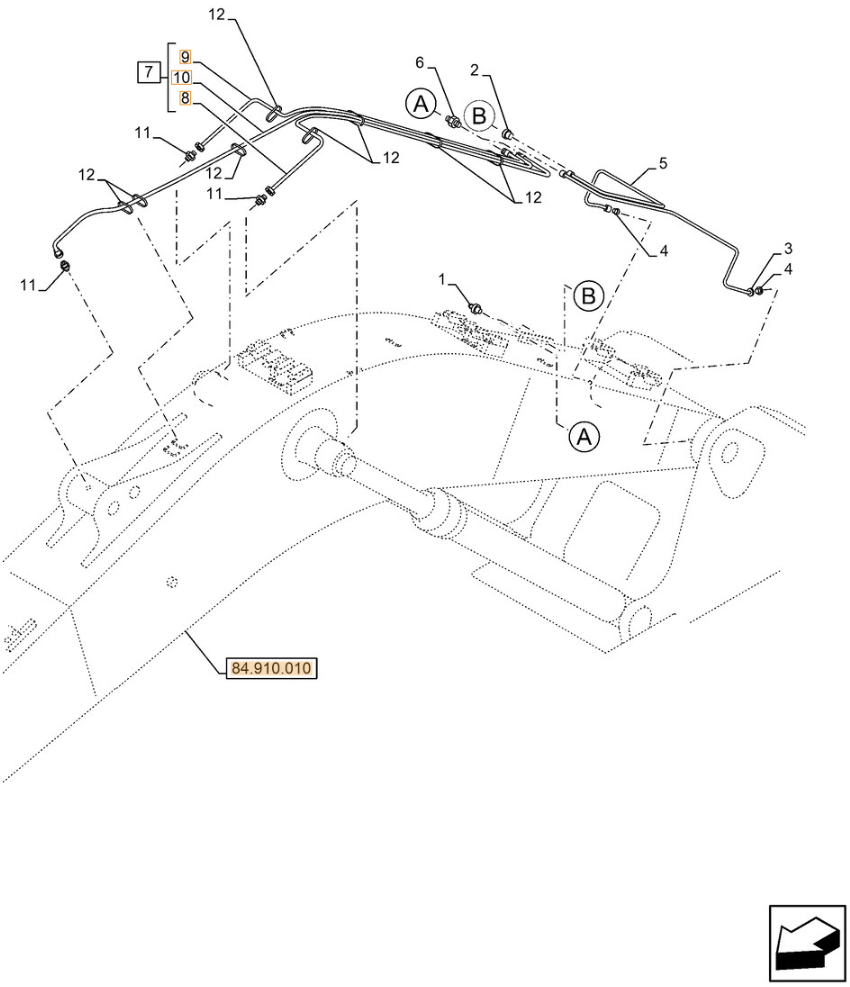

Case CX240E NHD installation diagram showing hydraulic hose KHJ2174 at Pipe No. 10 — **Case CX240E NHD**Part KHJ2174 · Pipe No. 10Open full-size diagram

Repair specifications

Part number: KHJ2174
Diagram pipe number: 10
Installation route: Arm-cylinder grease lineOriginal Chinese: 小臂油缸黄油管
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 3,100 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 1
