KHJ14930 Hose Repair Specifications

Excavator · Case · CX240E NHD · Grease Lines

Finished length1,400 mm

Locate this hose

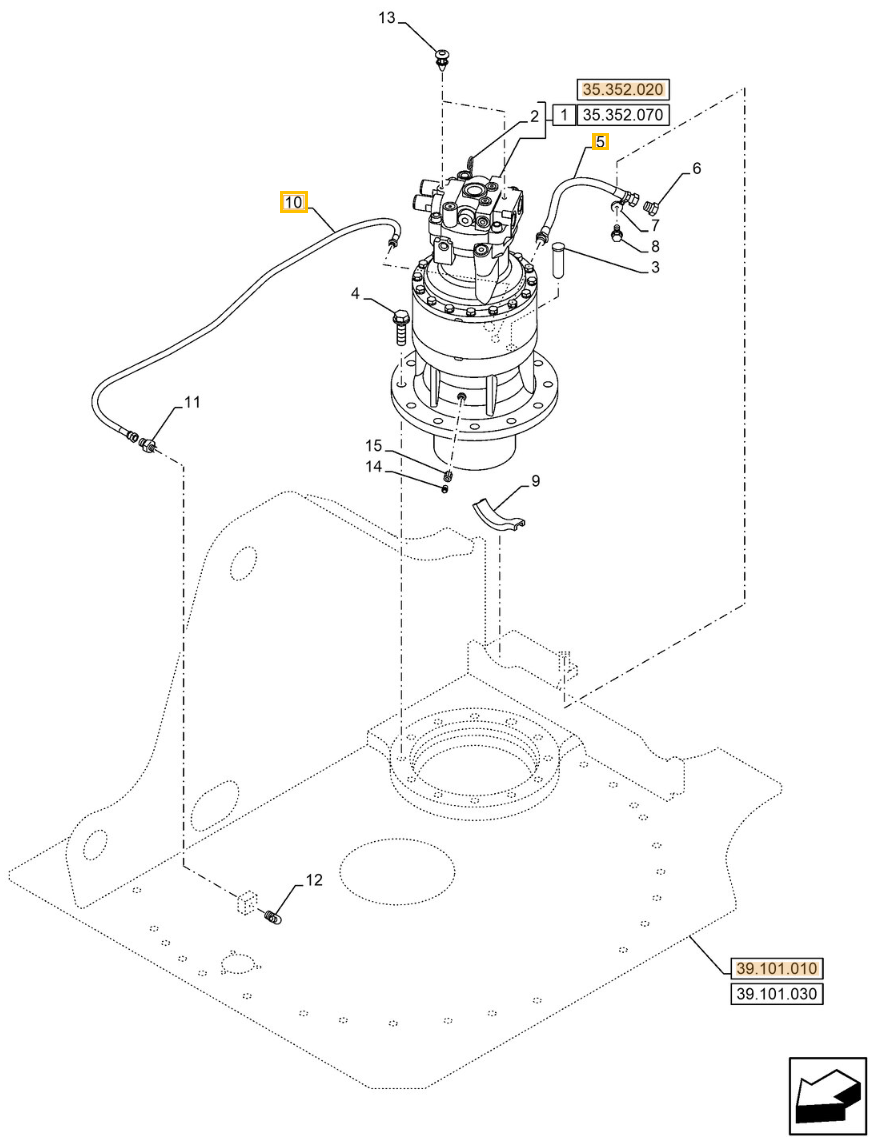

Installation diagram — Pipe No. 10

Locate Pipe No. 10 in the diagram, then confirm part number KHJ14930 before removing the hose.

Part number: KHJ14930
Diagram pipe number: 10
Installation route: 回转马达黄油管
Hose specification: DN6;1SN-04;22.5MPa
Finished length: 1,400 mm
Working pressure: 22.5 MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Quantity: 1

Same system

Diagram Pipe No. 8

Installation route: Left boom-cylinder grease lineOriginal Chinese: 左大臂油缸黄油管

Length: 2,250 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

Diagram Pipe No. 10

Installation route: Arm-cylinder grease lineOriginal Chinese: 小臂油缸黄油管

Length: 3,100 mm
Specification: DN6;1SN-04;22.5MPa
Left fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥
Right fitting: British female thread, 60° external cone seatOriginal Chinese: 英制内螺纹60°外锥

For reference only. Confirm the actual hose before fabrication.
