Individual hose record

6C-0568 Hose Repair Specifications

Excavator · Caterpillar · CAT®235C · Attachments – Breaker

Finished length7,100 mm

Locate this hose

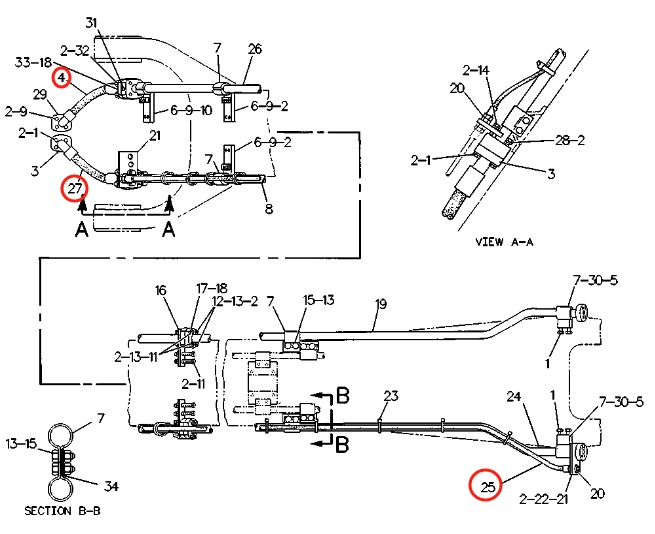

Installation diagram — Pipe No. 25

Locate Pipe No. 25 in the diagram, then confirm part number 6C-0568 before removing the hose.

Caterpillar CAT®235C installation diagram showing hydraulic hose 6C-0568 at Pipe No. 25 — Caterpillar CAT®235CPart 6C-0568 · Pipe No. 25Open full-size diagram

Repair specifications

Part number: 6C-0568
Diagram pipe number: 25
Installation route: 大臂(前段)~大臂(后段)
Hose specification: DN10;4SP-6;28Mpa
Finished length: 7,100 mm
Working pressure: 28 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 32

9G-4432

Installation route: 小臂破碎器截止阀右

Length: 2,100 mm
Specification: DN10;4SP-6;28Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
