9G-4432 Hose Repair Specifications

Excavator · Caterpillar · CAT®235C · Attachments – Breaker

Finished length2,100 mm

Locate this hose

Installation diagram — Pipe No. 32

Locate Pipe No. 32 in the diagram, then confirm part number 9G-4432 before removing the hose.

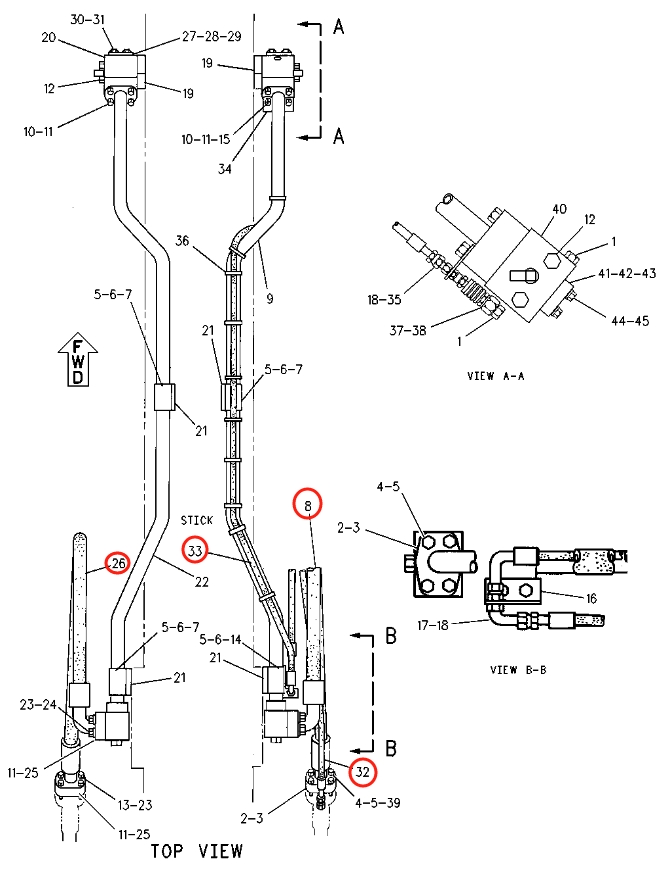

Caterpillar CAT®235C installation diagram showing hydraulic hose 9G-4432 at Pipe No. 32 — Caterpillar CAT®235CPart 9G-4432 · Pipe No. 32Open full-size diagram

Repair specifications

Part number: 9G-4432
Diagram pipe number: 32
Installation route: 小臂破碎器截止阀右
Hose specification: DN10;4SP-6;28Mpa
Finished length: 2,100 mm
Working pressure: 28 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 25

6C-0568

Installation route: 大臂(前段)~大臂(后段)

Length: 7,100 mm
Specification: DN10;4SP-6;28Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
