Individual hose record
388-0105 Hose Repair Specifications
Excavator · Caterpillar · CAT®315 GC · Attachments – Quick Coupler
Finished length260 mm
Locate this hose

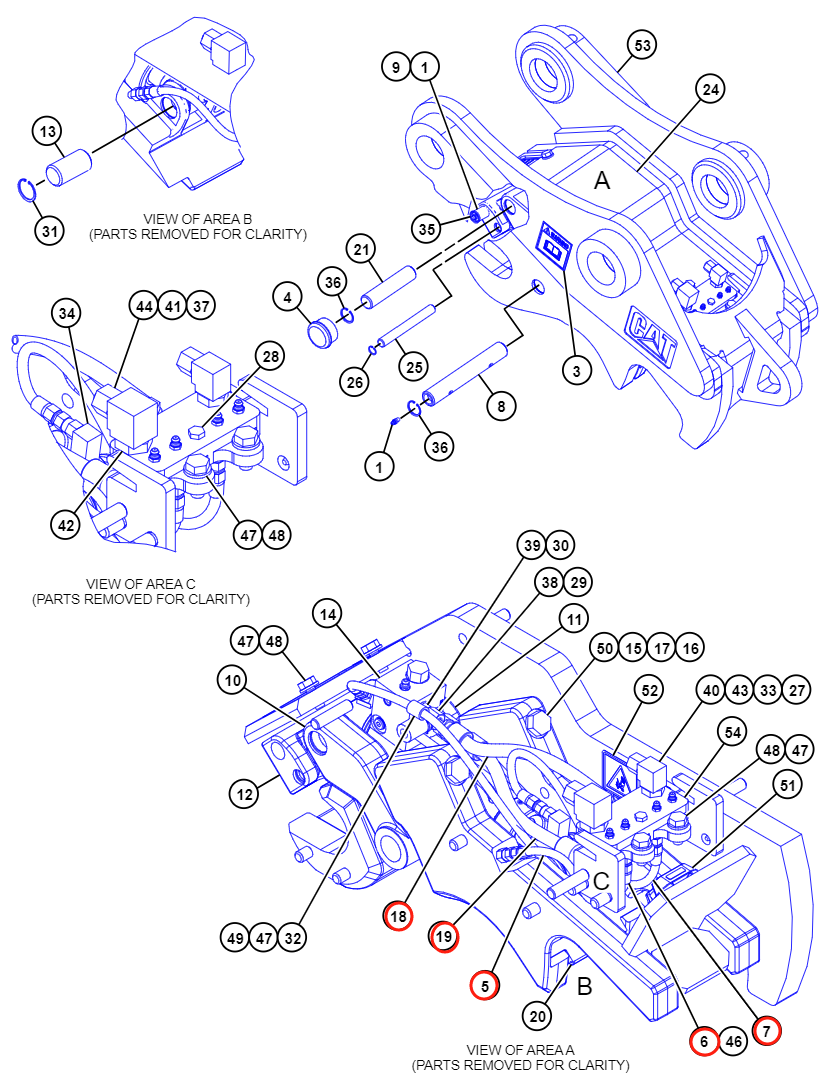

Installation diagram — Pipe No. 5
Locate Pipe No. 5 in the diagram, then confirm part number 388-0105 before removing the hose.
Repair specifications
- Part number
- 388-0105
- Diagram pipe number
- 5
- Installation route
- 快换装置管
- Hose specification
- DN3;-2;0Mpa
- Finished length
- 260 mm
- Working pressure
- 0 MPa
- Left fitting
- 美制锥形外螺纹30°内锥
- Right fitting
- 美制锥形外螺纹30°内锥
- Quantity
- 2
Same system
Related Hoses
- Length
- 550 mm
- Specification
- DN3;-2;0Mpa
- Left fitting
- 美制锥形外螺纹30°内锥
- Right fitting
- 美制锥形外螺纹30°内锥
- Length
- 3,140 mm
- Specification
- DN10;6SH-6;42Mpa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
For reference only. Confirm the actual hose before fabrication.
