Individual hose record
585-7442 Hose Repair Specifications
Excavator · Caterpillar · CAT®315 GC · Attachments – Quick Coupler
Finished length3,020 mm
Locate this hose

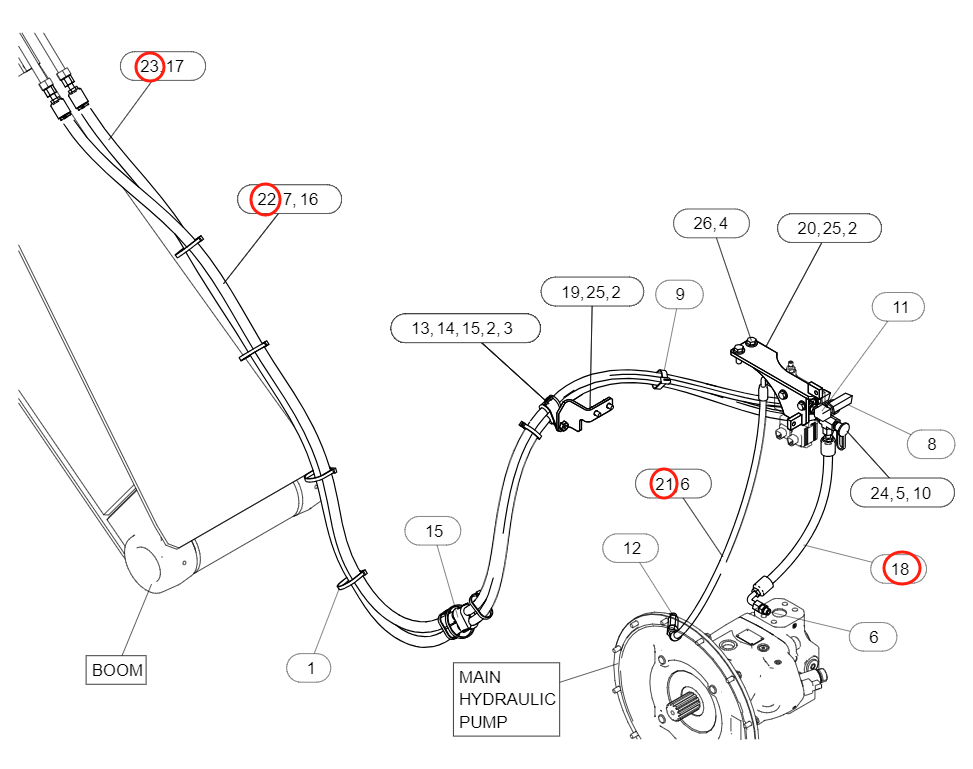

Installation diagram — Pipe No. 22
Locate Pipe No. 22 in the diagram, then confirm part number 585-7442 before removing the hose.
Repair specifications
- Part number
- 585-7442
- Diagram pipe number
- 22
- Installation route
- 大臂(快换)~快速联轴阀
- Hose specification
- DN10;6SH-6;42Mpa
- Finished length
- 3,020 mm
- Working pressure
- 42 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
