Individual hose record

103-1345 Hose Repair Specifications

Excavator · Caterpillar · CAT®307 · Control Valve

Finished length1,400 mm

Locate this hose

Installation diagram — Pipe No. 82

Locate Pipe No. 82 in the diagram, then confirm part number 103-1345 before removing the hose.

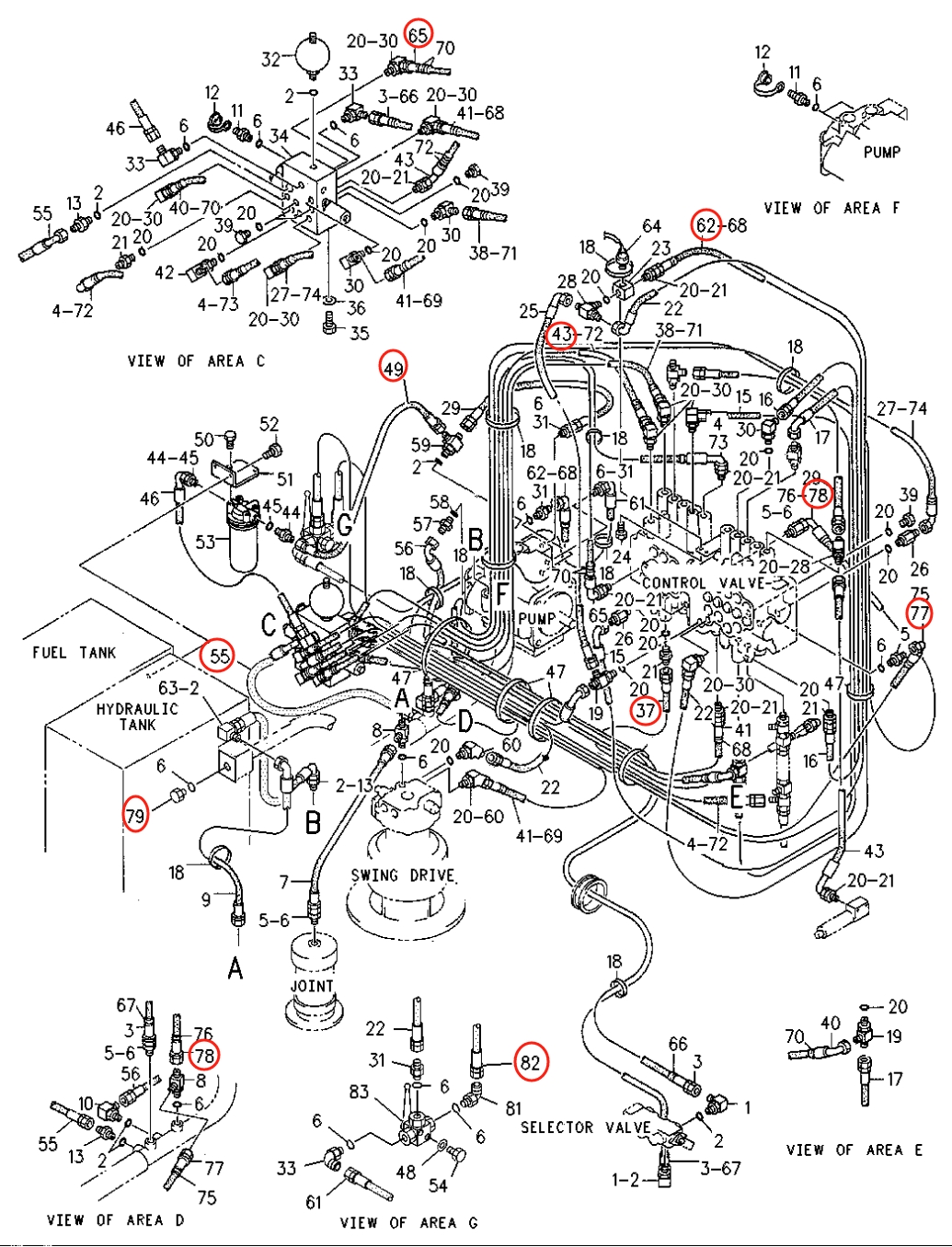

Caterpillar CAT®307 installation diagram showing hydraulic hose 103-1345 at Pipe No. 82 — Caterpillar CAT®307Part 103-1345 · Pipe No. 82Open full-size diagram

Repair specifications

Part number: 103-1345
Diagram pipe number: 82
Installation route: 分配阀前~手动阀(液压泵右)
Hose specification: DN6;-4;19.2Mpa
Finished length: 1,400 mm
Working pressure: 19.2 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 10

111-6505

Installation route: 分配阀上~电磁阀(液压油箱后)

Length: 2,300 mm
Specification: DN6;-4;10.3Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 16

108-7282

Installation route: 分配阀上~分配阀下

Length: 900 mm
Specification: DN6;-4;10.3Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 20

107-1434

Installation route: 分配阀前~分配阀前

Length: 620 mm
Specification: DN13;4SP-8;28Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 29

108-7285

Installation route: 分配阀上~分配阀上

Length: 440 mm
Specification: DN6;-4;10.3Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 33

108-7255

Installation route: 分配阀后~蓄能器电磁阀(液压油箱后)

Length: 800 mm
Specification: DN6;-4;10.3Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
