Individual hose record
107-1434 Hose Repair Specifications
Excavator · Caterpillar · CAT®307 · Control Valve
Finished length620 mm
Locate this hose

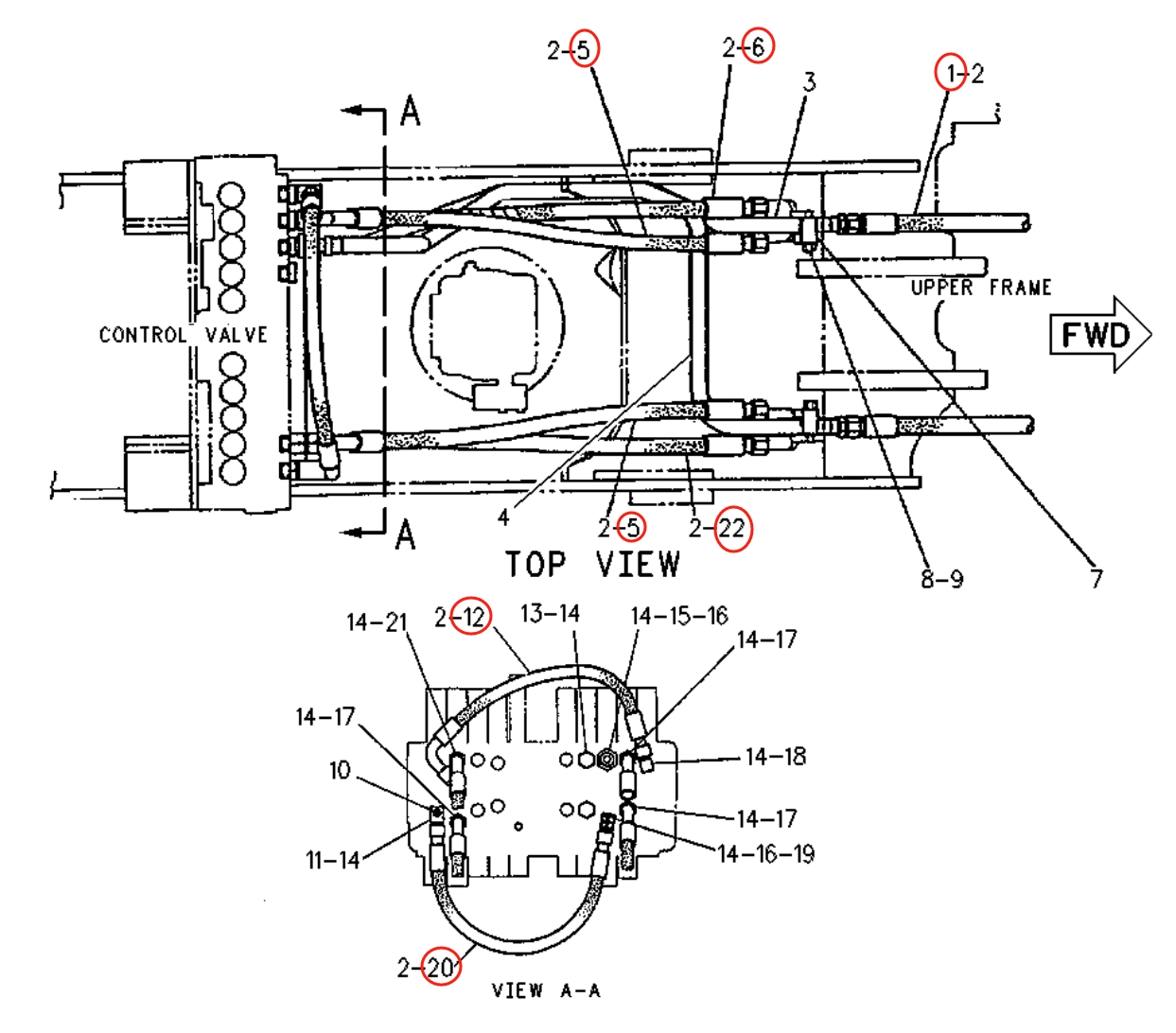

Installation diagram — Pipe No. 20
Locate Pipe No. 20 in the diagram, then confirm part number 107-1434 before removing the hose.
Repair specifications
- Part number
- 107-1434
- Diagram pipe number
- 20
- Installation route
- 分配阀前~分配阀前
- Hose specification
- DN13;4SP-8;28Mpa
- Finished length
- 620 mm
- Working pressure
- 28 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
