Individual hose record
8K-4024 Hose Repair Specifications
Excavator · Caterpillar · CAT®231D · Attachments
Finished length558 mm
Locate this hose

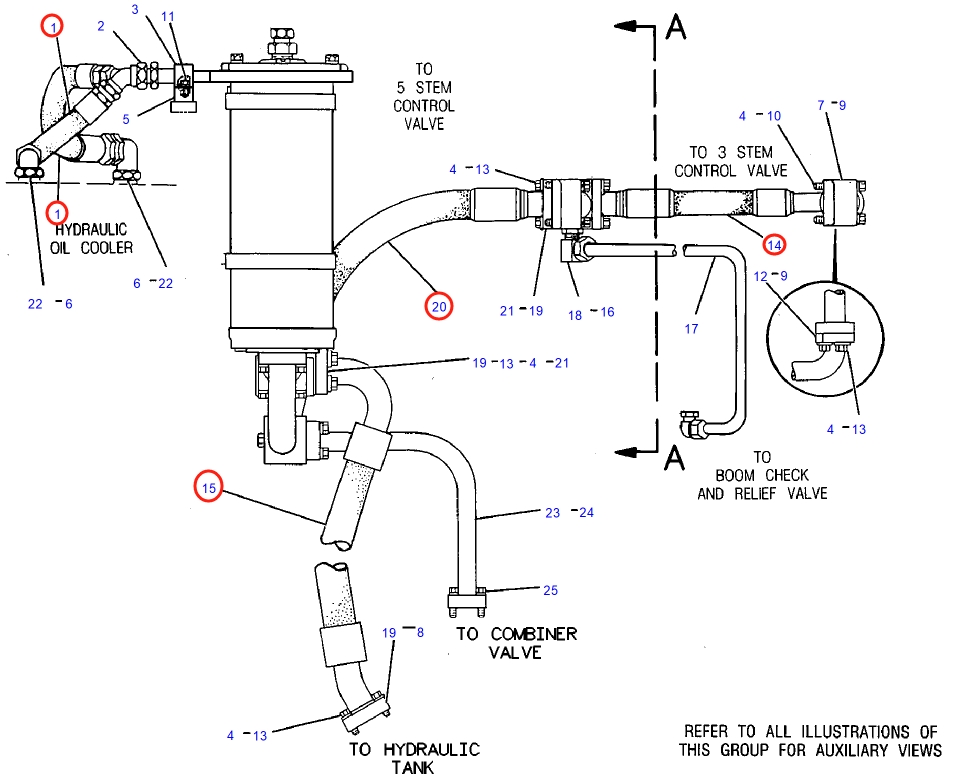

Installation diagram — Pipe No. 1
Locate Pipe No. 1 in the diagram, then confirm part number 8K-4024 before removing the hose.
Repair specifications
- Part number
- 8K-4024
- Diagram pipe number
- 1
- Installation route
- 回油滤芯~液压油散热器
- Hose specification
- DN25;1SN-16;7Mpa
- Finished length
- 558 mm
- Working pressure
- 7 MPa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Quantity
- 2
Same system
Related Hoses
- Length
- 415 mm
- Specification
- DN10;4SP-6;28Mpa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
For reference only. Confirm the actual hose before fabrication.
