Individual hose record
6W-5415 Hose Repair Specifications
Excavator · Caterpillar · CAT®231D · Attachments
Finished length415 mm
Locate this hose

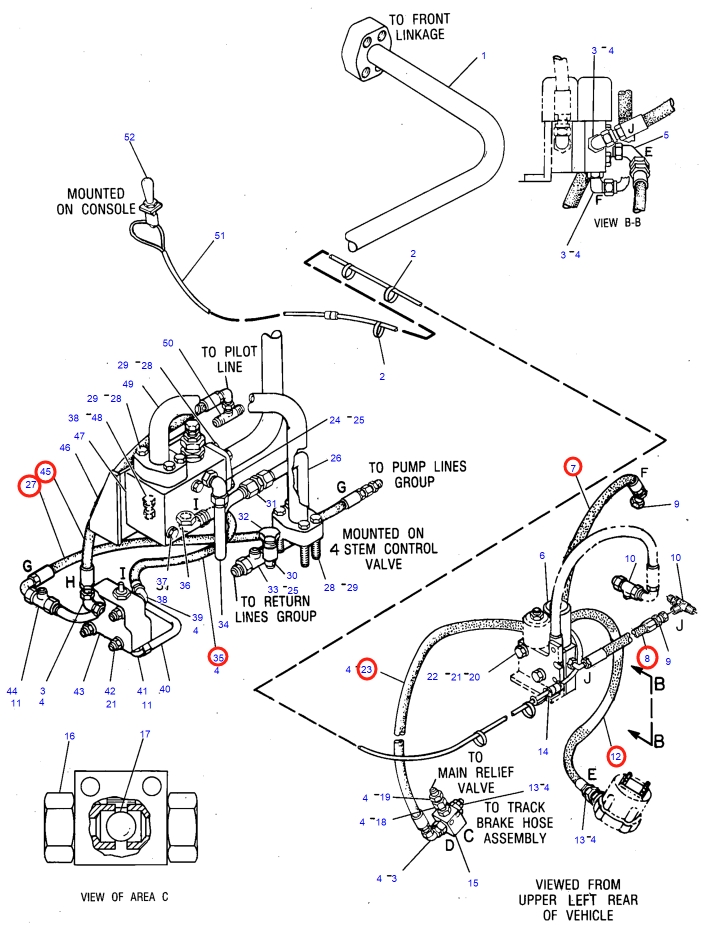

Installation diagram — Pipe No. 35
Locate Pipe No. 35 in the diagram, then confirm part number 6W-5415 before removing the hose.
Repair specifications
- Part number
- 6W-5415
- Diagram pipe number
- 35
- Installation route
- 先导阀(分配阀后)~过渡阀块(分配阀上)
- Hose specification
- DN10;4SP-6;28Mpa
- Finished length
- 415 mm
- Working pressure
- 28 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
Same system
Related Hoses
- Length
- 558 mm
- Specification
- DN25;1SN-16;7Mpa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
For reference only. Confirm the actual hose before fabrication.
