Individual hose record

2V-0665 Hose Repair Specifications

Excavator · Caterpillar · CAT®225 · Hydraulic Tank

Finished length400 mm

Locate this hose

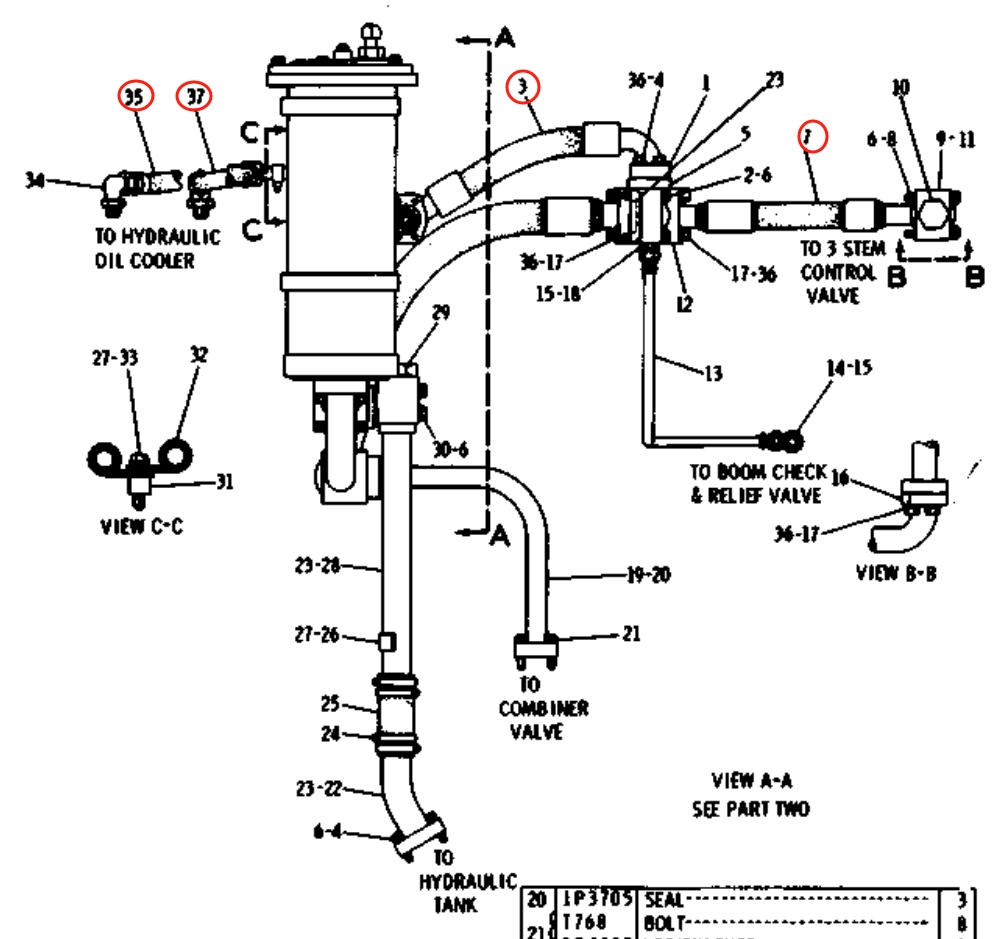

Installation diagram — Pipe No. 37

Locate Pipe No. 37 in the diagram, then confirm part number 2V-0665 before removing the hose.

Caterpillar CAT®225 installation diagram showing hydraulic hose 2V-0665 at Pipe No. 37 — Caterpillar CAT®225Part 2V-0665 · Pipe No. 37Open full-size diagram

Repair specifications

Part number: 2V-0665
Diagram pipe number: 37
Installation route: 液压油箱过滤器~液压油箱
Hose specification: DN25;1SN-16;7Mpa
Finished length: 400 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 35

2V-0664

Installation route: 液压油箱过滤器~液压油箱

Length: 465 mm
Specification: DN25;1SN-16;7Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 30

2V-0996

Installation route: 液压油箱~

Length: 1,700 mm
Specification: DN19;1SN-12;8.7Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
