Individual hose record

2V-0996 Hose Repair Specifications

Excavator · Caterpillar · CAT®225 · Hydraulic Tank

Finished length1,700 mm

Locate this hose

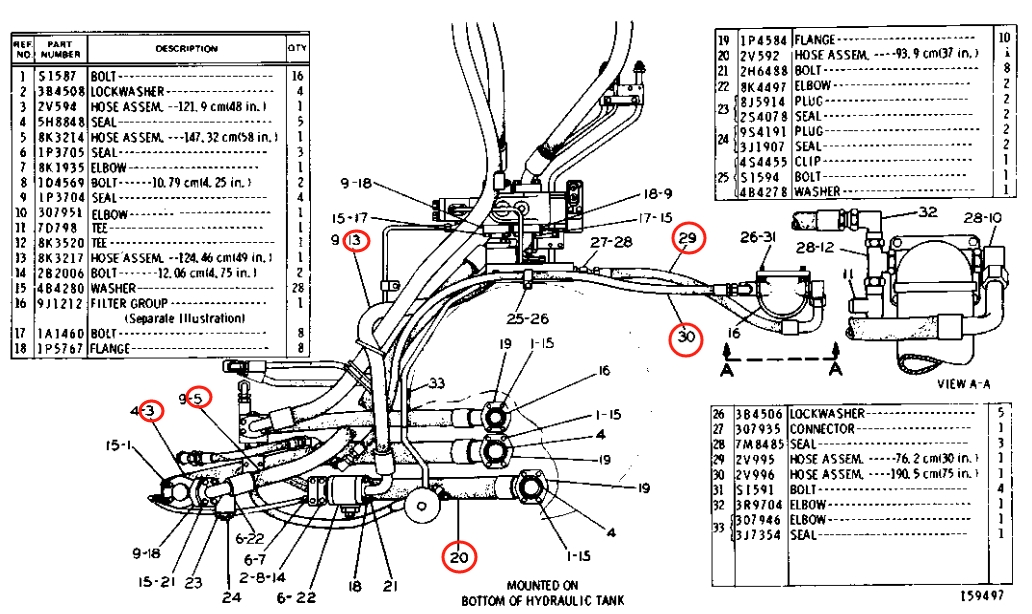

Installation diagram — Pipe No. 30

Locate Pipe No. 30 in the diagram, then confirm part number 2V-0996 before removing the hose.

Caterpillar CAT®225 installation diagram showing hydraulic hose 2V-0996 at Pipe No. 30 — Caterpillar CAT®225Part 2V-0996 · Pipe No. 30Open full-size diagram

Repair specifications

Part number: 2V-0996
Diagram pipe number: 30
Installation route: 液压油箱~
Hose specification: DN19;1SN-12;8.7Mpa
Finished length: 1,700 mm
Working pressure: 8.7 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 35

2V-0664

Installation route: 液压油箱过滤器~液压油箱

Length: 465 mm
Specification: DN25;1SN-16;7Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 37

2V-0665

Installation route: 液压油箱过滤器~液压油箱

Length: 400 mm
Specification: DN25;1SN-16;7Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
