Individual hose record

503-9070 Hose Repair Specifications

Excavator · Caterpillar · CAT®318D2 · Solenoid Valve

Finished length3,500 mm

Locate this hose

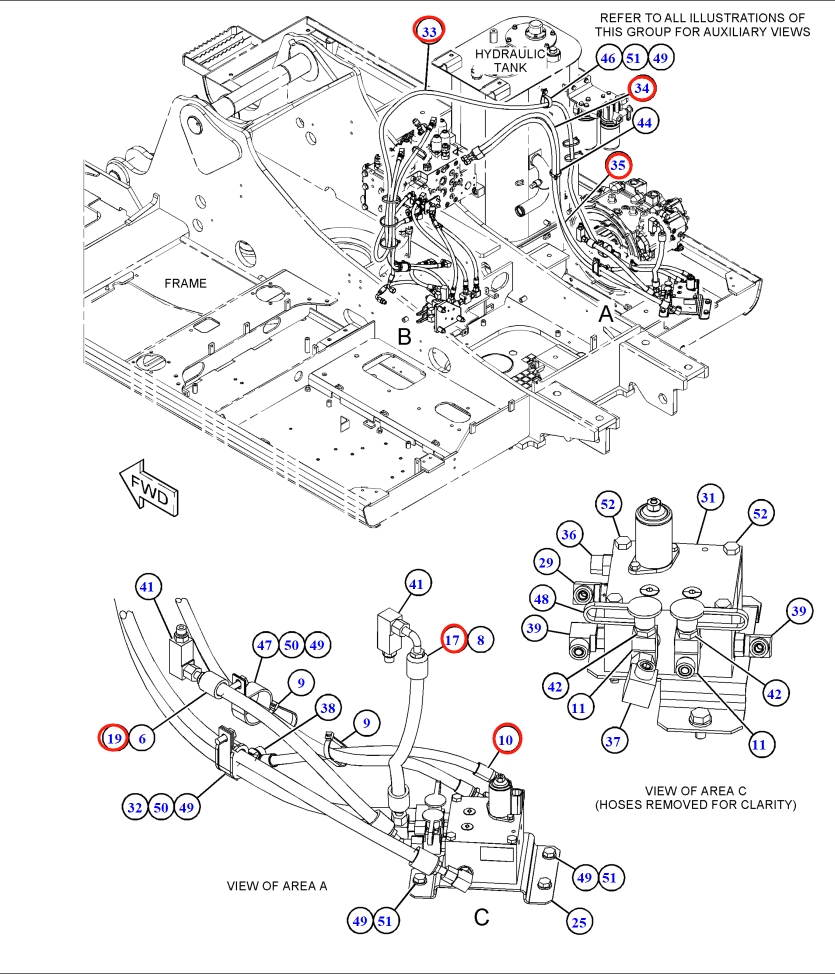

Installation diagram — Pipe No. 33

Locate Pipe No. 33 in the diagram, then confirm part number 503-9070 before removing the hose.

Part number: 503-9070
Diagram pipe number: 33
Installation route: 电磁阀(液压泵左下)~
Hose specification: DN10;1SN-6;10.4Mpa
Finished length: 3,500 mm
Working pressure: 10.4 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 23

Installation route: 电磁阀(分配阀左后)~

Length: 360 mm
Specification: DN10;1SN-6;15.7Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 3

Installation route: 电磁阀(分配阀后)~电磁阀(分配阀左后)

Length: 600 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
