Individual hose record

307-5000 Hose Repair Specifications

Excavator · Caterpillar · CAT®318D2 · Solenoid Valve

Finished length360 mm

Locate this hose

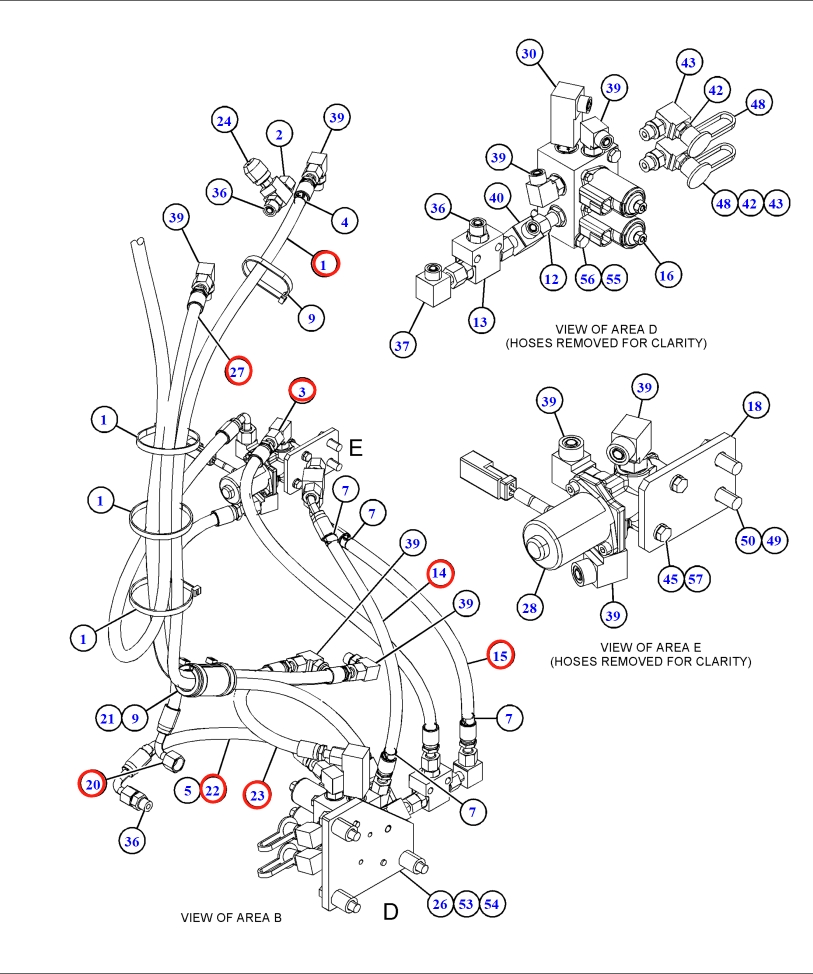

Installation diagram — Pipe No. 23

Locate Pipe No. 23 in the diagram, then confirm part number 307-5000 before removing the hose.

Part number: 307-5000
Diagram pipe number: 23
Installation route: 电磁阀(分配阀左后)~
Hose specification: DN10;1SN-6;15.7Mpa
Finished length: 360 mm
Working pressure: 15.7 MPa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity: 1

Same system

Diagram Pipe No. 3

Installation route: 电磁阀(分配阀后)~电磁阀(分配阀左后)

Length: 600 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

Diagram Pipe No. 33

Installation route: 电磁阀(液压泵左下)~

Length: 3,500 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

For reference only. Confirm the actual hose before fabrication.
