Individual hose record
2V-8572 Hose Repair Specifications
Excavator · Caterpillar · CAT®225B · Control Lever
Finished length687 mm
Locate this hose

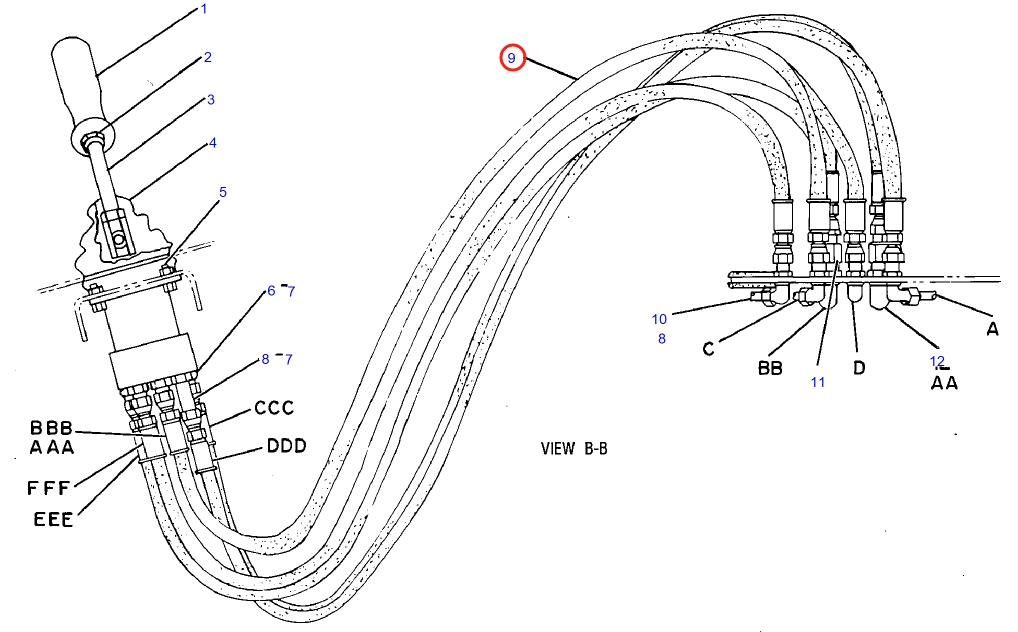

Installation diagram — Pipe No. 9
Locate Pipe No. 9 in the diagram, then confirm part number 2V-8572 before removing the hose.
Repair specifications
- Part number
- 2V-8572
- Diagram pipe number
- 9
- Installation route
- 左手柄~中转接头
- Hose specification
- DN10;1SN-6;15.7Mpa
- Finished length
- 687 mm
- Working pressure
- 15.7 MPa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Quantity
- 6
Same system
Related Hoses
- Length
- 687 mm
- Specification
- DN10;1SN-6;15.7Mpa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Length
- 762 mm
- Specification
- DN10;1SN-6;10.4Mpa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Length
- 1,010 mm
- Specification
- DN19;1SN-12;8.7Mpa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Length
- 794 mm
- Specification
- DN10;1SN-6;15.7Mpa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Length
- 687 mm
- Specification
- DN10;1SN-6;15.7Mpa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
For reference only. Confirm the actual hose before fabrication.
