Individual hose record

2V-8572 Hose Repair Specifications

Excavator · Caterpillar · CAT®225B · Control Lever

Finished length687 mm

Locate this hose

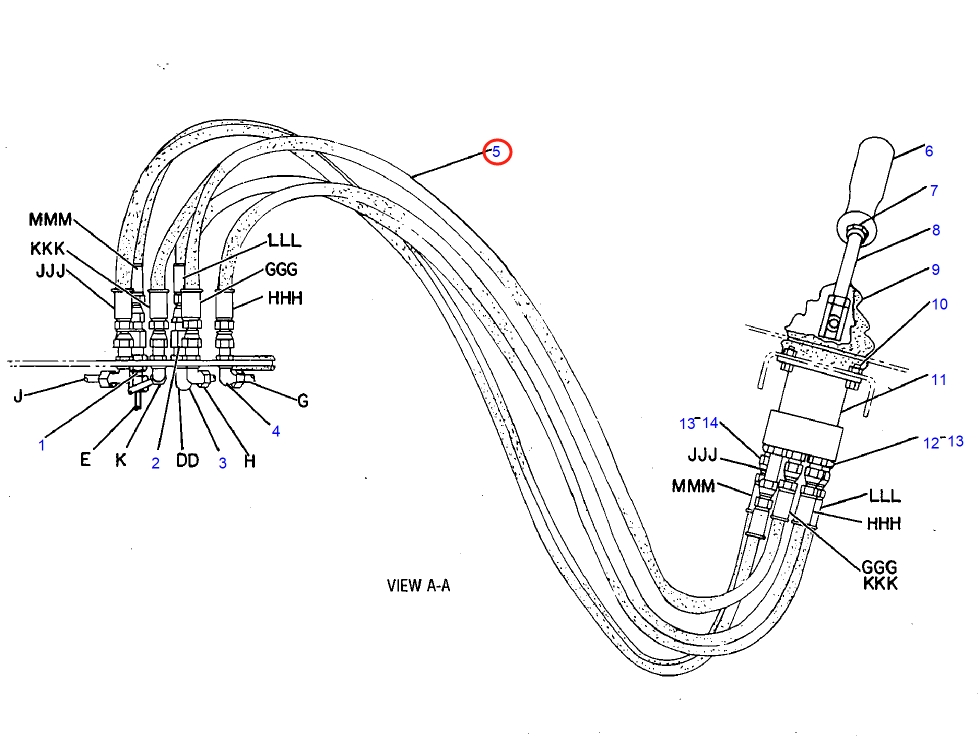

Installation diagram — Pipe No. 5

Locate Pipe No. 5 in the diagram, then confirm part number 2V-8572 before removing the hose.

Caterpillar CAT®225B installation diagram showing hydraulic hose 2V-8572 at Pipe No. 5 — Caterpillar CAT®225BPart 2V-8572 · Pipe No. 5Open full-size diagram

Repair specifications

Part number: 2V-8572
Diagram pipe number: 5
Installation route: 右手柄~中转接头
Hose specification: DN10;1SN-6;15.7Mpa
Finished length: 687 mm
Working pressure: 15.7 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 6

Same system

Related Hoses

Diagram Pipe No. 9

8R-0944

Installation route: 左手柄~中转接头

Length: 687 mm
Specification: DN10;1SN-6;15.7Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 5

8R-0944

Installation route: 右手柄~中转接头

Length: 687 mm
Specification: DN10;1SN-6;15.7Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 9

2V-8572

Installation route: 左手柄~中转接头

Length: 687 mm
Specification: DN10;1SN-6;15.7Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 11

1V-9721

Installation route: 中转接头~阀块

Length: 762 mm
Specification: DN10;1SN-6;10.4Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 2

7V-4250

Installation route: 中转接头~过渡阀块(回转马达左)

Length: 1,010 mm
Specification: DN19;1SN-12;8.7Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

Diagram Pipe No. 14

2V-8679

Installation route: 中转接头~过渡阀块(中转接头后)

Length: 794 mm
Specification: DN10;1SN-6;15.7Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
