Individual hose record
2V-8568 Hose Repair Specifications
Excavator · Caterpillar · CAT®245 · Control Lever
Finished length460 mm
Locate this hose

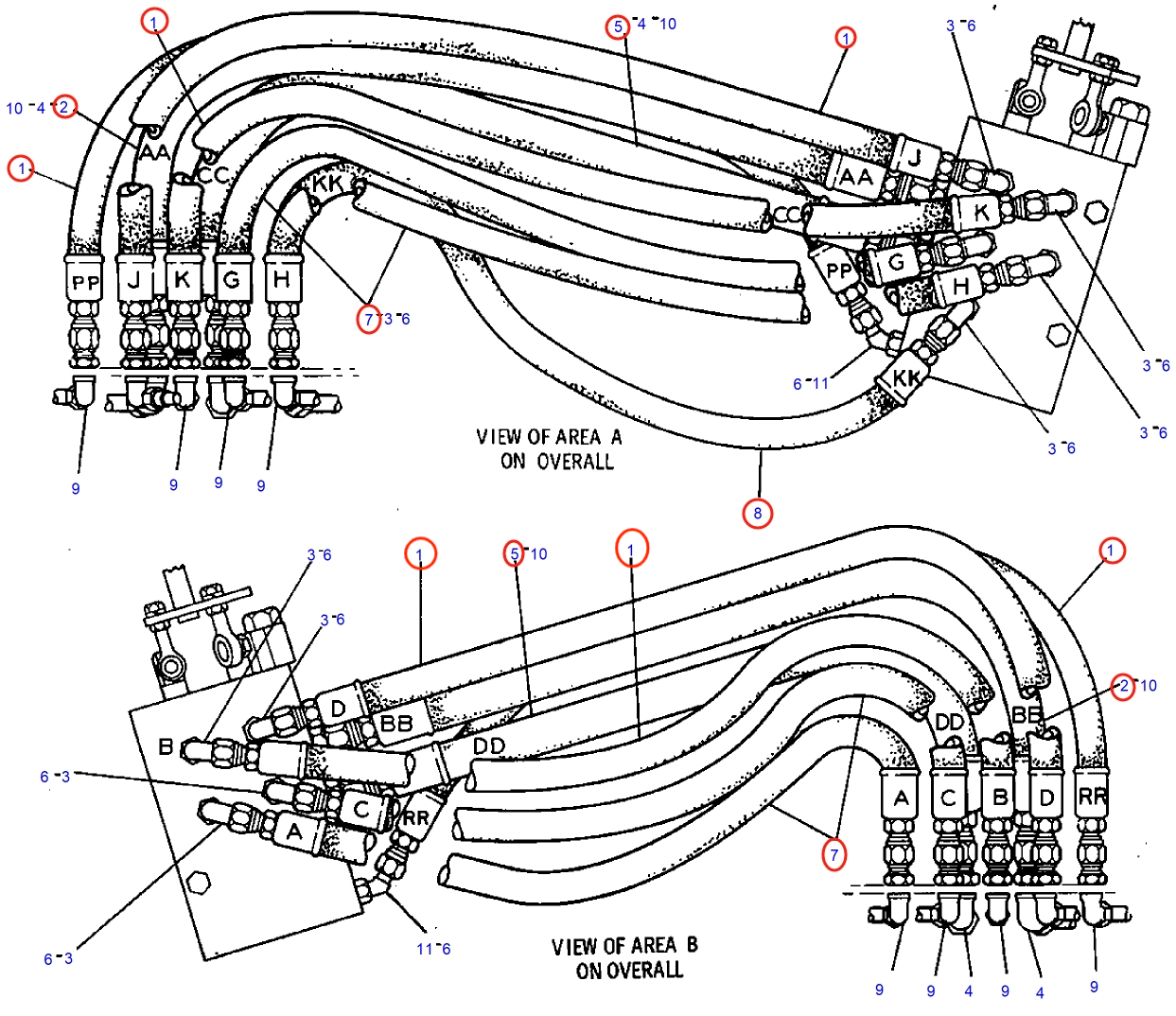

Installation diagram — Pipe No. 8
Locate Pipe No. 8 in the diagram, then confirm part number 2V-8568 before removing the hose.
Repair specifications
- Part number
- 2V-8568
- Diagram pipe number
- 8
- Installation route
- 右手柄~中转接头
- Hose specification
- DN10;2SN-6;33Mpa
- Finished length
- 460 mm
- Working pressure
- 33 MPa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Quantity
- 1
