Individual hose record
8R-0944 Hose Repair Specifications
Excavator · Caterpillar · CAT®245 · Control Lever
Finished length687 mm
Locate this hose

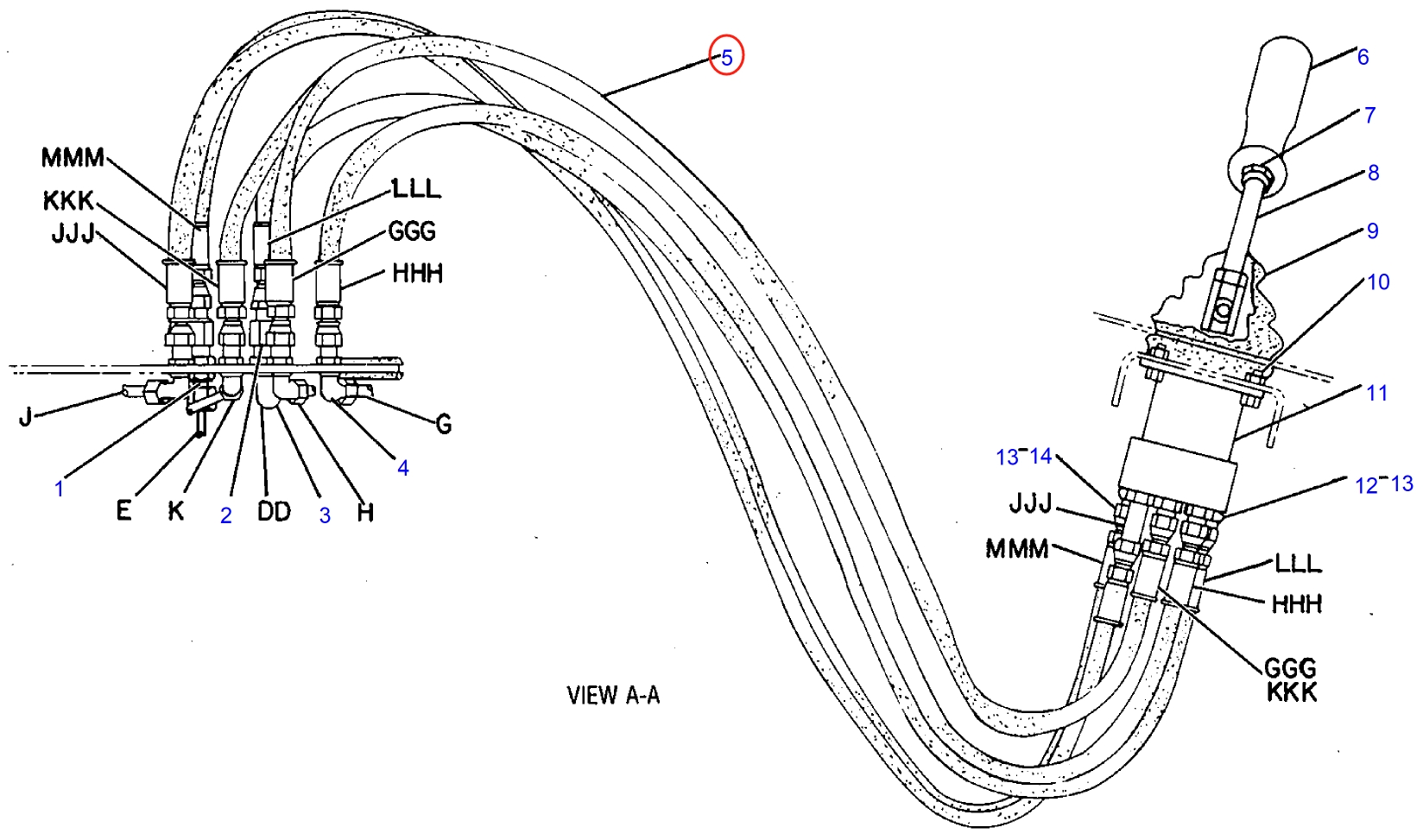

Installation diagram — Pipe No. 5
Locate Pipe No. 5 in the diagram, then confirm part number 8R-0944 before removing the hose.
Repair specifications
- Part number
- 8R-0944
- Diagram pipe number
- 5
- Installation route
- 右手柄~进回油阀
- Hose specification
- DN10;1SN-6;15.7Mpa
- Finished length
- 687 mm
- Working pressure
- 15.7 MPa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Quantity
- 2
Same system
Related Hoses
- Length
- 687 mm
- Specification
- DN10;1SN-6;15.7Mpa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Length
- 460 mm
- Specification
- DN10;2SN-6;33Mpa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Length
- 687 mm
- Specification
- DN10;1SN-6;15.7Mpa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Length
- 651 mm
- Specification
- DN13;1SN-8;14Mpa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Length
- 584 mm
- Specification
- DN13;1SN-8;14Mpa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Length
- 584 mm
- Specification
- DN13;1SN-8;14Mpa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
- Length
- 651 mm
- Specification
- DN13;1SN-8;14Mpa
- Left fitting
- 美制内螺纹37°锥
- Right fitting
- 美制内螺纹37°锥
For reference only. Confirm the actual hose before fabrication.
