Hose assembly specifications

F072580 Hydraulic Hose Specifications

Forestry Machine · John Deere · 1910G Forwarder

Total length950 mm

Hose drawing

Hose assembly drawing

Check the total length and both fitting codes before fabrication.

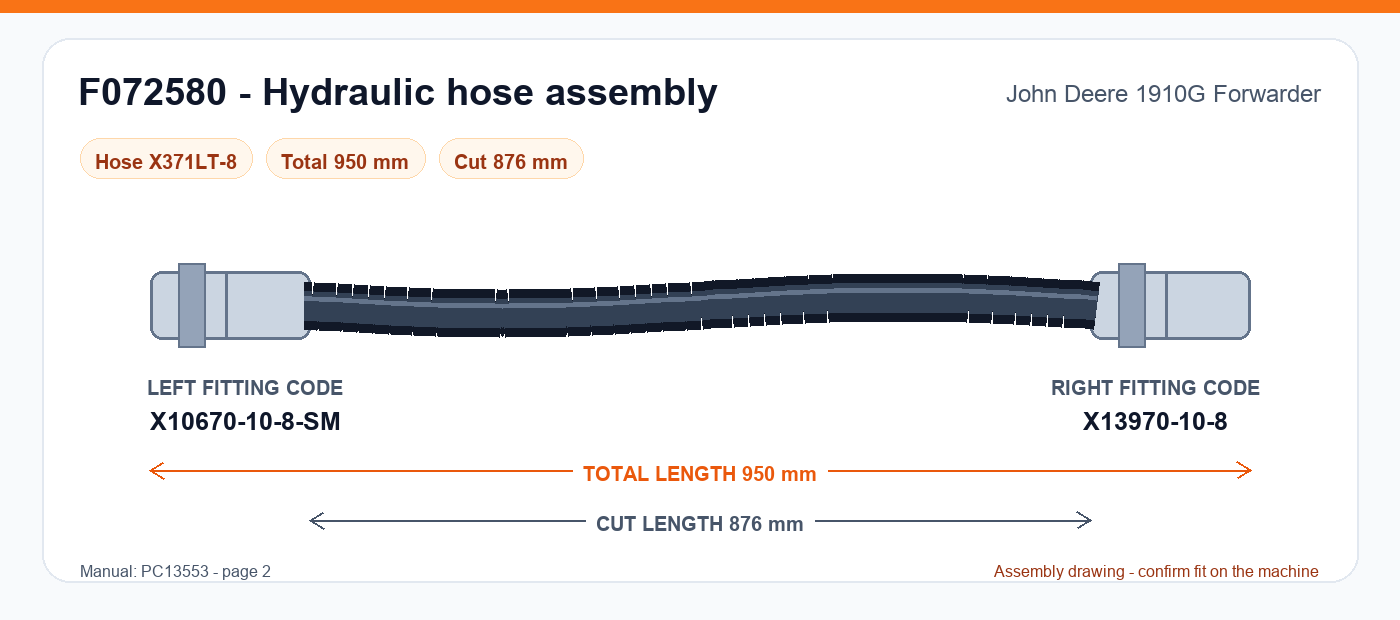

F072580 hydraulic hose assembly drawing for John Deere 1910G Forwarder - 950 mm total length, left fitting X10670-10-8-SM, right fitting X13970-10-8 — F072580 - 950 mm total length. Select the drawing to open it full size.

Repair measurements

These text values can be translated and copied. Confirm them against the machine before fabrication.

Machine: John Deere 1910G Forwarder
Part number: F072580
Hose type: X371LT-8
Total length: 950 mm
Cut length: 876 mm
Left-end hydraulic fitting code: X10670-10-8-SMJIC 37° female swivel straight · 7/8-14 UNF · 1/2 inch / DN12 hoseSee fitting details
Right-end hydraulic fitting code: X13970-10-8Look up this code
Manual reference: PC13553, page 2

Hose assembly details

Part number: F072580
Hose type: X371LT-8
Total length: 950 mm
Cut length: 876 mm
Left fitting code: X10670-10-8-SM
Right fitting code: X13970-10-8
Application: 1910G Forwarder: Stage V / Tier 4, Fixed Cabin
Manual page: 2

Download manual
