Individual hose record

2V-8568 Hose Repair Specifications

Excavator · Caterpillar · CAT®235 · Control Lever

Finished length460 mm

Locate this hose

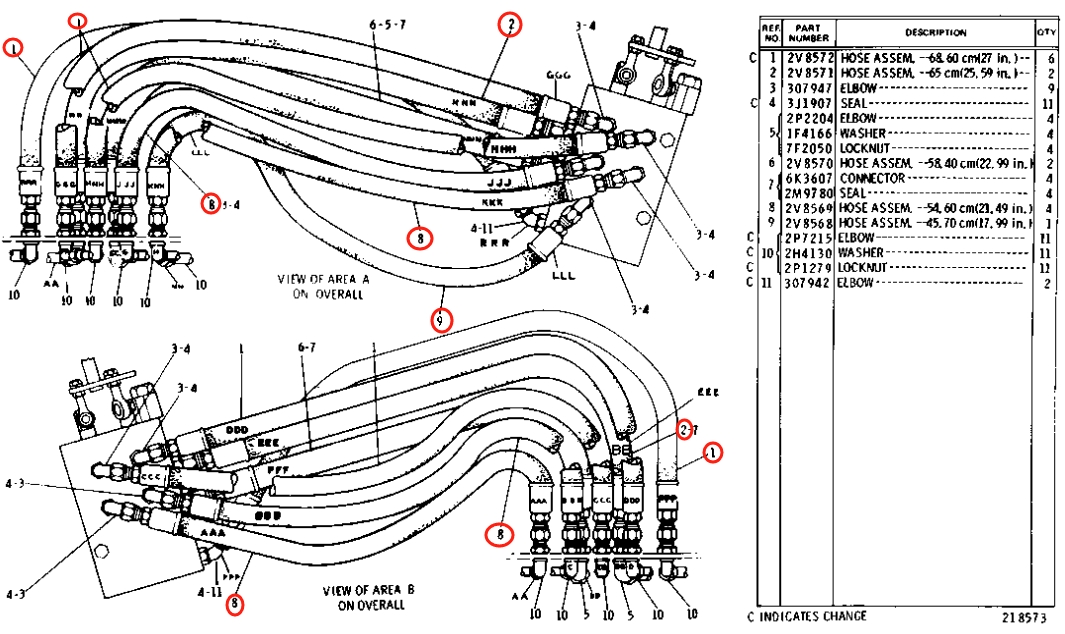

Installation diagram — Pipe No. 9

Locate Pipe No. 9 in the diagram, then confirm part number 2V-8568 before removing the hose.

Caterpillar CAT®235 installation diagram showing hydraulic hose 2V-8568 at Pipe No. 9 — Caterpillar CAT®235Part 2V-8568 · Pipe No. 9Open full-size diagram

Repair specifications

Part number: 2V-8568
Diagram pipe number: 9
Installation route: 右手柄~中转接头
Hose specification: DN10;2SN-6;33Mpa
Finished length: 460 mm
Working pressure: 33 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 9

8V-0536

Installation route: 右手柄~中转接头

Length: 460 mm
Specification: DN10;2SN-6;33Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
