Individual hose record

8U-0493 Hose Repair Specifications

Excavator · Caterpillar · CAT®213B · Boom Assembly

Finished length4,350 mm

Locate this hose

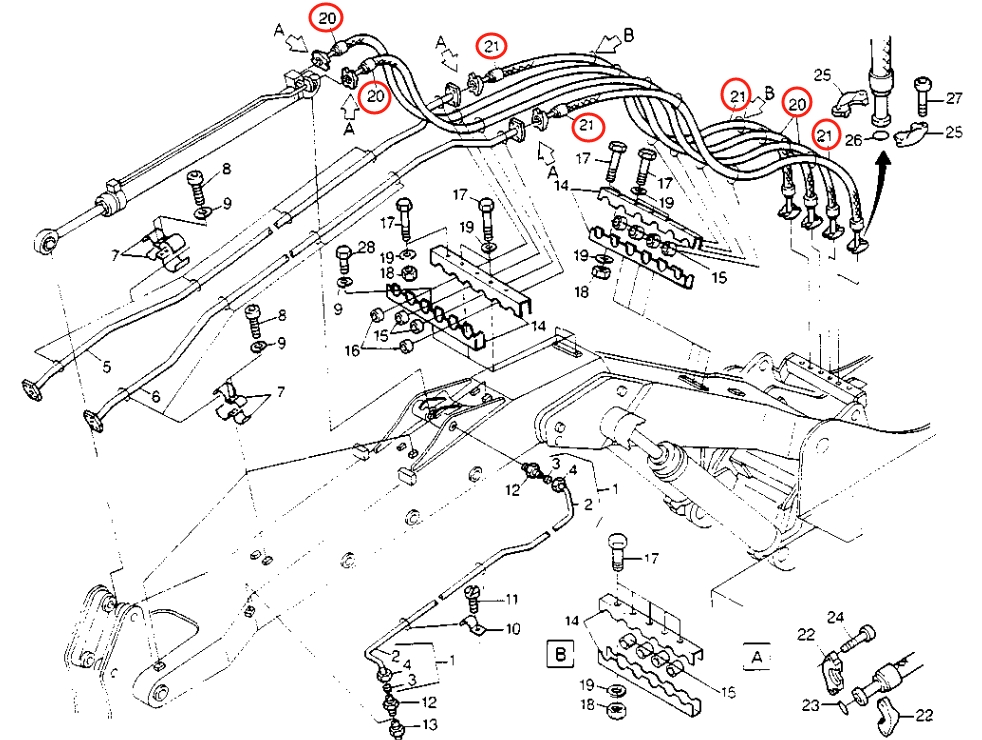

Installation diagram — Pipe No. 20

Locate Pipe No. 20 in the diagram, then confirm part number 8U-0493 before removing the hose.

Caterpillar CAT®213B installation diagram showing hydraulic hose 8U-0493 at Pipe No. 20 — Caterpillar CAT®213BPart 8U-0493 · Pipe No. 20Open full-size diagram

Repair specifications

Part number: 8U-0493
Diagram pipe number: 20
Installation route: 小臂油缸(分节油缸规格1)
Hose specification: DN19;4SP-12;35Mpa
Finished length: 4,350 mm
Working pressure: 35 MPa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Quantity: 2

Same system

Related Hoses

Diagram Pipe No. 2

8U-2658

Installation route: 小臂油缸(分节油缸规格4)

Length: 6,296 mm
Specification: DN8;-5;17.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 3

8U-0663

Installation route: 铲斗油缸~分流阀(小臂)

Length: 1,090 mm
Specification: DN19;4SP-12;35Mpa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

View full repair specifications

Diagram Pipe No. 2

8U-2664

Installation route: 小臂油缸(分节油缸规格3)

Length: 6,146 mm
Specification: DN8;-5;17.5Mpa
Left fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting: American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封

View full repair specifications

Diagram Pipe No. 8

8U-1071

Installation route: 大臂油缸

Length: 700 mm
Specification: DN19;4SP-12;35Mpa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

View full repair specifications

Diagram Pipe No. 5

8U-0504

Installation route: 小臂油缸

Length: 4,500 mm
Specification: DN19;4SP-12;35Mpa
Left fitting: Heavy-series flangeOriginal Chinese: 法兰-重型
Right fitting: Heavy-series flangeOriginal Chinese: 法兰-重型

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
