8U-2664 Hose Repair Specifications
Excavator · Caterpillar · CAT®213B · Boom Assembly
Finished length6,146 mm
Locate this hose

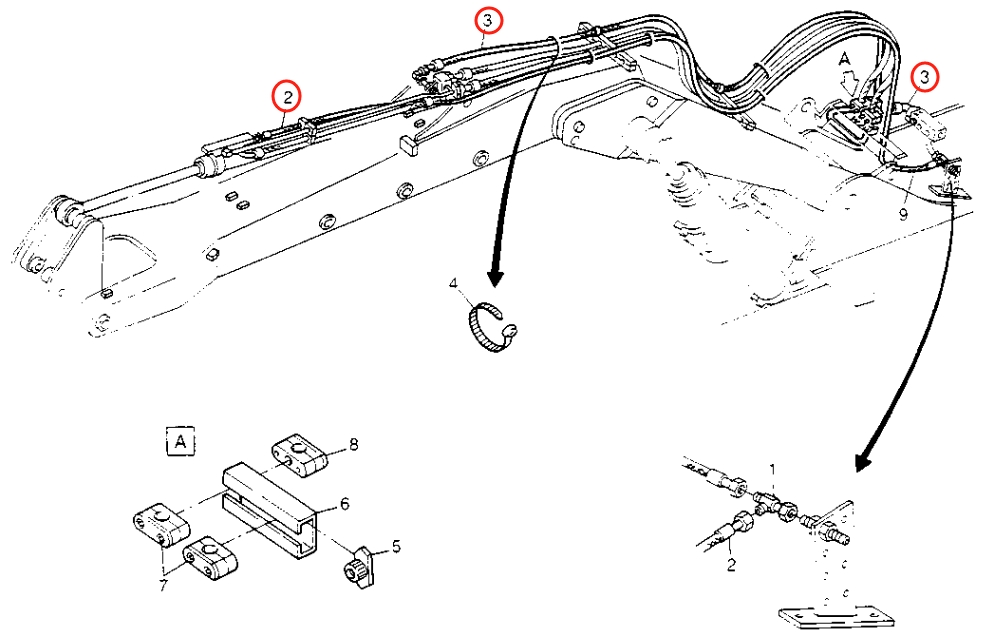

Installation diagram — Pipe No. 2
Locate Pipe No. 2 in the diagram, then confirm part number 8U-2664 before removing the hose.
Repair specifications
- Part number
- 8U-2664
- Diagram pipe number
- 2
- Installation route
- 小臂油缸(分节油缸规格3)
- Hose specification
- DN8;-5;17.5Mpa
- Finished length
- 6,146 mm
- Working pressure
- 17.5 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
