Individual hose record

194-0322 Hose Repair Specifications

Excavator · Caterpillar · CAT®312C · Swivel Joint

Finished length2,550 mm

Locate this hose

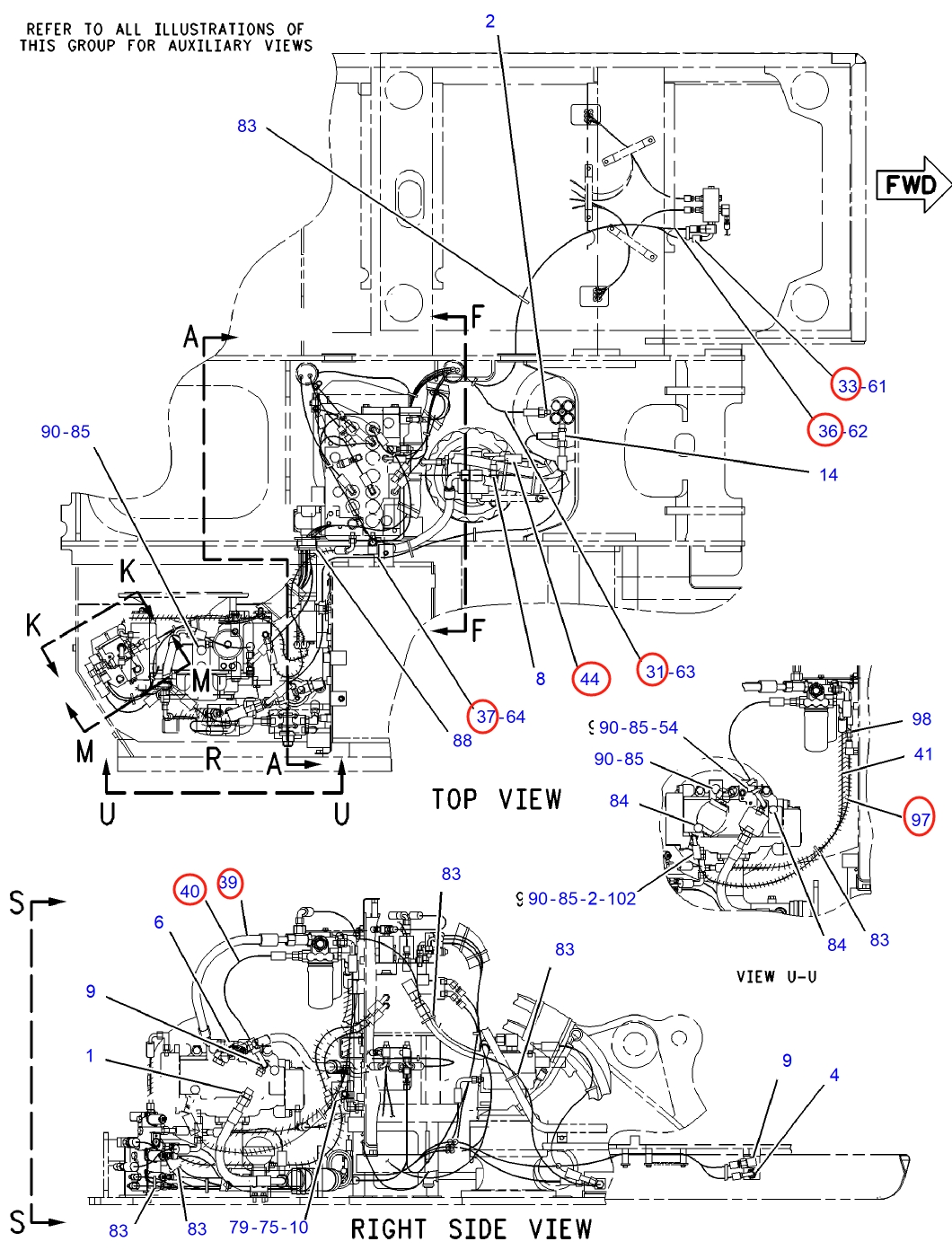

Installation diagram — Pipe No. 31

Locate Pipe No. 31 in the diagram, then confirm part number 194-0322 before removing the hose.

Caterpillar CAT®312C installation diagram showing hydraulic hose 194-0322 at Pipe No. 31
Caterpillar CAT®312CPart 194-0322 · Pipe No. 31Open full-size diagram

Repair specifications

Part number
194-0322
Diagram pipe number
31
Installation route
回转接头~
Hose specification
DN10;1SN-06;18MPa
Finished length
2,550 mm
Working pressure
18 MPa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
Quantity
1

Same system

Related Hoses

Diagram Pipe No. 20

179-7770

Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达

Length
1,800 mm
Specification
DN13;1SN-8;10.4Mpa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
View full repair specifications

Diagram Pipe No. 31

194-0322

Installation route: 回转接头~电磁阀

Length
2,550 mm
Specification
DN10;1SN-06;18MPa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
View full repair specifications

For reference only. Confirm the actual hose before fabrication.
