Hydraulic line repair data
Narrow the selection
Current machine
Use a system name, the number on the diagram, a part number, connection point, length, hose size, or fitting.
Technician notes

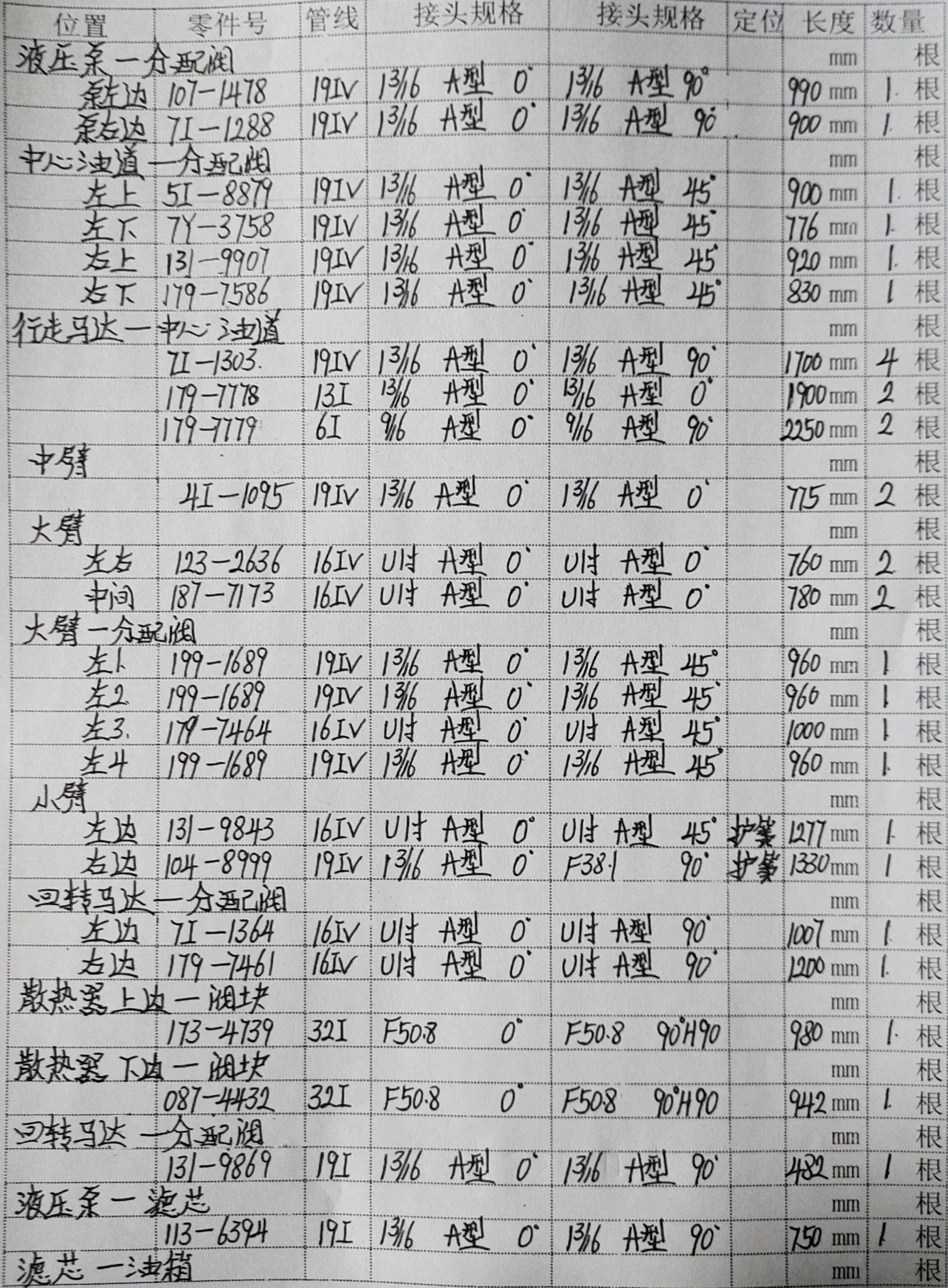

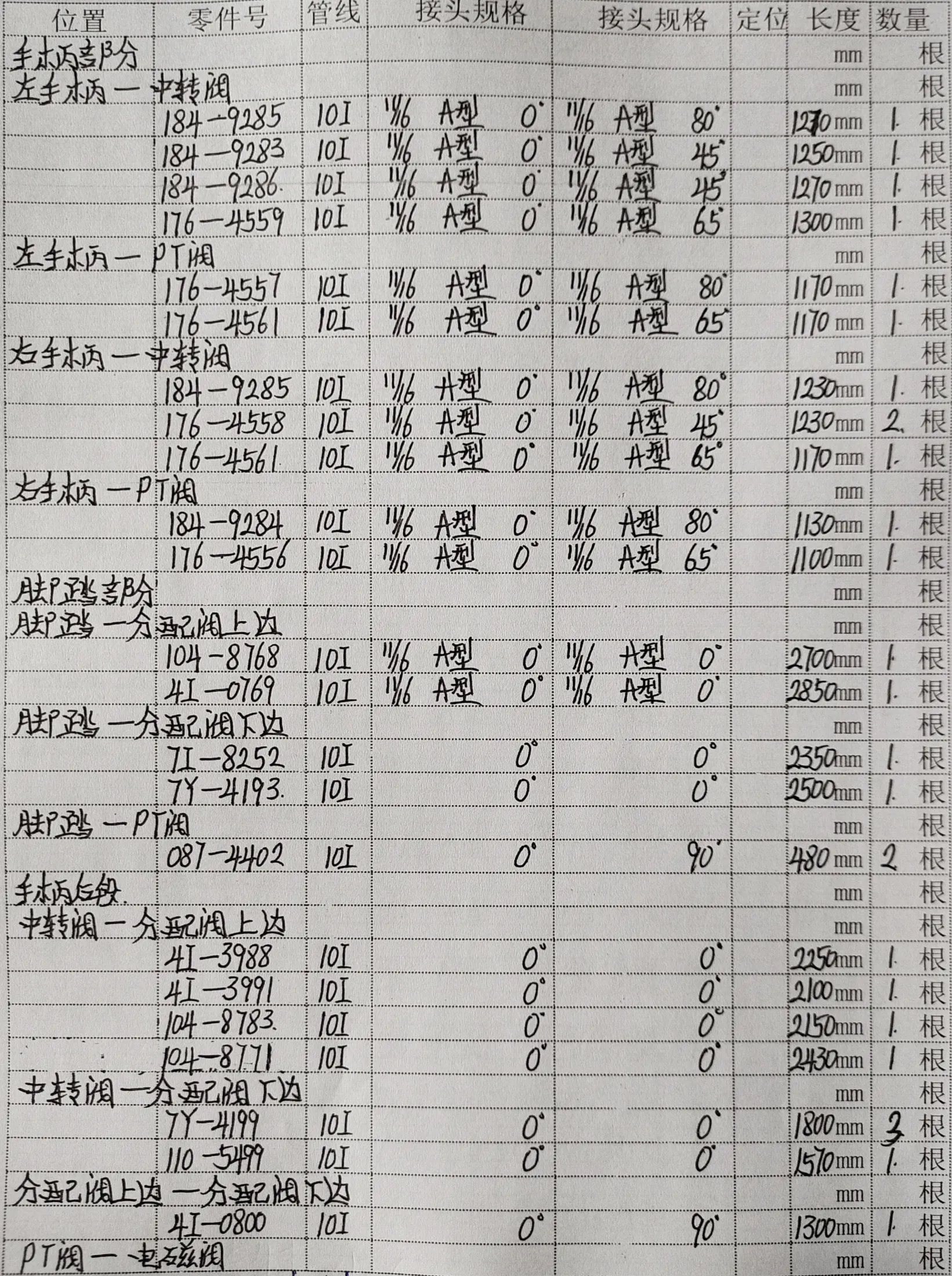

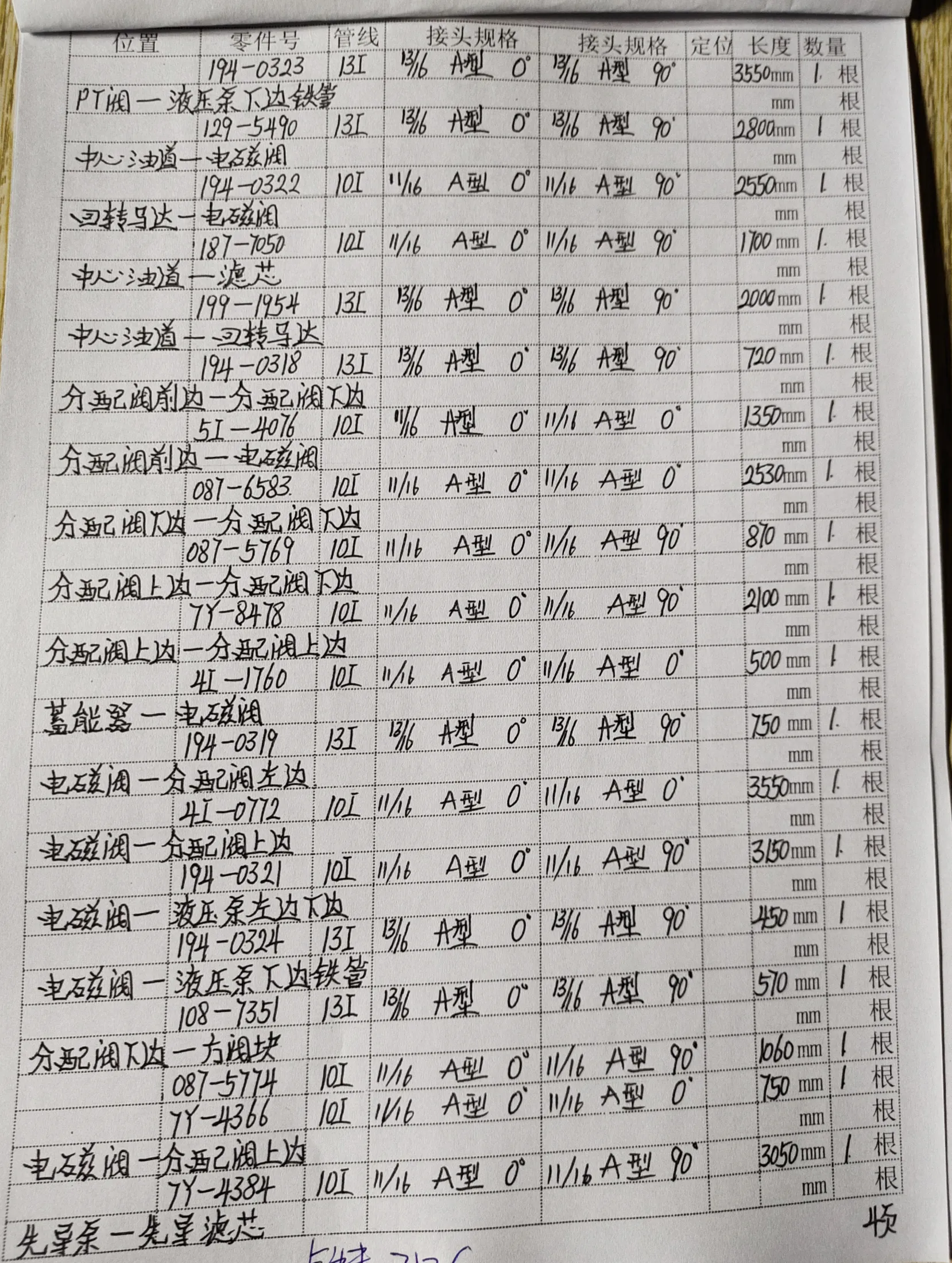

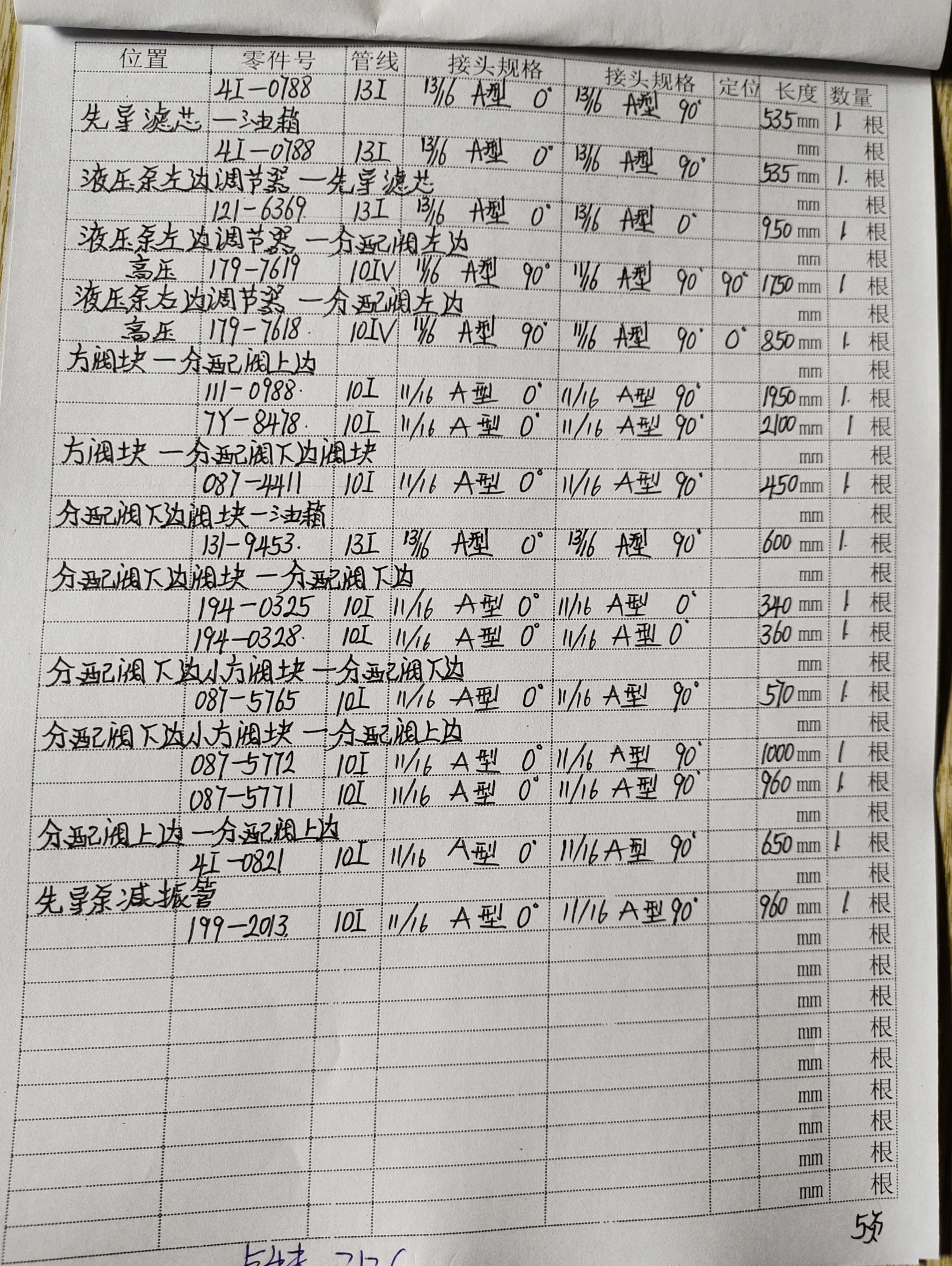

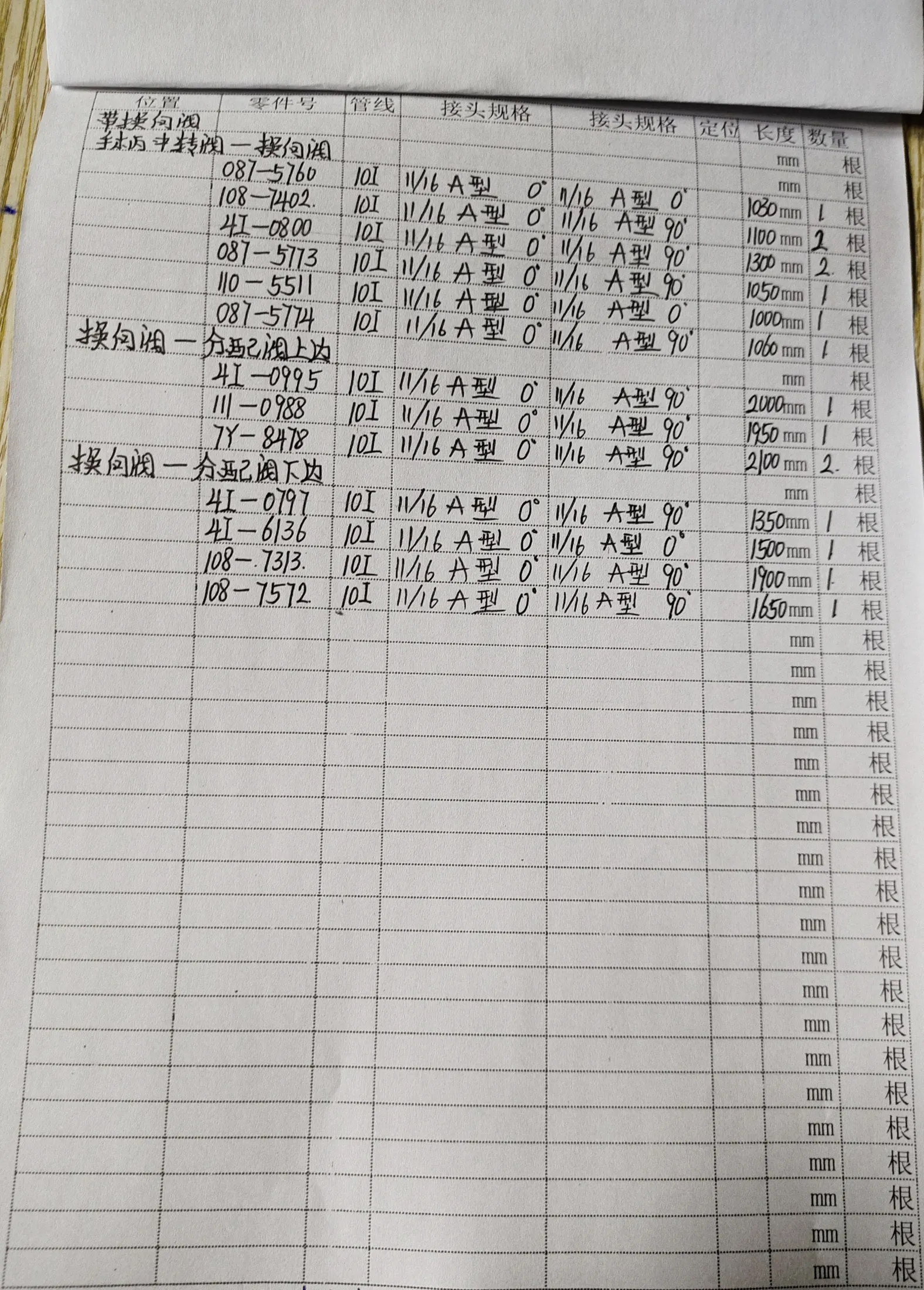

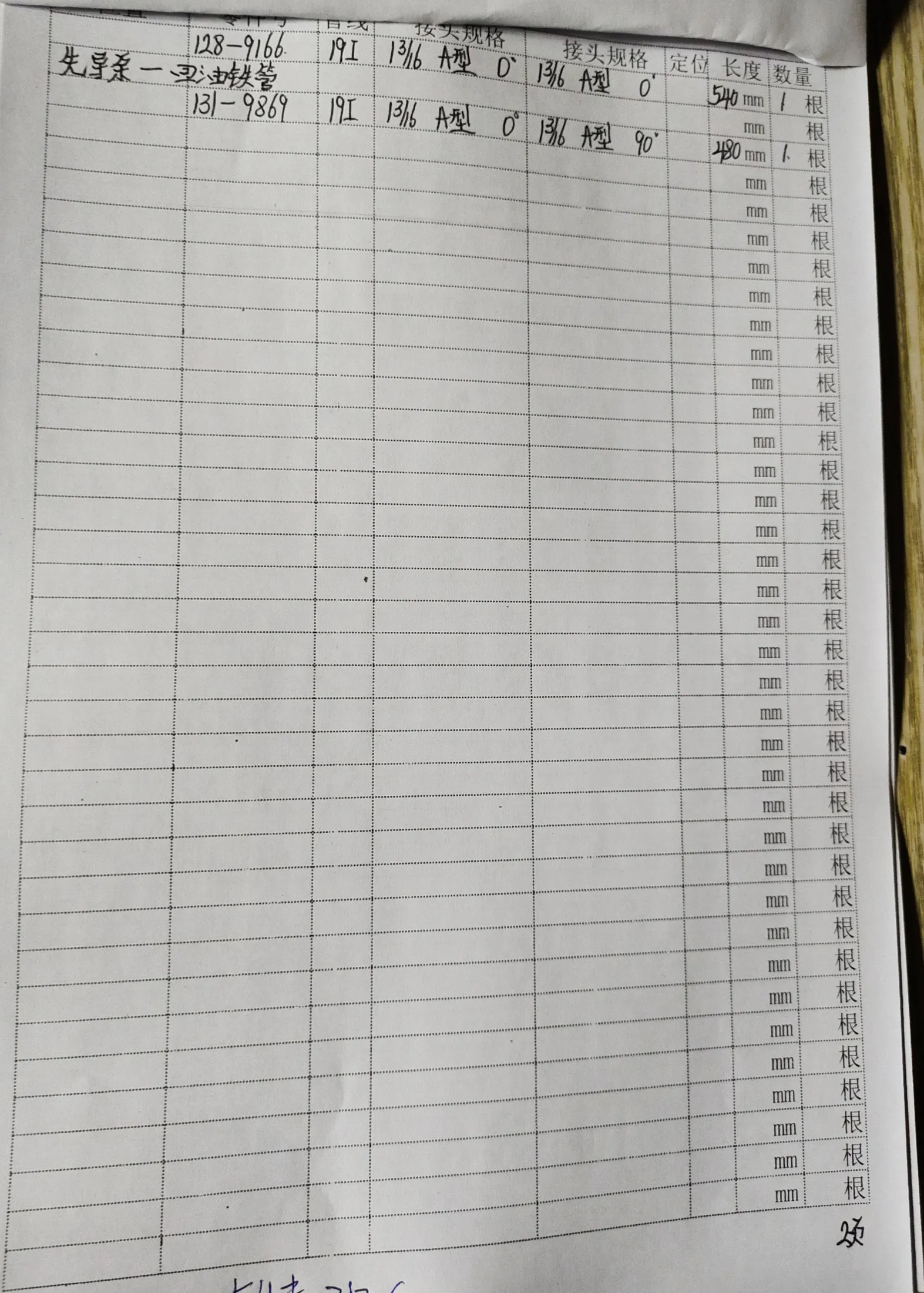

These notebook pages may help identify a hose or compare a recorded length. Confirm the final length, fittings, pressure rating, and routing on the machine before fabrication.
| Part number | Recorded length |
|---|---|
| 176-4557 | 1,170 mm |
| 187-7173 | 780 mm |
| 7Y-4193 | 2,500 mm |
| 087-6583 | 2,530 mm |
| 4I-0769 | 2,850 mm |
| 176-4561 | 1,170 mm |
| 4I-0772 | 3,550 mm |
| 199-1689 | 960 mm |
| 128-9166 | 540 mm |
| 173-4739 | 980 mm |
| 176-4558 | 1,230 mm |
| 087-4411 | 450 mm |
| 194-0325 | 340 mm |
| 176-4561 | 1,170 mm |
| 4I-0800 | 1,300 mm |
| 179-7461 | 1,200 mm |
Hose repair details
Showing 36 representative records. Return to the finder for a more specific search.
Diagram Pipe No. 20
Installation route: Swivel joint → travel motorOriginal Chinese: 回转接头~行走马达
No hose in this list matches those words. Clear the box or search another machine.
Based on current published data
Questions appear only when a published record or linked PDF page provides the answer.
The current published data covers 13 systems and 58 hose records. Systems with more listed records include: Control Valve (12 hoses), Attachments (9 hoses), Attachments – Quick Coupler (8 hoses), Control Lever (6 hoses), Boom Assembly (4 hoses), Hydraulic Pump (4 hoses).
The most frequent raw specifications in the current published records are: DN10;1SN-6;10.4Mpa (15 records), DN10;-6;10.3Mpa (8 records), DN10;1SN-6;15.7Mpa (6 records), DN6;2SN-4;40Mpa (4 records), DN10;2SN-6;33Mpa (3 records). Verify the specification together with length, pressure, and fitting details.
Each record keeps the left and right fitting descriptions separate. Current examples: 179-7770: left American female thread, flat-face seal; right American female thread, flat-face seal; 110-5499: left American female thread, flat-face seal; right American female thread, flat-face seal; 087-6584: left American female thread, flat-face seal; right American female thread, flat-face seal. Open the exact part-number or pipe-number record; do not swap ends based on appearance alone.
Yes. Current examples with a diagram pipe number are: Pipe No. 20 (179-7770), Pipe No. 35 (110-5499), Pipe No. 4 (087-6584), Pipe No. 7 (4I-1095). Open a record to compare its installation position with the linked manual page.
