Individual hose record

9232916 Hose Repair Specifications

Excavator · Hitachi · ZX180W · Solenoid Valve

Finished length3,500 mm

Locate this hose

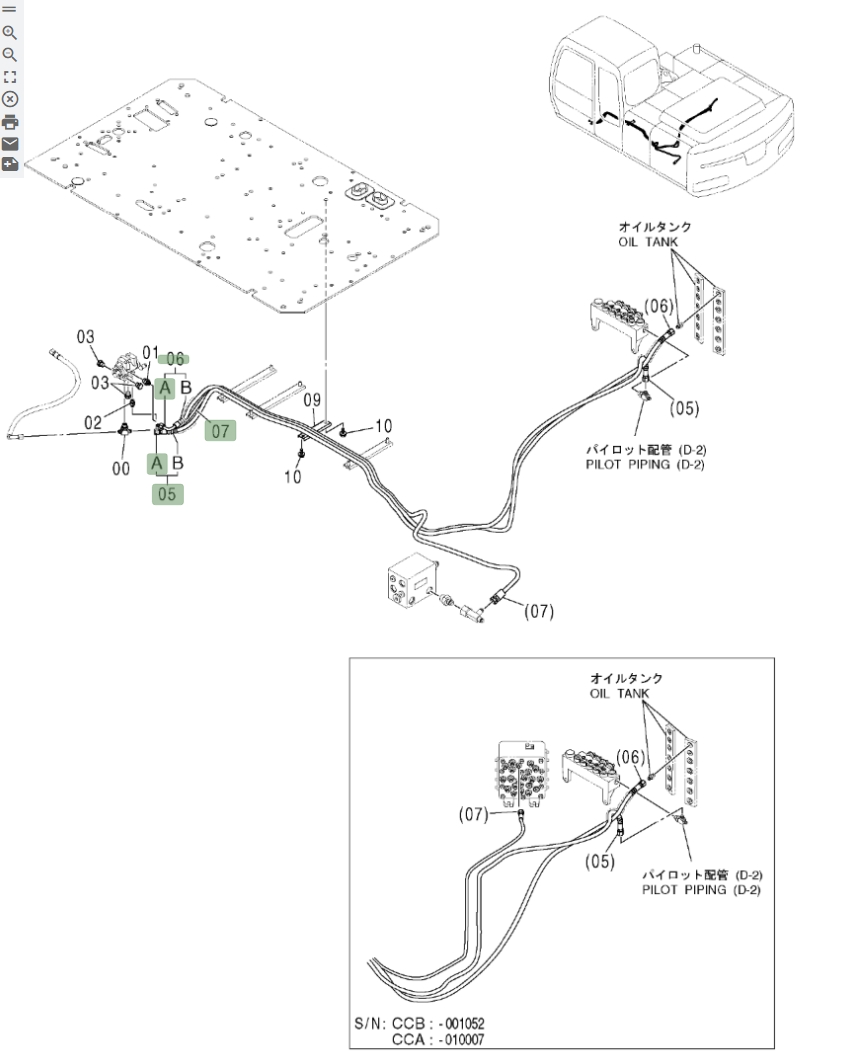

Installation diagram — Pipe No. 5

Locate Pipe No. 5 in the diagram, then confirm part number 9232916 before removing the hose.

Hitachi ZX180W installation diagram showing hydraulic hose 9232916 at Pipe No. 5 — Hitachi ZX180WPart 9232916 · Pipe No. 5Open full-size diagram

Repair specifications

Part number: 9232916
Diagram pipe number: 5
Installation route: 电磁阀~进回油阀
Hose specification: DN10;1SN-6;7Mpa
Finished length: 3,500 mm
Working pressure: 7 MPa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 5A

4488333

Installation route: 电磁阀~进回油阀

Length: 3,500 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 28

4401378

Installation route: 电磁阀(变速器)~吸油铁管

Length: 1,230 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

Diagram Pipe No. 5A

4615475

Installation route: 电磁阀~中转接头

Length: 770 mm
Specification: DN10;1SN-6;18MPa
Left fitting: 美制内螺纹74°内锥双六角
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 5

9235883

Installation route: 电磁阀~中转接头

Length: 770 mm
Specification: DN10;1SN-6;18MPa
Left fitting: 美制内螺纹74°内锥双六角
Right fitting: 90°美制内螺纹74°内锥

View full repair specifications

Diagram Pipe No. 10A

4449272

Installation route: 电磁阀(隔板)~蓄能器

Length: 2,100 mm
Specification: DN10;1SN-6;7Mpa
Left fitting: 美制内螺纹37°内锥
Right fitting: 美制内螺纹37°内锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
