Individual hose record

099-5589 Hose Repair Specifications

Excavator · Caterpillar · CAT®EL300B · Boom Assembly

Finished length1,600 mm

Hose repair card

Everything needed to identify and make this hose

Caterpillar CAT®EL300BPipe No. 17 · Part 099-5589

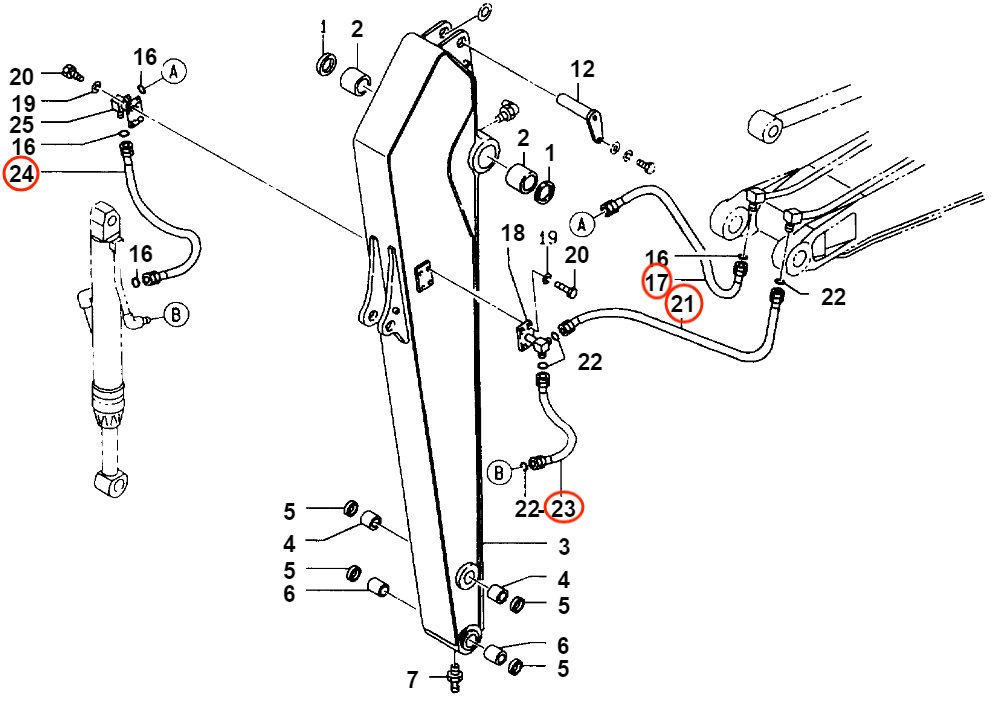

LocateInstallation diagram — Pipe No. 17
Caterpillar CAT®EL300B installation diagram showing hydraulic hose 099-5589 at Pipe No. 17
Make this hose099-5589
L = 1,600 mmDN25;6SH-16;42MpaL0°R0°
Finished length1,600 mm
Working pressure42 MPa
Hose specificationDN25;6SH-16;42Mpa
Quantity1
L0°

Left fittingAmerican female thread, flat-face sealFITTING · 0°View real fitting photos ↗

R0°

Right fittingAmerican female thread, flat-face sealFITTING · 0°View real fitting photos ↗

Route铲斗油缸右(后段)(加长臂)

Tap the card to enlarge it without leaving this page.

099-5589 hose repair card

Repair specifications

Part number
099-5589
Diagram pipe number
17
Installation route
铲斗油缸右(后段)(加长臂)
Hose specification
DN25;6SH-16;42Mpa
Finished length
1,600 mm
Working pressure
42 MPa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity
1

Same system

Related Hoses

Diagram Pipe No. 15

099-5589

Installation route: 铲斗油缸右

Length
1,600 mm
Specification
DN25;6SH-16;42Mpa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
View full repair specifications

Workshop guide

Finding the correct hydraulic hose for Caterpillar CAT®EL300B Boom Assembly

Start with the machine and route

For Caterpillar CAT®EL300B Boom Assembly, identify the exact model and hydraulic system on the machine first. A part number or diagram pipe number is the fastest way to narrow a replacement hose; if neither is visible, compare the installation route and the existing hose.

See all Caterpillar CAT®EL300B systems

Read the dimensions before cutting

Check whether a listed dimension is finished assembly length, hose-only length, or cut length. These are not interchangeable. Confirm hose specification and pressure rating, then compare both ends separately: thread, sealing seat, size, angle, and orientation.

Records to compare

  • 099-55891,600 mm · DN25;6SH-16;42Mpa · 铲斗油缸右(后段)(加长臂)

Use the drawing as a location check

Where an installation drawing or manual figure is available, match its callout to the part number and physical route. A hydraulic circuit diagram explains connections but does not show the exact routing of a hose on the machine. Take the old hose or clear end-fitting photographs to the workshop if any dimension is missing.

For reference only. Confirm the actual hose before fabrication.
