Individual hose record

7V-4304 Hose Repair Specifications

Excavator · Caterpillar · CAT®235 · Hydraulic Pump

Finished length833 mm

Locate this hose

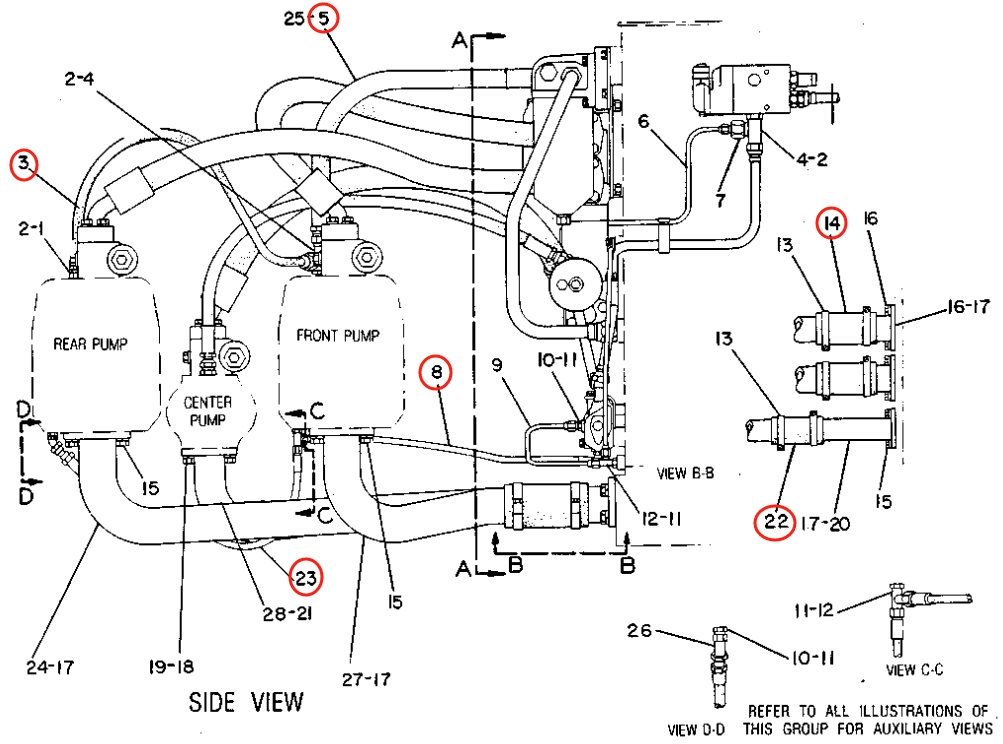

Installation diagram — Pipe No. 3

Locate Pipe No. 3 in the diagram, then confirm part number 7V-4304 before removing the hose.

Caterpillar CAT®235 installation diagram showing hydraulic hose 7V-4304 at Pipe No. 3 — Caterpillar CAT®235Part 7V-4304 · Pipe No. 3Open full-size diagram

Repair specifications

Part number: 7V-4304
Diagram pipe number: 3
Installation route: 液压泵左~液压泵右
Hose specification: DN19;1SN-12;8.7Mpa
Finished length: 833 mm
Working pressure: 8.7 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

For reference only. Confirm the actual hose before fabrication.
