Individual hose record
104-8768 Hose Repair Specifications
Excavator · Caterpillar · CAT®312C · Pedal
Finished length2,700 mm
Locate this hose

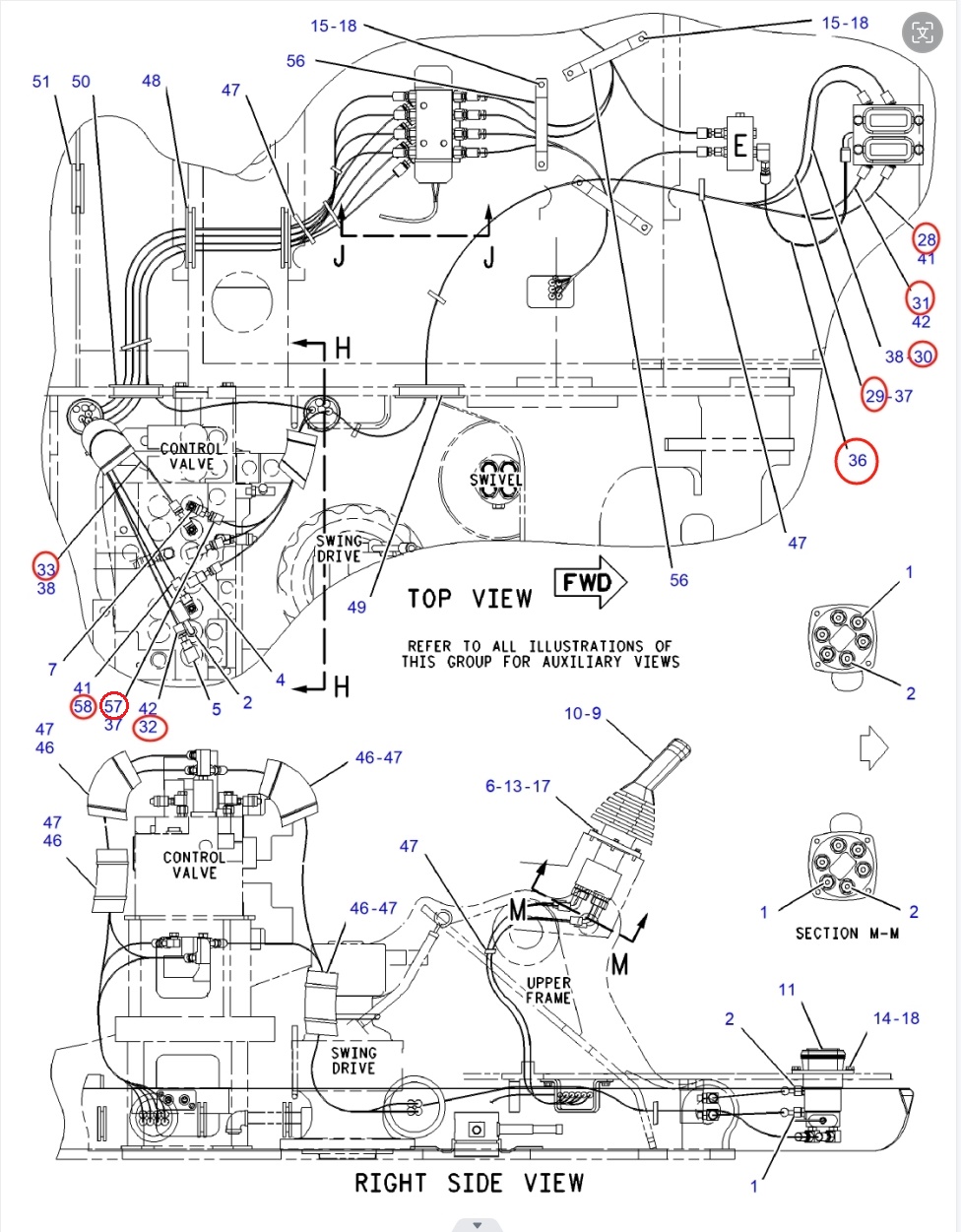

Installation diagram — Pipe No. 28
Locate Pipe No. 28 in the diagram, then confirm part number 104-8768 before removing the hose.
Repair specifications
- Part number
- 104-8768
- Diagram pipe number
- 28
- Installation route
- 行走踏板~分配阀
- Hose specification
- DN10;1SN-6;10.4Mpa
- Finished length
- 2,700 mm
- Working pressure
- 10.4 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
Same system
Related Hoses
For reference only. Confirm the actual hose before fabrication.
