Individual hose record

8K-4809 Hose Repair Specifications

Excavator · Caterpillar · CAT®225 · Attachments

Finished length1,375 mm

Locate this hose

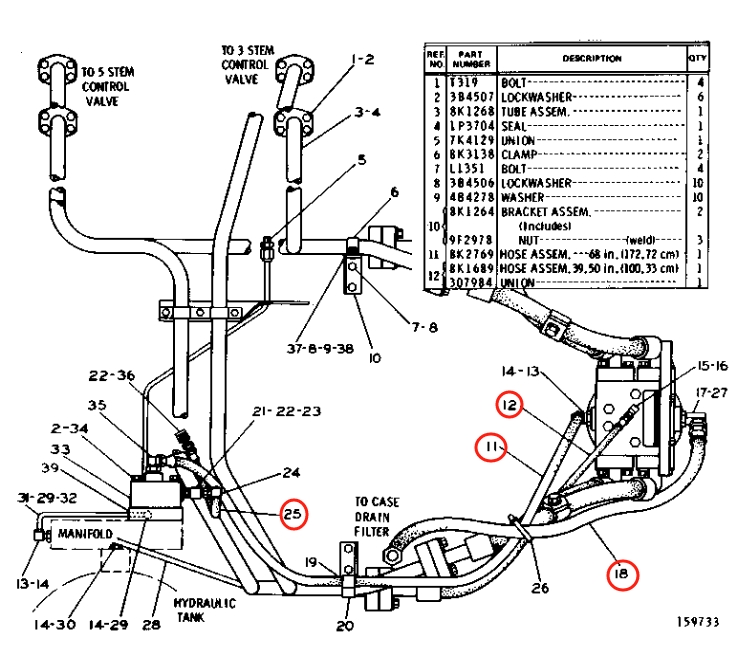

Installation diagram — Pipe No. 18

Locate Pipe No. 18 in the diagram, then confirm part number 8K-4809 before removing the hose.

Caterpillar CAT®225 installation diagram showing hydraulic hose 8K-4809 at Pipe No. 18 — Caterpillar CAT®225Part 8K-4809 · Pipe No. 18Open full-size diagram

Repair specifications

Part number: 8K-4809
Diagram pipe number: 18
Installation route: 行走马达~壳体排放过滤器
Hose specification: DN19;1SN-12;8.7Mpa
Finished length: 1,375 mm
Working pressure: 8.7 MPa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥
Quantity: 1

Same system

Related Hoses

Diagram Pipe No. 4

8K-0800

Installation route: 铲斗油缸~先导阀

Length: 894 mm
Specification: DN13;1SN-8;14Mpa
Left fitting: 美制内螺纹37°锥
Right fitting: 美制内螺纹37°锥

View full repair specifications

For reference only. Confirm the actual hose before fabrication.
