Individual hose record
350-0833 Hose Repair Specifications
Excavator · Caterpillar · CAT®316F · Hydraulic Pump
Finished length410 mm
Locate this hose

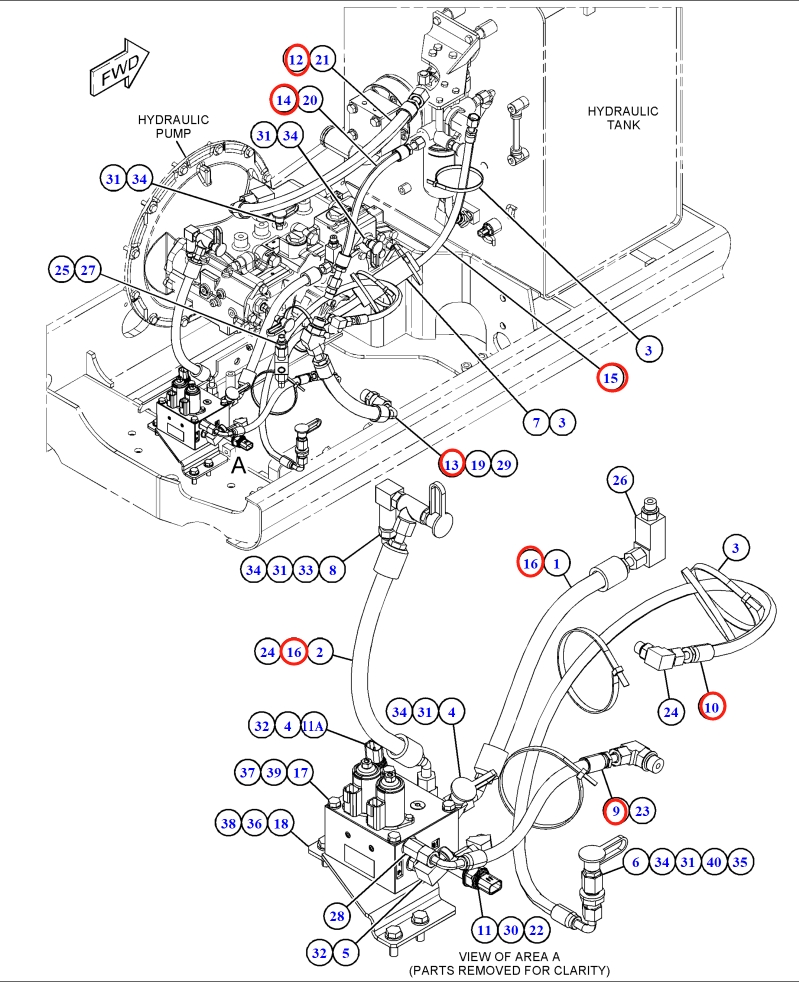

Installation diagram — Pipe No. 14
Locate Pipe No. 14 in the diagram, then confirm part number 350-0833 before removing the hose.
Repair specifications
- Part number
- 350-0833
- Diagram pipe number
- 14
- Installation route
- 液压泵~液压油过滤器
- Hose specification
- DN13;1SN-8;10.4Mpa
- Finished length
- 410 mm
- Working pressure
- 10.4 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
Same system
Related Hoses
- Length
- 2,850 mm
- Specification
- DN13;1SN-8;10.4Mpa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Length
- 670 mm
- Specification
- DN19;1SN-12;8.7Mpa
- Left fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Length
- 420 mm
- Specification
- DN10;6SH-6;42Mpa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Length
- 430 mm
- Specification
- DN10;6SH-6;42Mpa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 45°美制内螺纹平面密封
- Length
- 362 mm
- Specification
- DN19;1SN-12;8.7Mpa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Length
- 704 mm
- Specification
- DN25;1SN-16;7Mpa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Length
- 960 mm
- Specification
- DN10;1SN-6;10.4Mpa
- Left fitting
- 90° elbow, American female thread, flat-face sealOriginal Chinese: 90°美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Workshop guide
Finding the correct hydraulic hose for Caterpillar CAT®316F Hydraulic Pump
Start with the machine and route
For Caterpillar CAT®316F Hydraulic Pump, identify the exact model and hydraulic system on the machine first. A part number or diagram pipe number is the fastest way to narrow a replacement hose; if neither is visible, compare the installation route and the existing hose.
Read the dimensions before cutting
Check whether a listed dimension is finished assembly length, hose-only length, or cut length. These are not interchangeable. Confirm hose specification and pressure rating, then compare both ends separately: thread, sealing seat, size, angle, and orientation.
Records to compare
- 350-0833410 mm · DN13;1SN-8;10.4Mpa · 液压泵~液压油过滤器
Use the drawing as a location check
Where an installation drawing or manual figure is available, match its callout to the part number and physical route. A hydraulic circuit diagram explains connections but does not show the exact routing of a hose on the machine. Take the old hose or clear end-fitting photographs to the workshop if any dimension is missing.
For reference only. Confirm the actual hose before fabrication.
