F046606 Hydraulic Hose Specifications
Forestry Machine · John Deere · 1510G Forwarder
Total length600 mm

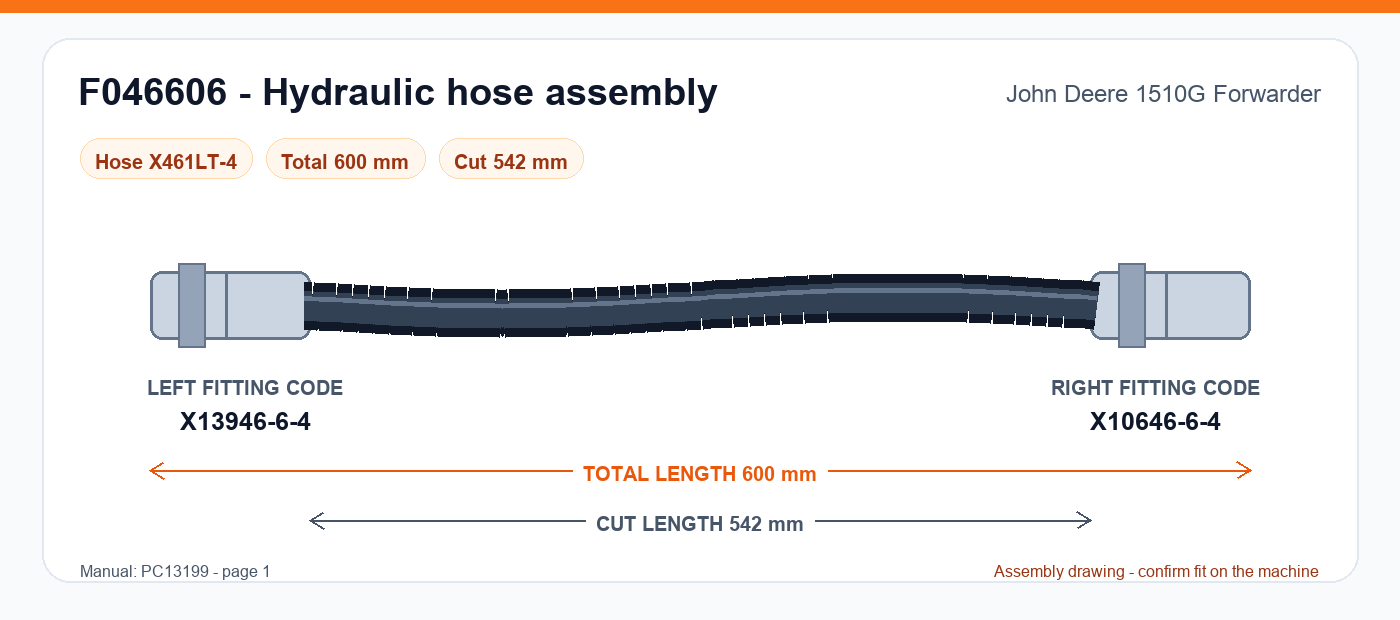

Hose drawing
Hose assembly drawing
Check the total length and both fitting codes before fabrication.
Repair measurements
These text values can be translated and copied. Confirm them against the machine before fabrication.
- Machine
- John Deere 1510G Forwarder
- Part number
- F046606
- Hose type
- X461LT-4
- Total length
- 600 mm
- Cut length
- 542 mm
- Left-end hydraulic fitting code
- X13946-6-4Look up this code
- Right-end hydraulic fitting code
- X10646-6-4Look up this code
- Manual reference
- PC13199, page 1
Hose assembly details
- Part number
- F046606
- Hose type
- X461LT-4
- Total length
- 600 mm
- Cut length
- 542 mm
- Left fitting code
- X13946-6-4
- Right fitting code
- X10646-6-4
- Application
- 1510G Forwarder: Final Tier 4, Fixed Cabin
- Manual page
- 1
