102-8274 Hydraulic Hose Replacement Specifications

Excavator · Caterpillar · CAT®311C · Control Lever

Finished length510 mm

Hose repair card

Everything needed to identify and make this hose

Caterpillar CAT®311CPipe No. 1 · Part 102-8274

LocateInstallation diagram — Pipe No. 1

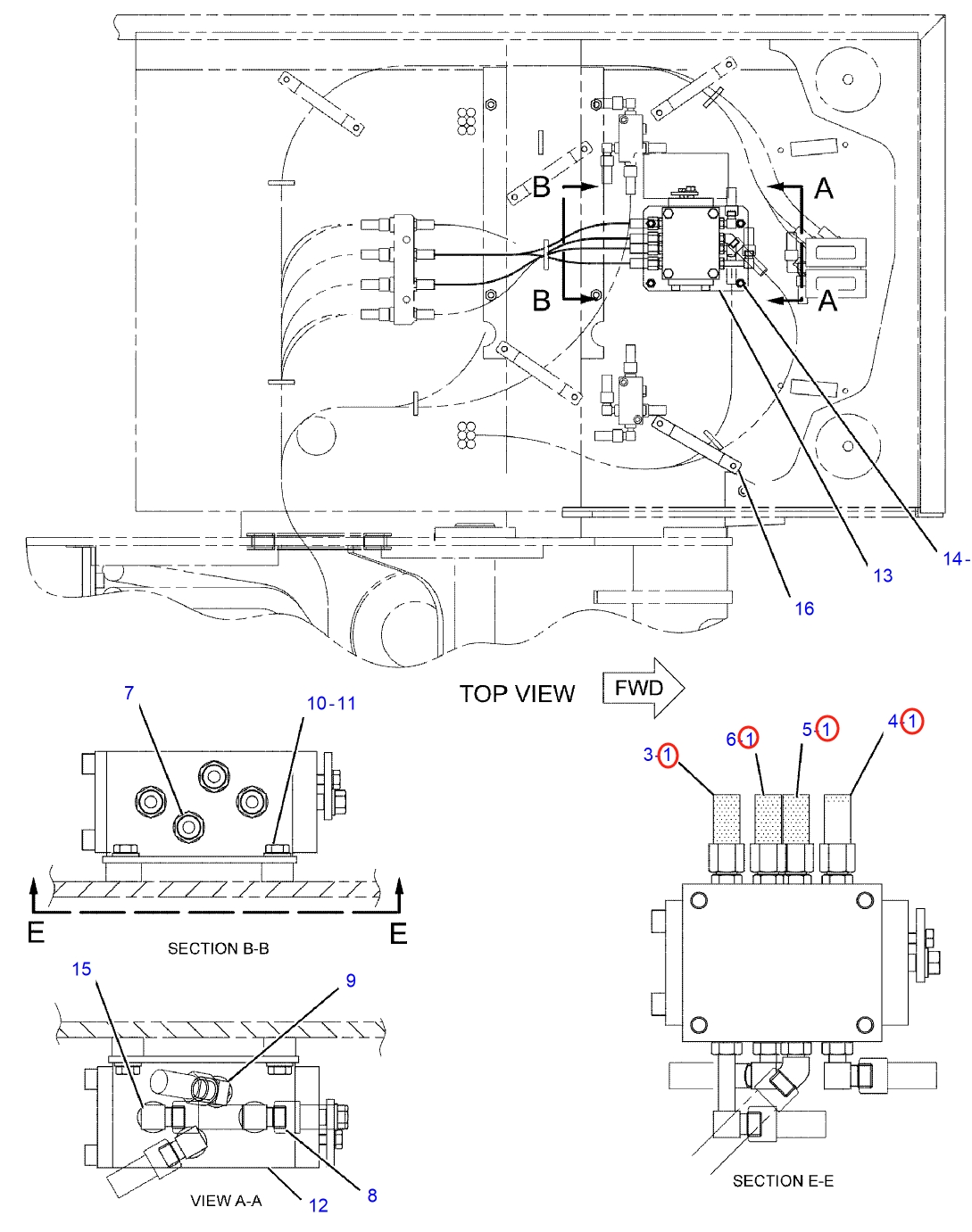

Caterpillar CAT®311C installation diagram showing hydraulic hose 102-8274 at Pipe No. 1
Make this hose102-8274
L = 510 mmDN10;1SN-6;10.4MpaL0°R0°
Finished length510 mm
Working pressure10.4 MPa
Hose specificationDN10;1SN-6;10.4Mpa
Quantity4
L0°

Left fittingAmerican female thread, flat-face sealFITTING · 0°View real fitting photos ↗

R0°

Right fittingAmerican female thread, flat-face sealFITTING · 0°View real fitting photos ↗

RouteInstallation route — English review pending

Tap the card to enlarge it without leaving this page.

102-8274 hose repair card

Repair specifications

Part number
102-8274
Diagram pipe number
1
Installation route
Installation route — English review pendingOriginal Chinese: 中转接头~先导阀(驾驶室)
Hose specification
DN10;1SN-6;10.4Mpa
Finished length
510 mm
Working pressure
10.4 MPa
Left fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Right fitting
American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
Quantity
4
