Individual hose record
581-6660 Hose Repair Specifications
Excavator · Caterpillar · CAT®315 GC · Attachments – Lock Valve
Finished length1,470 mm
Locate this hose

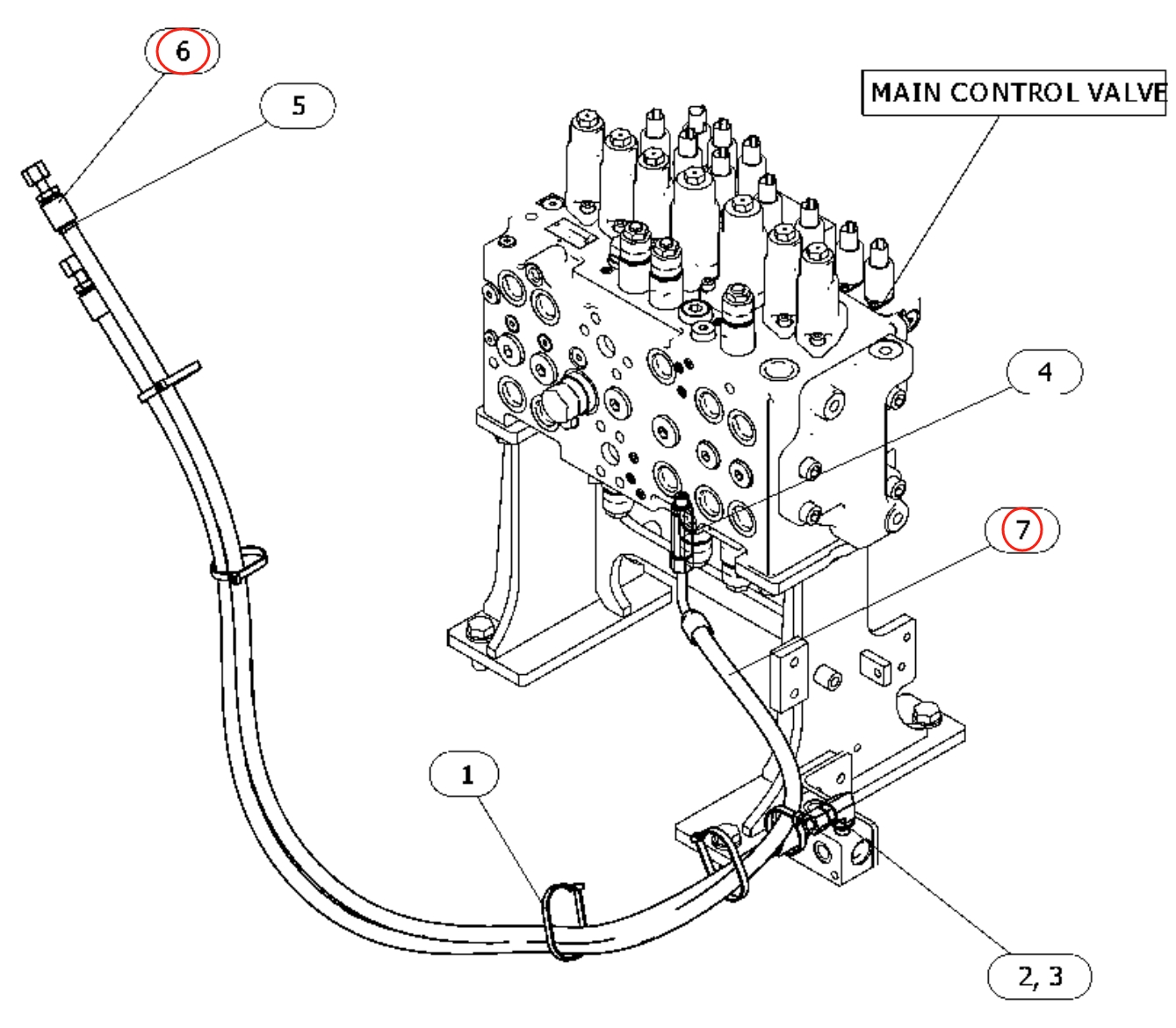

Installation diagram — Pipe No. 6
Locate Pipe No. 6 in the diagram, then confirm part number 581-6660 before removing the hose.
Repair specifications
- Part number
- 581-6660
- Diagram pipe number
- 6
- Installation route
- 大臂(小臂油缸锁止阀)~过渡阀块(分配阀下)
- Hose specification
- DN10;1SN-6;10.4Mpa
- Finished length
- 1,470 mm
- Working pressure
- 10.4 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 1
Same system
Related Hoses
For reference only. Confirm the actual hose before fabrication.
