Individual hose record
585-2785 Hose Repair Specifications
Excavator · Caterpillar · CAT®315 GC · Attachments – Lock Valve
Finished length4,352 mm
Locate this hose

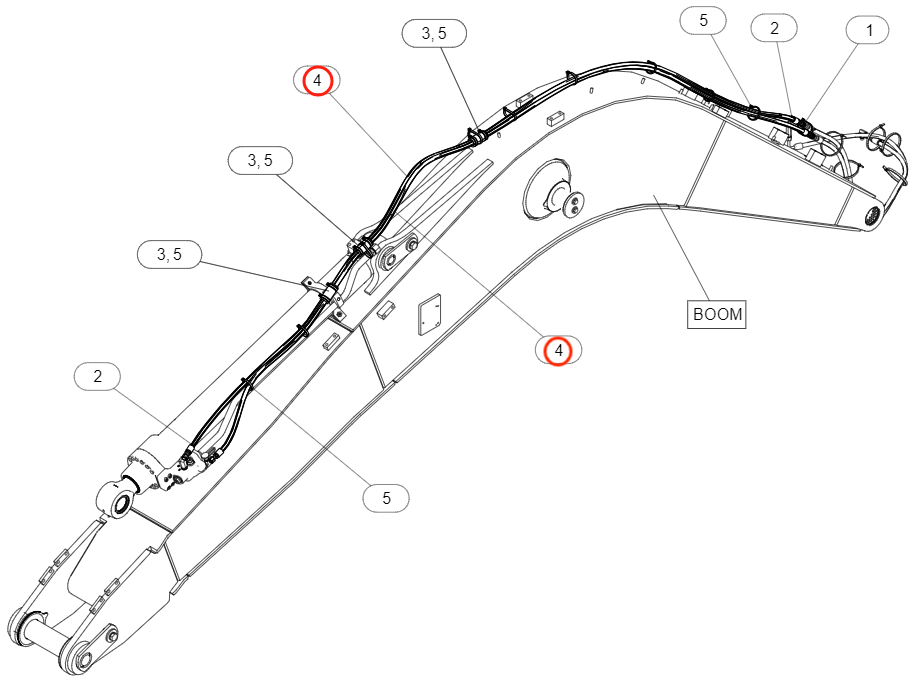

Installation diagram — Pipe No. 4
Locate Pipe No. 4 in the diagram, then confirm part number 585-2785 before removing the hose.
Repair specifications
- Part number
- 585-2785
- Diagram pipe number
- 4
- Installation route
- 小臂油缸锁止阀
- Hose specification
- DN10;1SN-6;10.4Mpa
- Finished length
- 4,352 mm
- Working pressure
- 10.4 MPa
- Left fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Right fitting
- American female thread, flat-face sealOriginal Chinese: 美制内螺纹平面密封
- Quantity
- 2
