Individual hose record
8U-4255 Hose Repair Specifications
Excavator · Caterpillar · CAT®212 · Attachments – Quick Coupler
Locate this hose

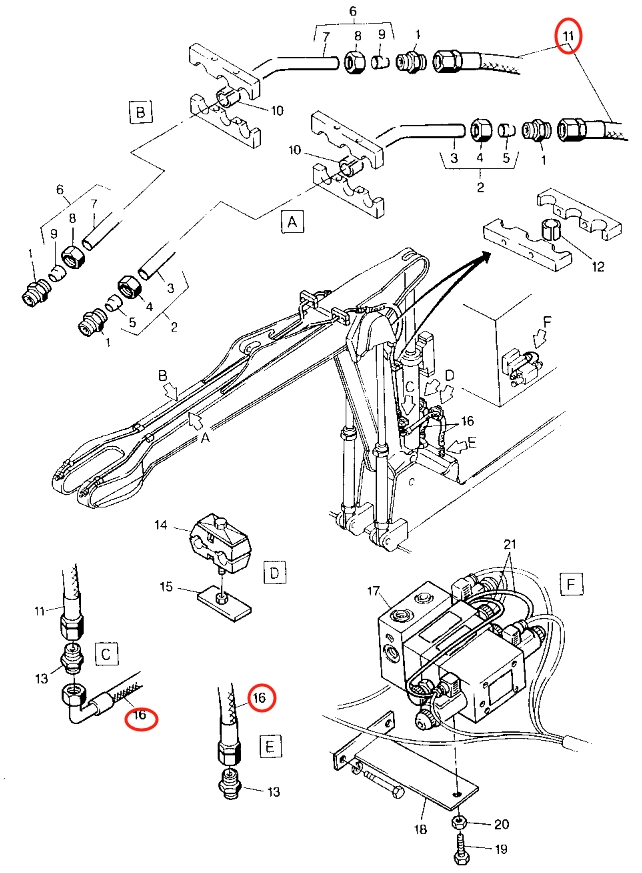

Installation diagram — Pipe No. 11
Locate Pipe No. 11 in the diagram, then confirm part number 8U-4255 before removing the hose.
Repair specifications
- Part number
- 8U-4255
- Diagram pipe number
- 11
- Installation route
- 小臂快换管
- Hose specification
- DN13;6SH-8;42Mpa
- Finished length
- 1,650 mm
- Working pressure
- 42 MPa
- Left fitting
- 公制内螺纹24°锥带O形圈-重型
- Right fitting
- 公制内螺纹24°锥带O形圈-重型
- Quantity
- 2
Workshop guide
Finding the correct hydraulic hose for Caterpillar CAT®212 Attachments – Quick Coupler
Start with the machine and route
For Caterpillar CAT®212 Attachments – Quick Coupler, identify the exact model and hydraulic system on the machine first. A part number or diagram pipe number is the fastest way to narrow a replacement hose; if neither is visible, compare the installation route and the existing hose.
Read the dimensions before cutting
Check whether a listed dimension is finished assembly length, hose-only length, or cut length. These are not interchangeable. Confirm hose specification and pressure rating, then compare both ends separately: thread, sealing seat, size, angle, and orientation.
Records to compare
- 8U-42551,650 mm · DN13;6SH-8;42Mpa · 小臂快换管
Use the drawing as a location check
Where an installation drawing or manual figure is available, match its callout to the part number and physical route. A hydraulic circuit diagram explains connections but does not show the exact routing of a hose on the machine. Take the old hose or clear end-fitting photographs to the workshop if any dimension is missing.
For reference only. Confirm the actual hose before fabrication.
